CSA200 Series

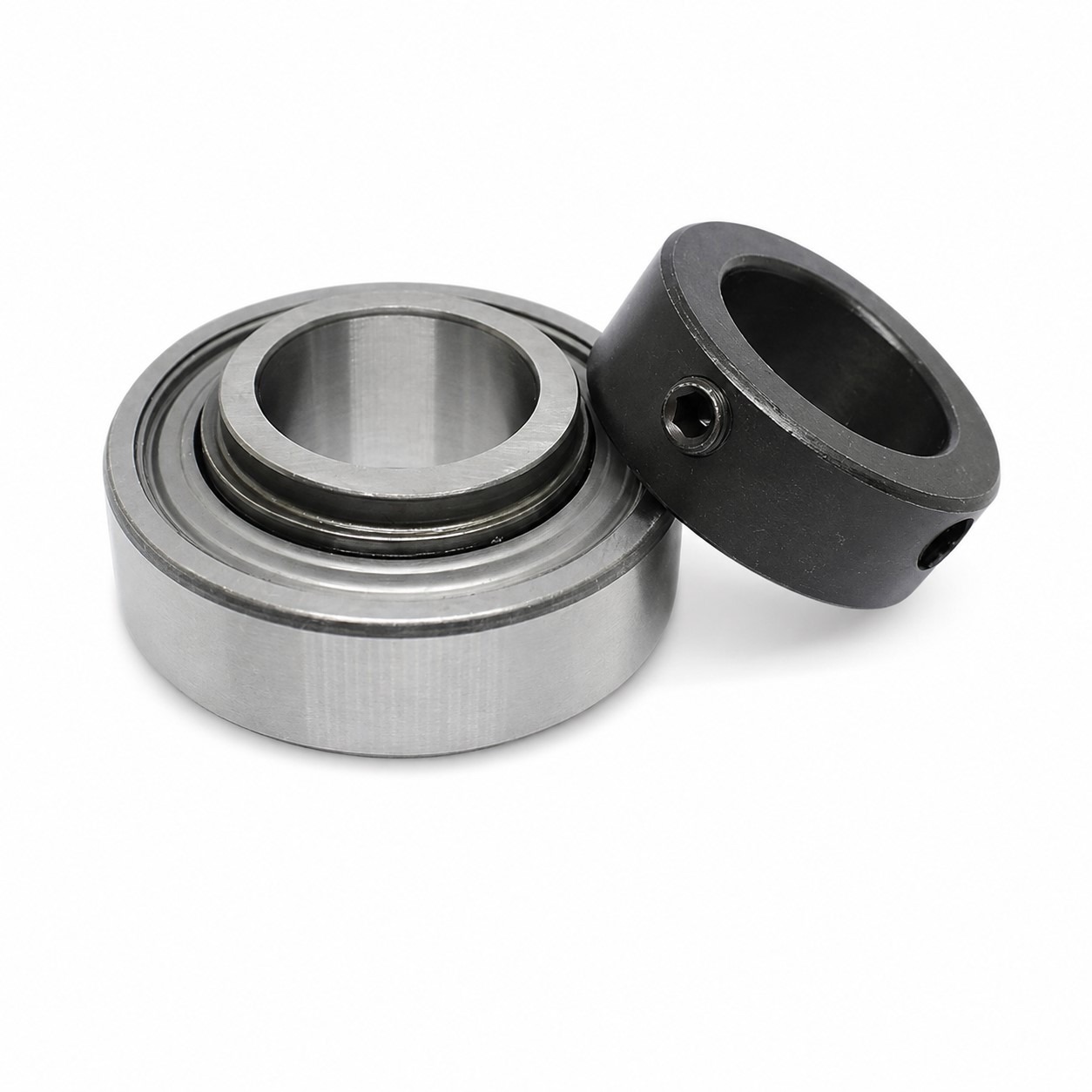

The CSA200 series is a narrow inner ring insert bearing with a cylindrical outer race and eccentric locking collar, fitting directly into cylindrical-bore and cartridge housings. Supplied under the NBR economy brand, it is available in metric and inch bores with dust seals both sides.
Showing all 16 results
Images are for illustrative purposes only. Actual product may vary.
-
CSA201-8
NBR CSA201-8 Insert Bearing (Locking Collar, Cyl OD) 1/2″ (12.7 mm) Bore
1/2" (12.7 mm) × 40 mm (ID × OD)
NBRProduct successfully added to the Quote List
-
CSA202-10
NBR CSA202-10 Insert Bearing (Locking Collar, Cyl OD) 5/8″ (15.88 mm) Bore
5/8" (15.88 mm) × 40 mm (ID × OD)
NBRProduct successfully added to the Quote List
-
CSA203
NBR CSA203 Insert Bearing (Locking Collar, Cyl OD) 17 mm Bore
17 mm × 40 mm (ID × OD)
NBRProduct successfully added to the Quote List
-
CSA204
NBR CSA204 Insert Bearing (Locking Collar, Cyl OD) 20 mm Bore
20 mm × 47 mm (ID × OD)
NBRProduct successfully added to the Quote List
-
CSA204-12
NBR CSA204-12 Insert Bearing (Locking Collar, Cyl OD) 3/4″ (19.05 mm) Bore
3/4" (19.05 mm) × 47 mm (ID × OD)
NBRProduct successfully added to the Quote List
-
CSA205
NBR CSA205 Insert Bearing (Locking Collar, Cyl OD) 25 mm Bore
25 mm × 52 mm (ID × OD)
NBRProduct successfully added to the Quote List
-
CSA205-14
NBR CSA205-14 Insert Bearing (Locking Collar, Cyl OD) 7/8″ (22.22 mm) Bore
7/8" (22.22 mm) × 52 mm (ID × OD)
NBRProduct successfully added to the Quote List
-
CSA205-16
NBR CSA205-16 Insert Bearing (Locking Collar, Cyl OD) 1″ (25.4 mm) Bore
1" (25.4 mm) × 52 mm (ID × OD)
NBRProduct successfully added to the Quote List
-
CSA206
NBR CSA206 Insert Bearing (Locking Collar, Cyl OD) 30 mm Bore
30 mm × 62 mm (ID × OD)
NBRProduct successfully added to the Quote List
-
CSA206-18
NBR CSA206-18 Insert Bearing (Locking Collar, Cyl OD) 1 1/8″ (28.57 mm) Bore
1 1/8" (28.57 mm) × 62 mm (ID × OD)
NBRProduct successfully added to the Quote List
-
CSA206-20
NBR CSA206-20 Insert Bearing (Locking Collar, Cyl OD) 1 1/4″ (31.75 mm) Bore
1 1/4" (31.75 mm) × 62 mm (ID × OD)
NBRProduct successfully added to the Quote List
-
CSA207
NBR CSA207 Insert Bearing (Locking Collar, Cyl OD) 35 mm Bore
35 mm × 72 mm (ID × OD)
NBRProduct successfully added to the Quote List
-
CSA207-20
NBR CSA207-20 Insert Bearing (Locking Collar, Cyl OD) 1 1/4″ (31.75 mm) Bore
1 1/4" (31.75 mm) × 72 mm (ID × OD)
NBRProduct successfully added to the Quote List
-
CSA207-22
NBR CSA207-22 Insert Bearing (Locking Collar, Cyl OD) 1 3/8″ (34.92 mm) Bore
1 3/8" (34.92 mm) × 72 mm (ID × OD)
NBRProduct successfully added to the Quote List
-
CSA208
NBR CSA208 Insert Bearing (Locking Collar, Cyl OD) 40 mm Bore
40 mm × 80 mm (ID × OD)
NBRProduct successfully added to the Quote List
-
CSA208-24
NBR CSA208-24 Insert Bearing (Locking Collar, Cyl OD) 1 1/2″ (38.1 mm) Bore
1 1/2" (38.1 mm) × 80 mm (ID × OD)
NBRProduct successfully added to the Quote List
Showing all 16 results
