Hydraulic Rod Ends
Heavy-duty rod ends designed for hydraulic and pneumatic cylinders, built to carry high alternating loads while accommodating misalignment. Available in weld-on, dowel-pin, female-clamped and lubricated types to suit cylinder rod and clevis mounting.
Showing 1–24 of 43 results
Images are for illustrative purposes only. Actual product may vary.
-
SF20ES

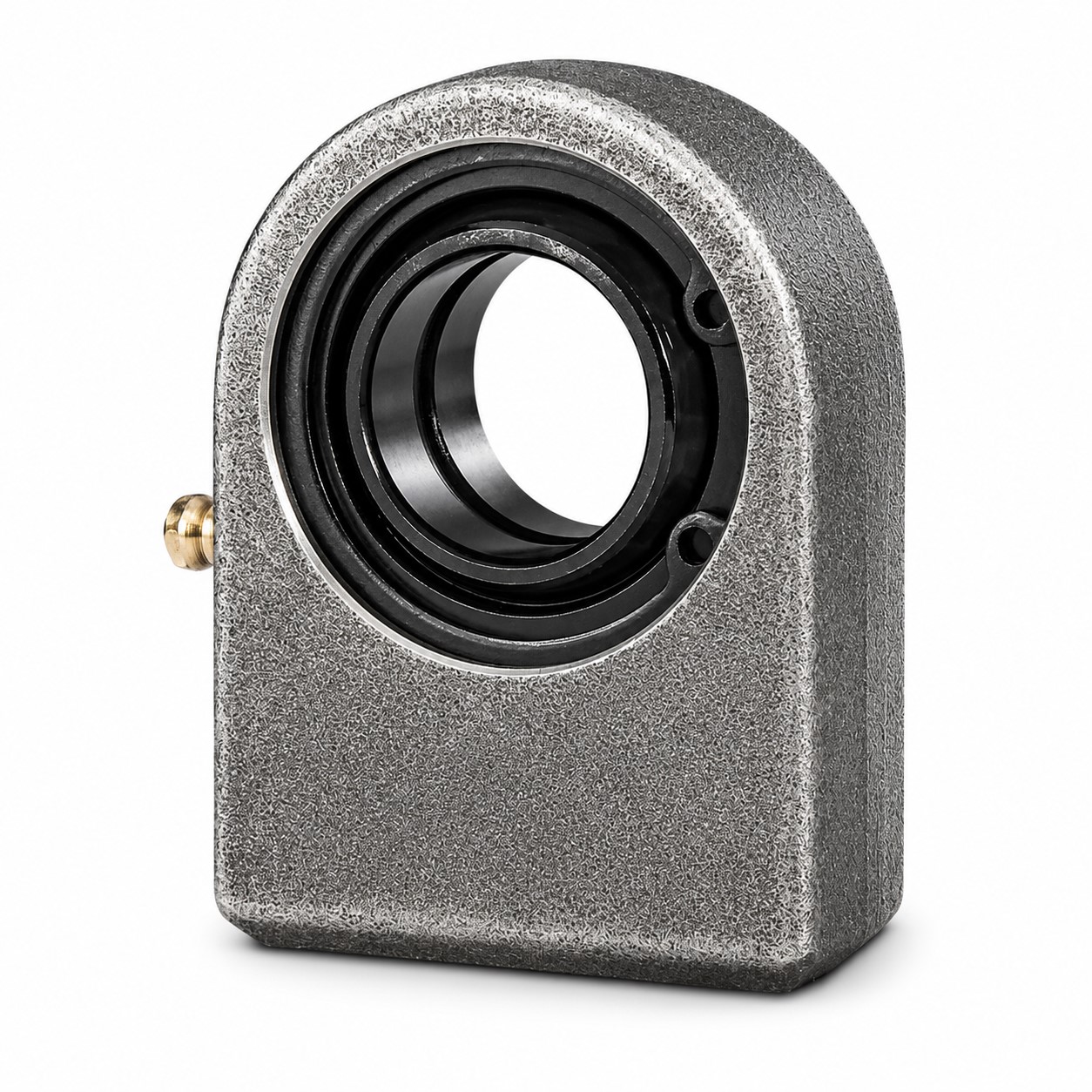

SDTZ SF20ES Hydraulic Rod End (Weld-on) – 20mm Bore
20 mm × 16 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SF25ES
SDTZ SF25ES Hydraulic Rod End (Weld-on) – 25mm Bore
25 mm × 20 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SF30ES
SDTZ SF30ES Hydraulic Rod End (Weld-on) – 30mm Bore
30 mm × 22 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SF35ES
SDTZ SF35ES Hydraulic Rod End (Weld-on) – 35mm Bore
35 mm × 25 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SF40ES
SDTZ SF40ES Hydraulic Rod End (Weld-on) – 40mm Bore
40 mm × 28 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SF45ES
SDTZ SF45ES Hydraulic Rod End (Weld-on) – 45mm Bore
45 mm × 32 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SF50ES
SDTZ SF50ES Hydraulic Rod End (Weld-on) – 50mm Bore
50 mm × 35 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SF60ES
SDTZ SF60ES Hydraulic Rod End (Weld-on) – 60mm Bore
60 mm × 44 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SF70ES
SDTZ SF70ES Hydraulic Rod End (Weld-on) – 70mm Bore
70 mm × 49 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SF80ES
SDTZ SF80ES Hydraulic Rod End (Weld-on) – 80mm Bore
80 mm × 55 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SF90ES
SDTZ SF90ES Hydraulic Rod End (Weld-on) – 90mm Bore
90 mm × 60 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SIGEW12ES

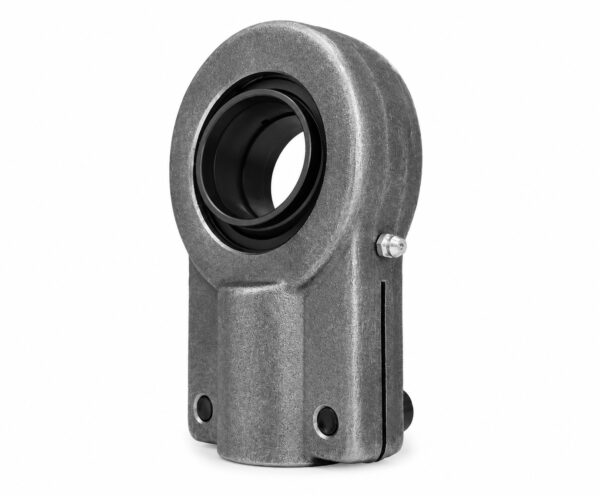

SDTZ SIGEW12ES Hydraulic Rod End (Lubricated) – 12mm Bore
12 mm × 12 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SIGEW16ES
SDTZ SIGEW16ES Hydraulic Rod End (Lubricated) – 16mm Bore
16 mm × 16 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SIGEW20ES
SDTZ SIGEW20ES Hydraulic Rod End (Lubricated) – 20mm Bore
20 mm × 20 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SIGEW25ES
SDTZ SIGEW25ES Hydraulic Rod End (Lubricated) – 25mm Bore
25 mm × 25 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SIGEW32ES
SDTZ SIGEW32ES Hydraulic Rod End (Lubricated) – 32mm Bore
32 mm × 32 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SIGEW40ES
SDTZ SIGEW40ES Hydraulic Rod End (Lubricated) – 40mm Bore
40 mm × 40 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SIGEW50ES
SDTZ SIGEW50ES Hydraulic Rod End (Lubricated) – 50mm Bore
50 mm × 50 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SIGEW63ES
SDTZ SIGEW63ES Hydraulic Rod End (Lubricated) – 63mm Bore
63 mm × 63 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SIGEW70ES
SDTZ SIGEW70ES Hydraulic Rod End (Lubricated) – 70mm Bore
70 mm × 70 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SIGEW80ES
SDTZ SIGEW80ES Hydraulic Rod End (Lubricated) – 80mm Bore
80 mm × 80 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SIR20ES

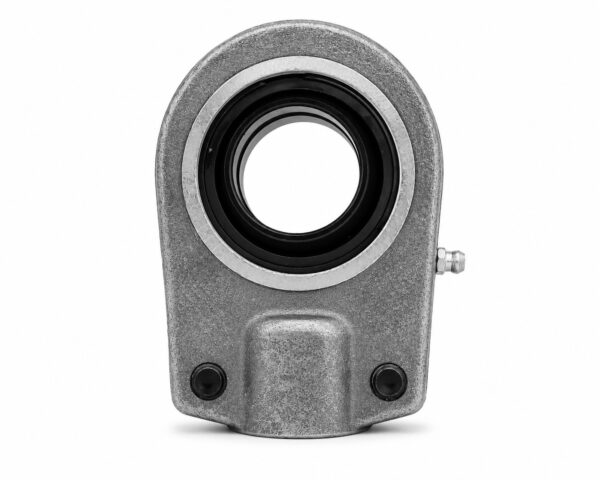

SDTZ SIR20ES Hydraulic Rod End (Female Clamped) – 20mm Bore
20 mm × 16 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SIR25ES
SDTZ SIR25ES Hydraulic Rod End (Female Clamped) – 25mm Bore
25 mm × 20 mm (ID × W)
SDTZProduct successfully added to the Quote List
-
SIR30ES
SDTZ SIR30ES Hydraulic Rod End (Female Clamped) – 30mm Bore
30 mm × 22 mm (ID × W)
SDTZProduct successfully added to the Quote List
Showing 1–24 of 43 results
