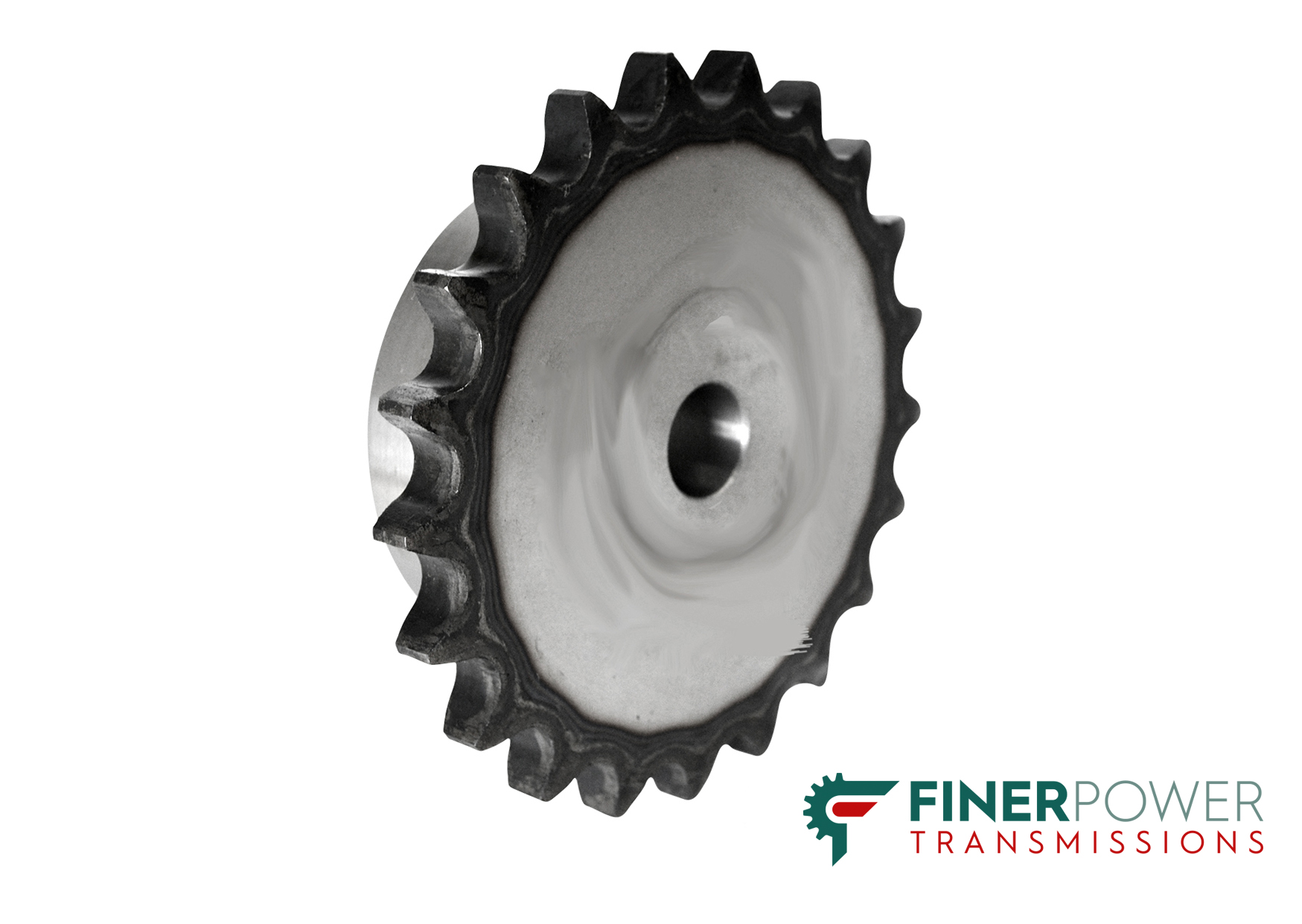

Pilot Bore Sprockets

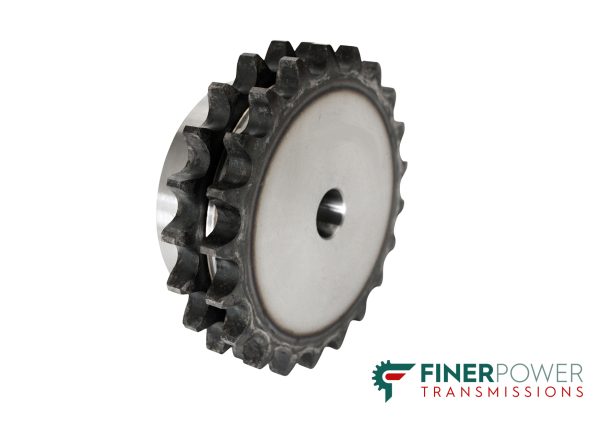

Hub sprockets supplied with a small pilot bore ready to be machined out to suit the shaft – keyway and set screws. High quality steel with induction hardened teeth for wear resistance and a longer working life. ASA and British Standard chain sizes in simplex – duplex and triplex.
Explore Pilot Bore Sprockets Types
Browse by type
Showing 1–24 of 719 results
Images are for illustrative purposes only. Actual product may vary.
-
05B1-10PB
Finer PT 05B1-10PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 10 Teeth
6 mm × 28.4 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-11PB
Finer PT 05B1-11PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 11 Teeth
7 mm × 31 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-12PB
Finer PT 05B1-12PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 12 Teeth
7 mm × 33.7 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-13PB
Finer PT 05B1-13PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 13 Teeth
7 mm × 36.7 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-14PB
Finer PT 05B1-14PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 14 Teeth
7 mm × 39.2 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-15PB
Finer PT 05B1-15PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 15 Teeth
7 mm × 41.7 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-16PB
Finer PT 05B1-16PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 16 Teeth
8 mm × 44.2 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-17PB
Finer PT 05B1-17PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 17 Teeth
8 mm × 46.7 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-18PB
Finer PT 05B1-18PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 18 Teeth
8 mm × 49.2 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-19PB
Finer PT 05B1-19PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 19 Teeth
8 mm × 51.7 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-20PB
Finer PT 05B1-20PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 20 Teeth
8 mm × 54.2 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-21PB
Finer PT 05B1-21PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 21 Teeth
8 mm × 57.2 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-22PB
Finer PT 05B1-22PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 22 Teeth
8 mm × 59.2 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-23PB
Finer PT 05B1-23PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 23 Teeth
8 mm × 62.2 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-24PB
Finer PT 05B1-24PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 24 Teeth
8 mm × 64.7 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-25PB
Finer PT 05B1-25PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 25 Teeth
8 mm × 67.2 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-26PB
Finer PT 05B1-26PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 26 Teeth
10 mm × 69.7 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-27PB
Finer PT 05B1-27PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 27 Teeth
10 mm × 72.3 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-28PB
Finer PT 05B1-28PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 28 Teeth
10 mm × 74.7 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-29PB
Finer PT 05B1-29PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 29 Teeth
10 mm × 77.3 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-30PB
Finer PT 05B1-30PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 30 Teeth
10 mm × 80.2 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-32PB
Finer PT 05B1-32PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 32 Teeth
12 mm × 85.2 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-34PB
Finer PT 05B1-34PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 34 Teeth
12 mm × 90.2 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
05B1-36PB
Finer PT 05B1-36PB Pilot Bore Sprocket – 05B-1 Simplex – 8mm Pitch – 36 Teeth
12 mm × 95.2 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
Showing 1–24 of 719 results
