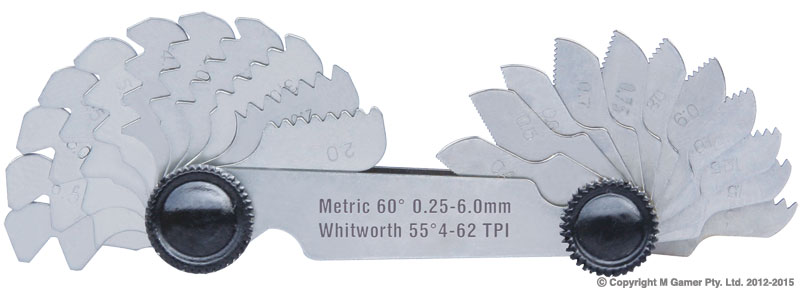

Accud AC-925-062-52 60deg Metric & 55deg Whitworth Thread Gauge
Accud AC-925-062-52 60deg Metric & 55deg Whitworth Thread Gauge. Range 0.25-6.0mm & 4-62 TPI – metric 60 deg screw gradations 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6 mm – whitworth 55 deg screw gradations 4, 4-1/2, 5, 6, 7, 8,.
Product successfully added to the Quote List
- Compact enough for a toolbox drawer
- Covers gaps radii tapers threads and bores
- Fast go or no-go clearance checks
- Hardened steel leaves and blades last
- Manufactured by Accud and imported into Australia by Gamer
| Brand | Accud |
|---|---|
| Product Type | Thread Gauges |
| Measurement System | Imperial |
| Weight | 0.08 kg |
| Cross Reference | Gamer: AC-925-062-52 | Barcode: 9346967027447 |
| Features & Benefits | Compact enough for a toolbox drawer Covers gaps radii tapers threads and bores Fast go or no-go clearance checks Hardened steel leaves and blades last Manufactured by Accud and imported into Australia by Gamer |
The AC-925-062-52 is a 60deg Metric & 55deg Whitworth Thread Gauge.
Setting and checking clearances quickly is what workshop gauges are built for, giving a direct go or no-go answer without setting up an instrument. The group covers feeler leaves for gaps, radius and thread profiles for form checking, taper blades for hole sizing, telescopic bodies for bores and steel rules for layout.
Measure the pitch of thread
Accuracy: +/-0.07mm
Metric 60 deg And Whitworth 55 deg Screw
- Range: 0.25-6.0mm & 4-62 TPI
- Metric 60 deg Screw Gradations: 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6 mm
- Whitworth 55 deg Screw Gradations: 4, 4-1/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 48, 60, 62 TPI
Manufactured by Accud and imported into Australia by Gamer.
