FYH F310 4-Bolt Flange Housing
F310

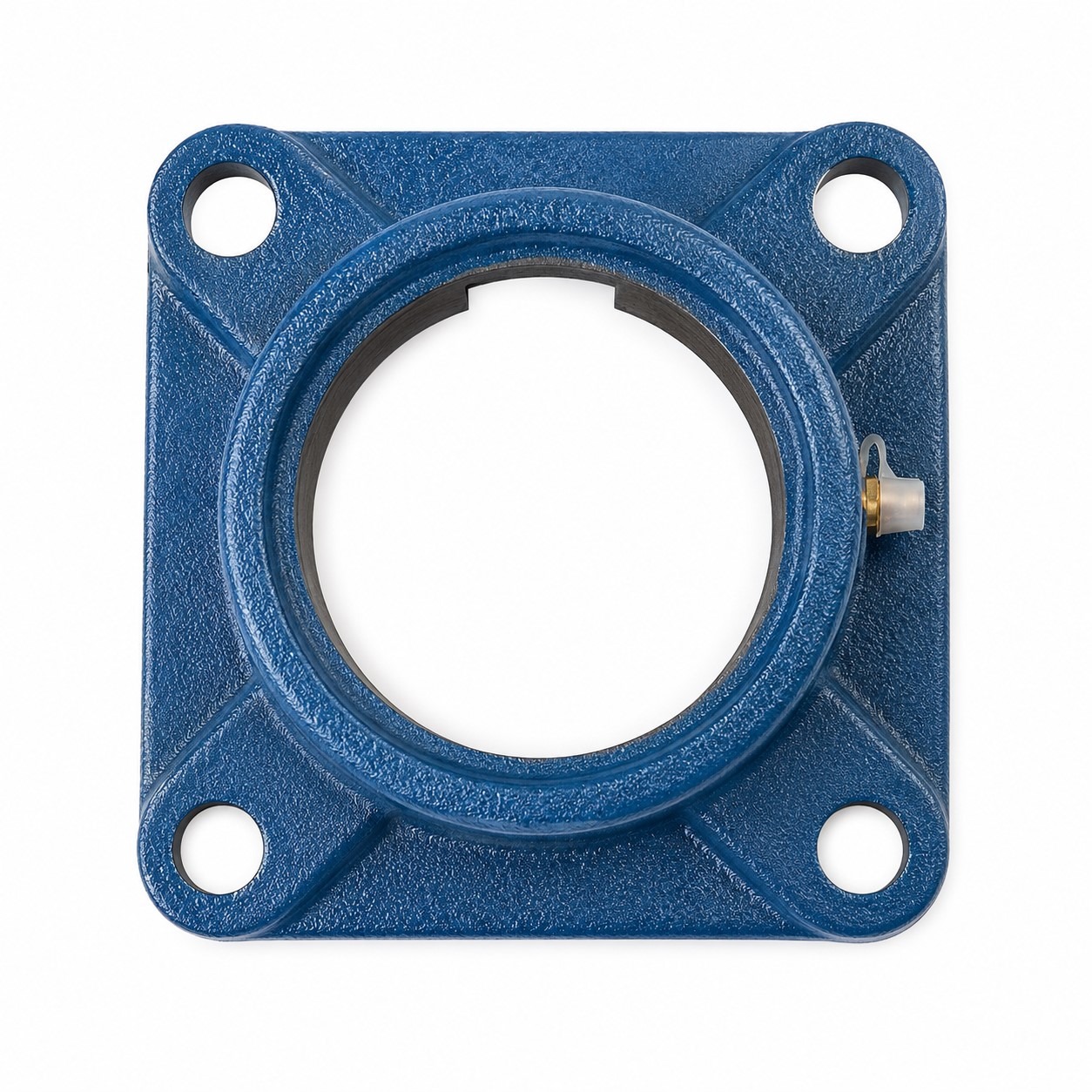

Images are for illustrative purposes only. Actual product may vary.

FYH

FYH F310 4-Bolt Flange Housing

Part Number: F310

FYH F310 cast iron 4-bolt square flange housing. Bolt hole centres (J): 132mm. Bolt size: M20. Accepts UC-series insert bearings.

Qty:
  • Accepts UC-series wide inner ring insert bearings
  • Cast iron 4-bolt square flange housing
  • Manufactured by FYH to ISO standards
  • Mounts perpendicular to a vertical surface
  • Supplied as housing only, insert ordered separately
Brand

FYH
Bearing Type

4-Bolt Flange Housing
Series

F300
Housing Type

Square Flange (4-Bolt)
Material

Cast Iron
Flange Length (L)

175 mm
Bolt Hole Centres (J)

132 mm
Bolt Size

M20
Bolt Hole Diameter (N)

23 mm
Total Height (A0)

67 mm
Housing Width (B)

61 mm
Features & Benefits Accepts UC-series wide inner ring insert bearings
Cast iron 4-bolt square flange housing
Manufactured by FYH to ISO standards
Mounts perpendicular to a vertical surface
Supplied as housing only, insert ordered separately

FYH F310 4-Bolt Flange Housing

The FYH F310 is a cast iron 4-bolt square flange housing (F-type) designed to accept a matching UC-series wide inner ring insert bearing. Overall flange length (L): 175mm, bolt hole centres (J): 132mm, bolt size: M20.

Flange housings mount to a vertical surface, positioning the shaft perpendicular to the mounting face. Supplied as a housing only – the insert bearing is ordered separately. Manufactured by FYH (Nippon Pillow Block).

FYH F300 Flange Housing Series
PDF — 470 KB
Download
