FYH FB207 3-Bolt Flange Housing
FB207

Images are for illustrative purposes only. Actual product may vary.

FYH

FYH FB207 3-Bolt Flange Housing

Part Number: FB207

FYH FB207 cast iron 3-bolt offset flange housing. Bolt centres (J): 46mm. Bolt size: M8. Accepts wide inner ring inserts.

Qty:
  • Accepts FYH wide inner ring insert bearings
  • Cast iron 3-bolt offset flange housing
  • Lighter and more compact than a 4-bolt flange
  • Manufactured by FYH to JIS standards
  • Supplied as housing only, insert ordered separately
Brand

FYH
Bearing Type

3-Bolt Flange Housing
Series

FB200
Housing Type

Offset Flange (3-Bolt)
Material

Cast Iron
Overall Height (H)

144 mm
Flange Length (L)

90 mm
Bolt Hole Centres (J)

46 mm
Bolt Size

M8
Bolt Hole Diameter (N)

9.5 mm
Housing Width (B)

42.9 mm
Features & Benefits Accepts FYH wide inner ring insert bearings
Cast iron 3-bolt offset flange housing
Lighter and more compact than a 4-bolt flange
Manufactured by FYH to JIS standards
Supplied as housing only, insert ordered separately

FYH FB207 3-Bolt Flange Housing

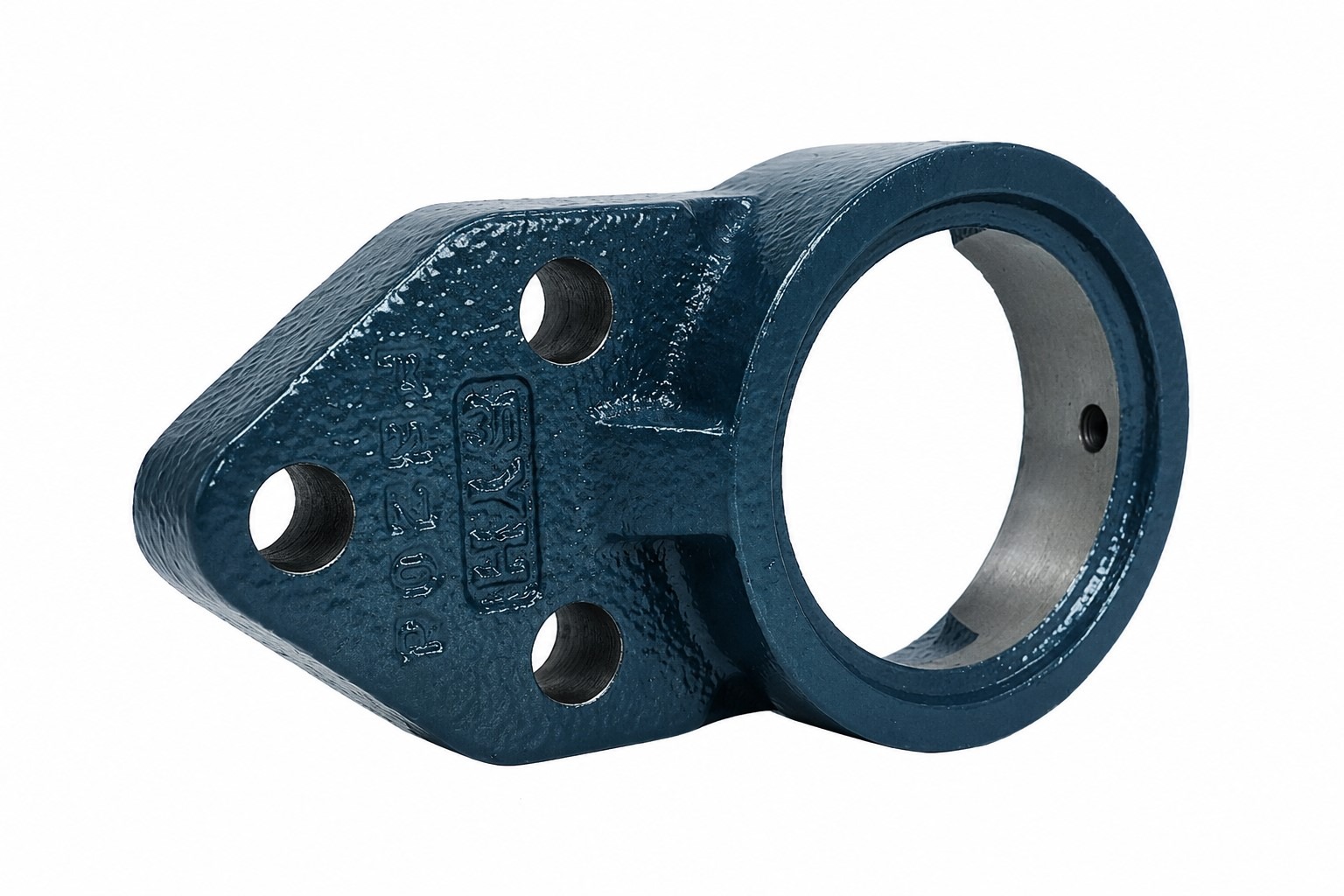

The FYH FB207 is a cast iron 3-bolt offset (triangular) flange housing designed to accept a matching FYH wide inner ring insert bearing. Overall height (H): 144mm, bolt hole centres (J): 46mm, bolt size: M8.

The 3-bolt flange offers a lighter, more compact mounting than a 4-bolt square flange. Supplied as a housing only – the insert bearing is ordered separately. Manufactured by FYH (Nippon Pillow Block Mfg. Co., Ltd.) – Japan’s oldest and largest maker of mounted ball bearing units, producing to JIS standards since 1950.

FYH FB200 Flange Housings
PDF — 614 KB
Download
