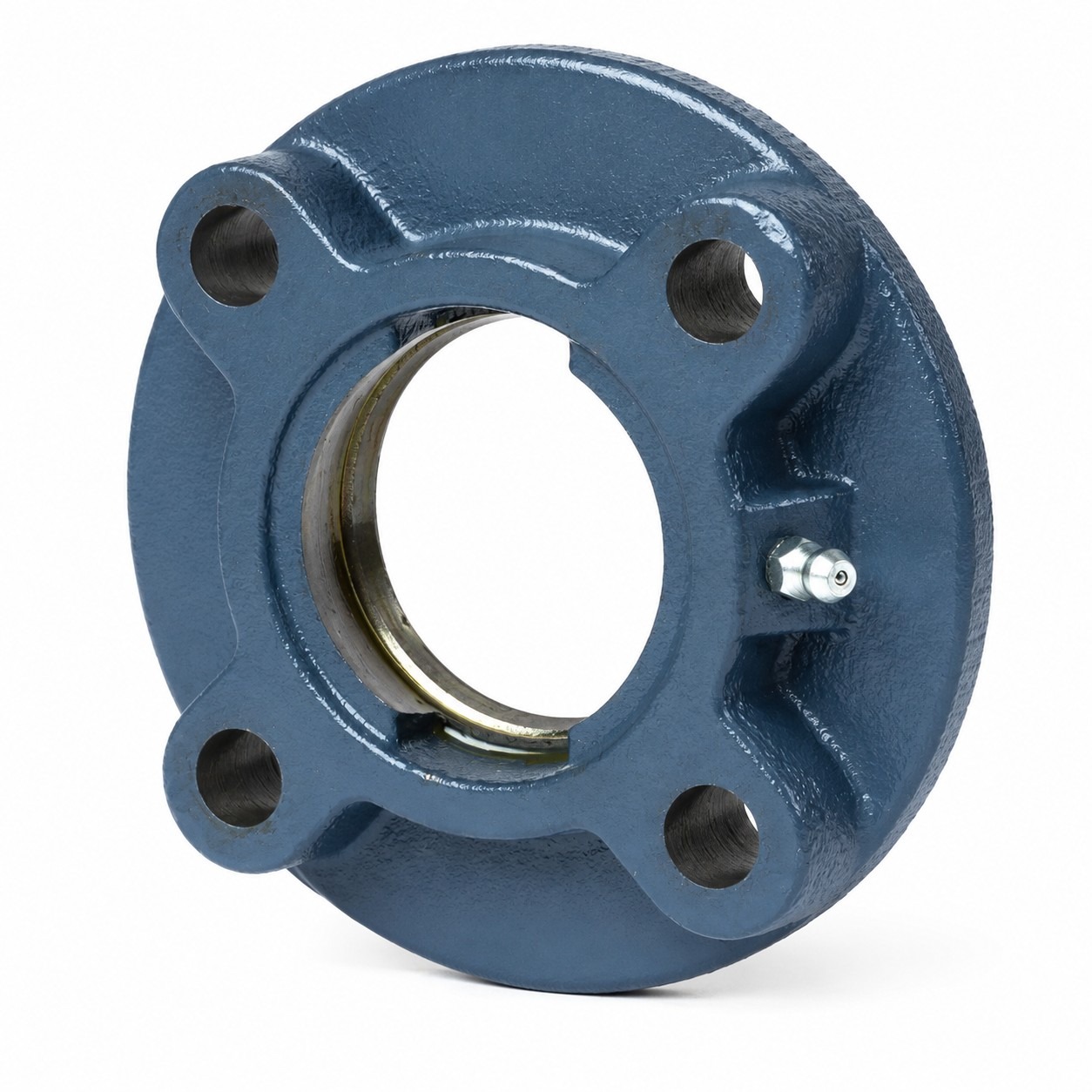

FYH FC207 Round Flange Cartridge Housing
FYH FC207 cast iron round flange cartridge housing. OD 135mm, bolt circle 110mm, bolt M12. Insert width 17.5mm.
Product successfully added to the Quote List
- Accepts FYH insert bearings
- Bolts to a flat face and centres the bearing
- Cast iron round flange cartridge housing
- Manufactured by FYH to JIS standards
- Supplied as housing only, insert ordered separately
| Brand | FYH |
|---|---|
| Bearing Type | Round Flange Cartridge Housing |
| Series | FC200 |
| Housing Type | Round Flange Cartridge |
| Material | Cast Iron |
| Outside Diameter (L) | 135 mm |
| Bore Register (H3) | 90 mm |
| Bolt Circle (J) | 110 mm |
| Bolt Circle Offset (J1) | 77.8 mm |
| Bolt Hole Diameter (N) | 14 mm |
| Insert Seat (B) | 42.9 mm |
| Insert Width (S) | 17.5 mm |
| Bolt Size | M12 |
| Features & Benefits | Accepts FYH insert bearings Bolts to a flat face and centres the bearing Cast iron round flange cartridge housing Manufactured by FYH to JIS standards Supplied as housing only, insert ordered separately |
FYH FC207 Round Flange Cartridge Housing
The FYH FC207 is a cast iron round flanged cartridge housing with an outside diameter (L) of 135mm, bore register 90mm and a 110mm bolt circle. It accepts a matching FYH insert bearing (insert seat 42.9mm, width 17.5mm).
Round flange cartridge housings bolt onto a flat face and locate the bearing centrally. Supplied as a housing only – the insert bearing is ordered separately. Manufactured by FYH (Nippon Pillow Block Mfg. Co., Ltd.) – Japan’s oldest and largest maker of mounted ball bearing units, producing to JIS standards since 1950.
