Images are for illustrative purposes only. Actual product may vary.

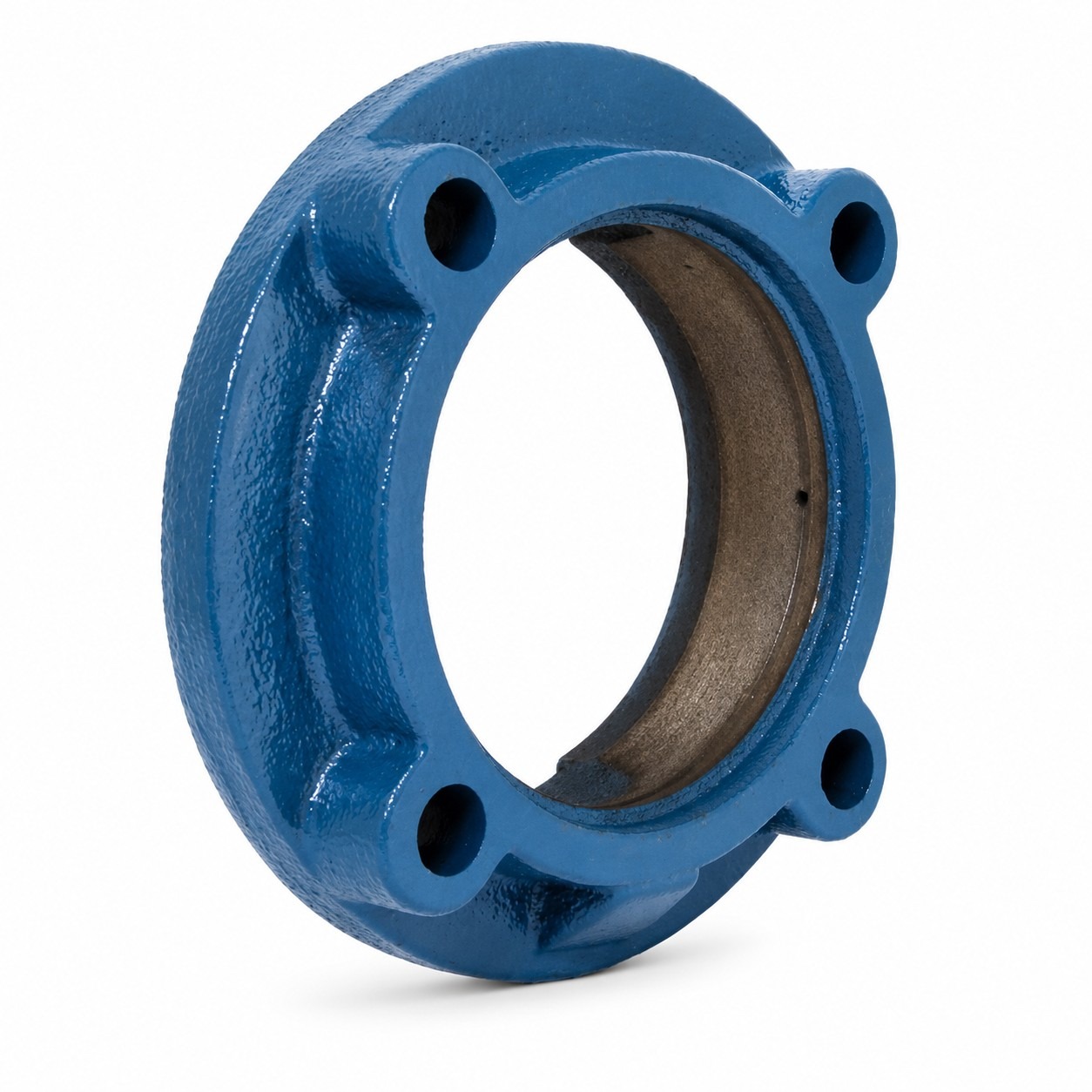

FYH FCX16 Round Flange Cartridge Housing (Medium Duty)
FYH FCX16 cast iron 4-bolt round flange cartridge housing. Suits 80mm shaft. OD 260mm, bolt circle 155mm.
Product successfully added to the Quote List
- Accepts matching insert bearings
- Bolts to a flat face and centres the bearing
- Manufactured by FYH to JIS standards
- Medium-duty cast iron 4-bolt round flange cartridge housing
- Supplied as housing only, insert ordered separately
| Brand | FYH |
|---|---|
| Bearing Type | Round Flange Cartridge Housing |
| Series | FCX00 |
| Housing Type | Round Flange Cartridge (4-Bolt) |
| Material | Cast Iron |
| Shaft Size | 80 mm |
| Outside Diameter (L) | 260 mm |
| Pilot Diameter (P) | 219 mm |
| Bolt Circle (J) | 155 mm |
| Overall Length (A) | 61.6 mm |
| Register (K) | 19 mm |
| Flange Width (F) | 186 mm |
| Bolt Hole Diameter (N) | 23 mm |
| Insert Seat (E) | 58.7 mm |
| Insert Width (S) | 34.1 mm |
| Features & Benefits | Accepts matching insert bearings Bolts to a flat face and centres the bearing Manufactured by FYH to JIS standards Medium-duty cast iron 4-bolt round flange cartridge housing Supplied as housing only, insert ordered separately |
FYH FCX16 Round Flange Cartridge Housing
The FYH FCX16 is a medium-duty cast iron 4-bolt round flanged cartridge housing for a 80mm shaft bearing. Outside diameter (L) 260mm, pilot 219mm, bolt circle 155mm, overall length 61.6mm, insert seat 58.7mm, insert width 34.1mm.
Supplied as a housing only – the insert bearing is ordered separately. Manufactured by FYH (Nippon Pillow Block Mfg. Co., Ltd.) – Japan’s oldest and largest maker of mounted ball bearing units, producing to JIS standards since 1950.
