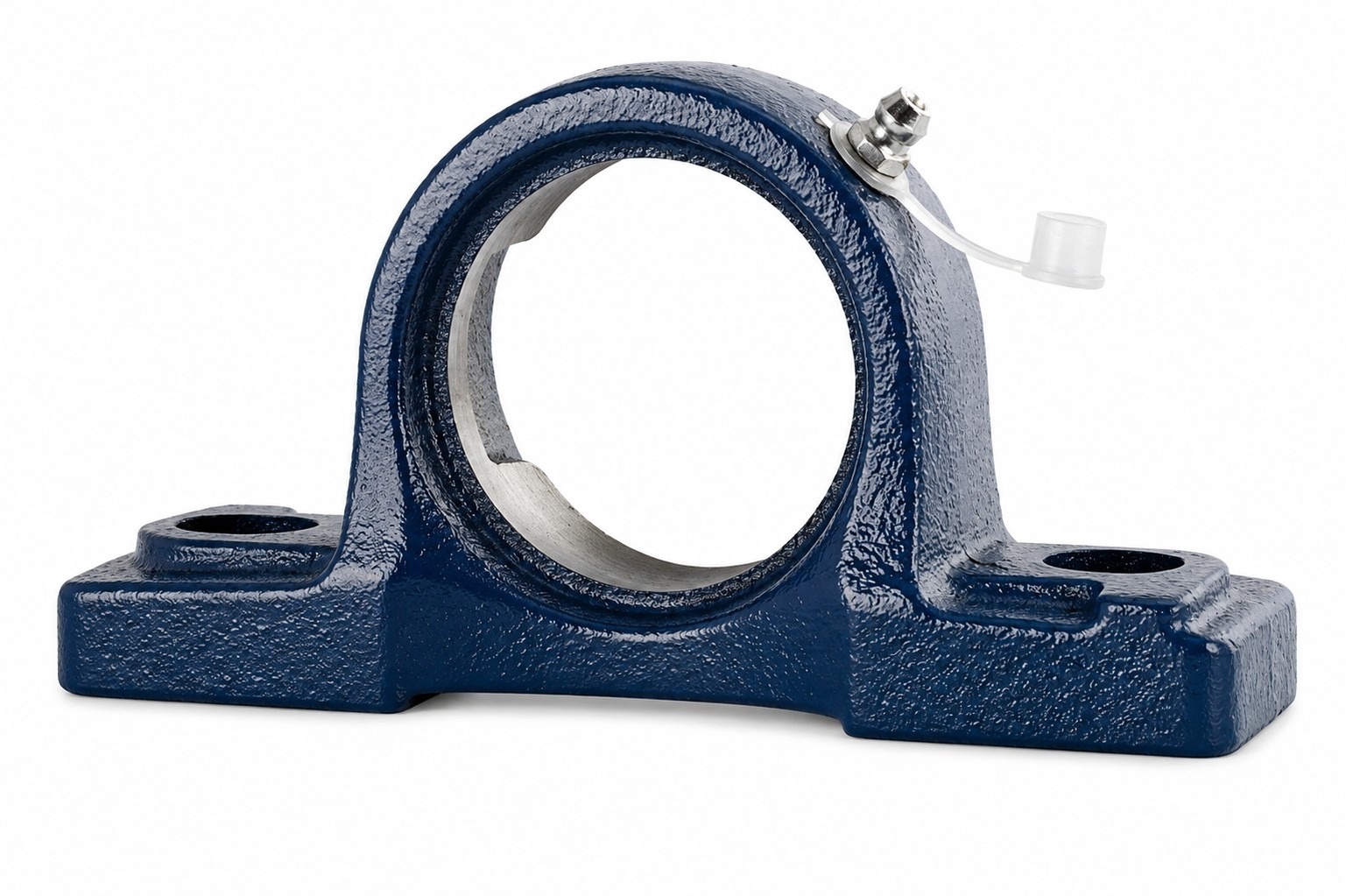

FYH P206 Pillow Block Housing
FYH P206 cast iron pillow block housing. Suits 30mm shaft. Centre height 42.9mm, length 165mm, bolt centres 121mm.
Product successfully added to the Quote List
- Accepts FYH insert bearings
- Cast iron pillow (plummer) block housing
- Foot-mounted base with two bolt slots
- Manufactured by FYH to JIS standards
- Supplied as housing only, insert ordered separately
| Brand | FYH |
|---|---|
| Bearing Type | Pillow Block Housing |
| Series | P200 |
| Housing Type | Pillow Block |
| Material | Cast Iron |
| Shaft Size | 30 mm |
| Height to Centre (H) | 42.9 mm |
| Overall Length (L) | 165 mm |
| Base Width (A) | 48 mm |
| Bolt Hole Centres (J) | 121 mm |
| Bolt Size | M14 |
| Features & Benefits | Accepts FYH insert bearings Cast iron pillow (plummer) block housing Foot-mounted base with two bolt slots Manufactured by FYH to JIS standards Supplied as housing only, insert ordered separately |
FYH P206 Pillow Block Housing
The FYH P206 is a cast iron pillow (plummer) block housing for a 30mm shaft bearing. Centre height 42.9mm, overall length 165mm, base width 48mm, bolt hole centres 121mm, overall height 84mm, insert width 38.1mm, bolt size M14.
Supplied as a housing only – the insert bearing is ordered separately. Manufactured by FYH (Nippon Pillow Block Mfg. Co., Ltd.) – Japan’s oldest and largest maker of mounted ball bearing units, producing to JIS standards since 1950.
