Images are for illustrative purposes only. Actual product may vary.

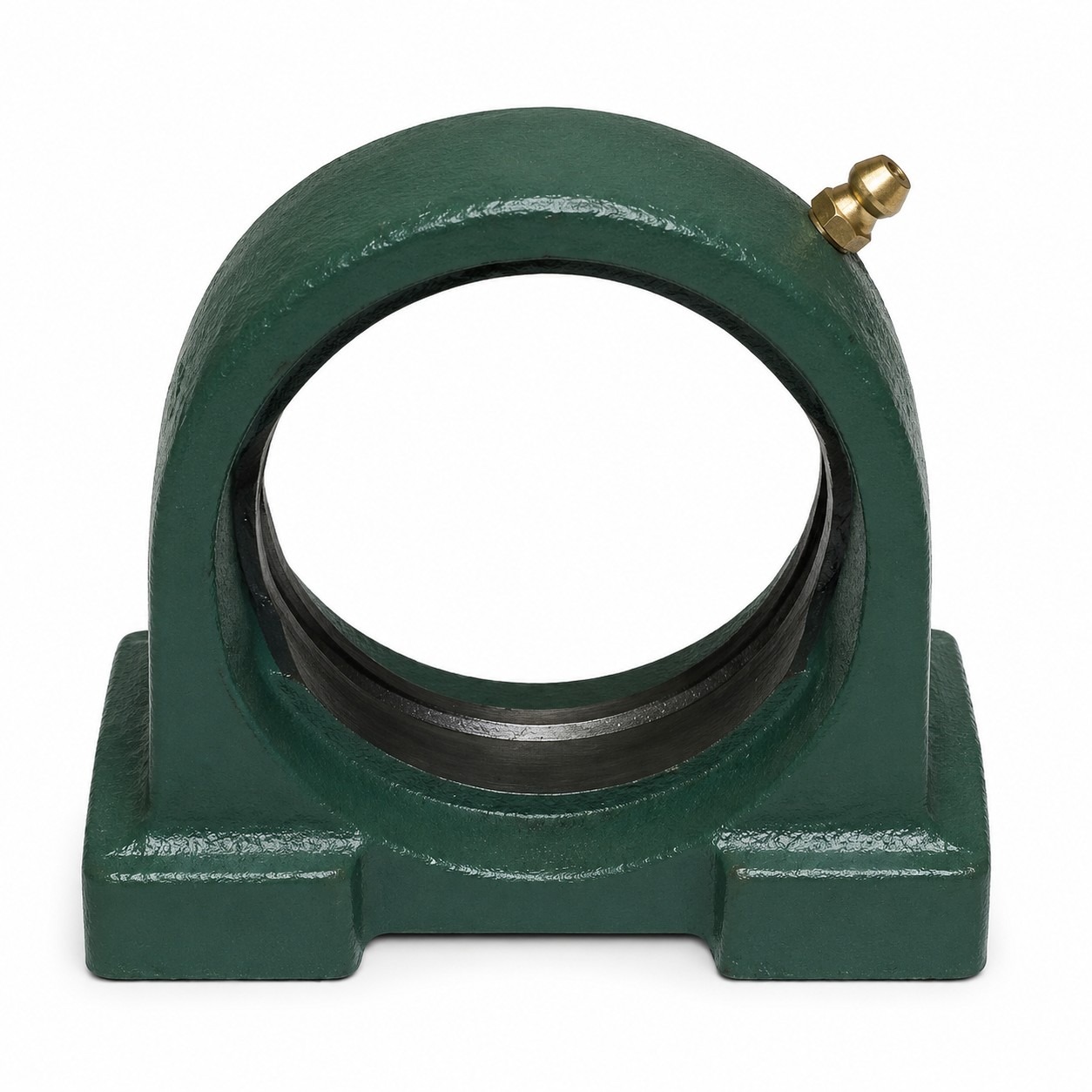

FYH PA206 Tapped Base Pillow Block Housing
FYH PA206 cast iron tapped-base pillow block housing. Suits 30mm shaft. Centre height 42.9mm, length 94mm, bolt centres 66mm.
Product successfully added to the Quote List
- Accepts FYH insert bearings
- Foot-mounted design
- Manufactured by FYH to JIS standards
- Tapped-base cast iron pillow (plummer) block housing
- Threaded mounting holes for bolt-through fixing
| Brand | FYH |
|---|---|
| Bearing Type | Pillow Block Housing |
| Series | PA200 |
| Housing Type | Pillow Block (Tapped Base) |
| Material | Cast Iron |
| Shaft Size | 30 mm |
| Height to Centre (H) | 42.9 mm |
| Overall Length (L) | 94 mm |
| Base Width (A) | 50 mm |
| Bolt Hole Centres (J) | 66 mm |
| Mounting Thread | M14X2 |
| Features & Benefits | Accepts FYH insert bearings Foot-mounted design Manufactured by FYH to JIS standards Tapped-base cast iron pillow (plummer) block housing Threaded mounting holes for bolt-through fixing |
FYH PA206 Tapped Base Pillow Block Housing
The FYH PA206 is a cast iron tapped-base cast iron pillow (plummer) block housing for a 30mm shaft bearing. Centre height 42.9mm, overall length 94mm, base width 50mm, bolt hole centres 66mm, overall height 84mm, insert width 38.1mm, bolt size M14X2.
Supplied as a housing only – the insert bearing is ordered separately. Manufactured by FYH (Nippon Pillow Block Mfg. Co., Ltd.) – Japan’s oldest and largest maker of mounted ball bearing units, producing to JIS standards since 1950.
