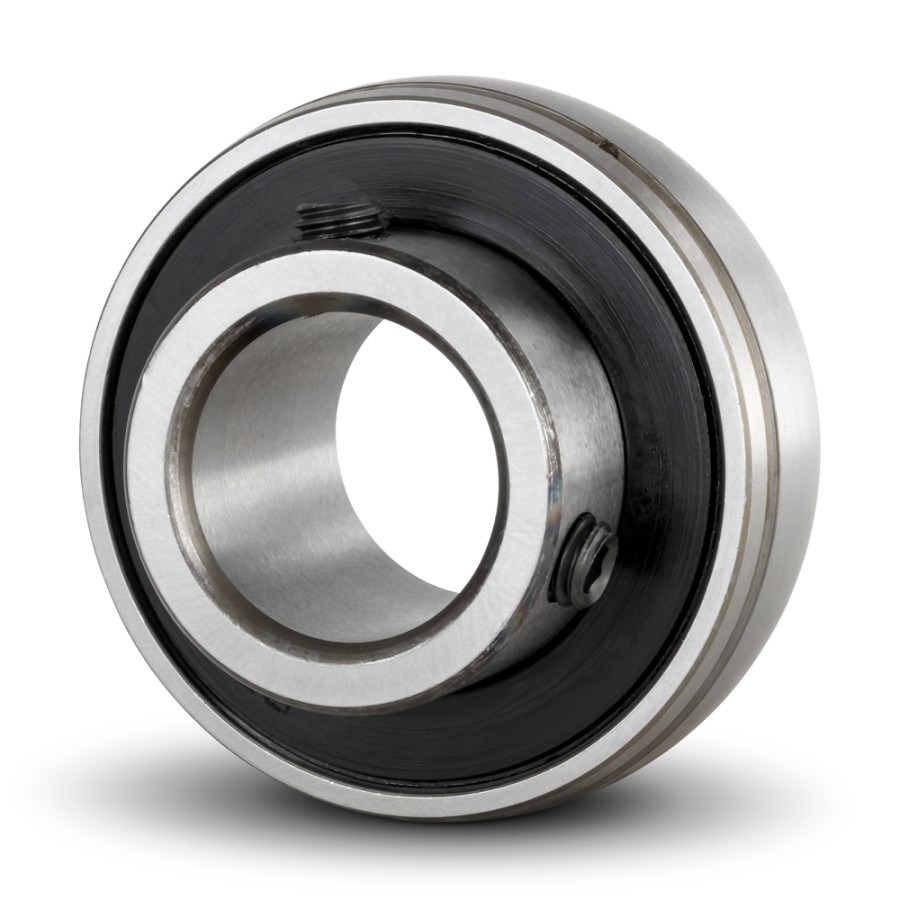

Images are for illustrative purposes only. Actual product may vary.
FYH SB204-12 Insert Bearing (Set Screw) 3/4″ (19.05 mm) Bore
FYH SB204-12 narrow inner ring set screw insert bearing. 3/4″ (19.05 mm) bore x 47mm OD x 25mm width. Spherical OD. Dynamic load 12.8kN.
Product successfully added to the Quote List
- Available in metric and inch bores
- Manufactured by FYH to JIS standards
- Narrow inner ring insert with spherical OD for self-alignment
- Pre-lubricated and sealed both sides
- Suits standard pillow block and flange housings
- Two set screws for shaft locking
| Brand | FYH |
|---|---|
| Bearing Type | Insert Bearing (Set Screw) |
| Series | SB200 |
| Bore Size | Inch (Imperial) |
| Inner Diameter (Bore) | 3/4" (19.05 mm) |
| Outer Diameter | 47 mm |
| Width | 25 mm |
| Outer Ring Type | Spherical OD |
| Seal Type | Contact Seal (Both Sides) |
| Locking Type | Set Screw |
| Set Screw Size | 1/4-28UNF |
| Material | Chrome Steel |
| Dynamic Load Rating (Cr) | 12.8 kN |
| Static Load Rating (C₀) | 6.65 kN |
| Weight | 0.15 kg |
| Features & Benefits | Available in metric and inch bores Manufactured by FYH to JIS standards Narrow inner ring insert with spherical OD for self-alignment Pre-lubricated and sealed both sides Suits standard pillow block and flange housings Two set screws for shaft locking |
FYH SB204-12 Insert Bearing
The FYH SB204-12 is a narrow inner ring insert ball bearing that locks onto the shaft with two set screws. It has a spherical outer surface for self-alignment within a housing, is pre-lubricated and sealed, and suits a 3/4″ (19.05 mm) shaft with a 47mm outside diameter.
Load Ratings
Basic dynamic load rating (Cr): 12.8 kN. Basic static load rating (C0r): 6.65 kN.
Manufactured by FYH (Nippon Pillow Block Mfg. Co., Ltd.) – Japan’s oldest and largest maker of mounted ball bearing units, producing to JIS standards since 1950.
