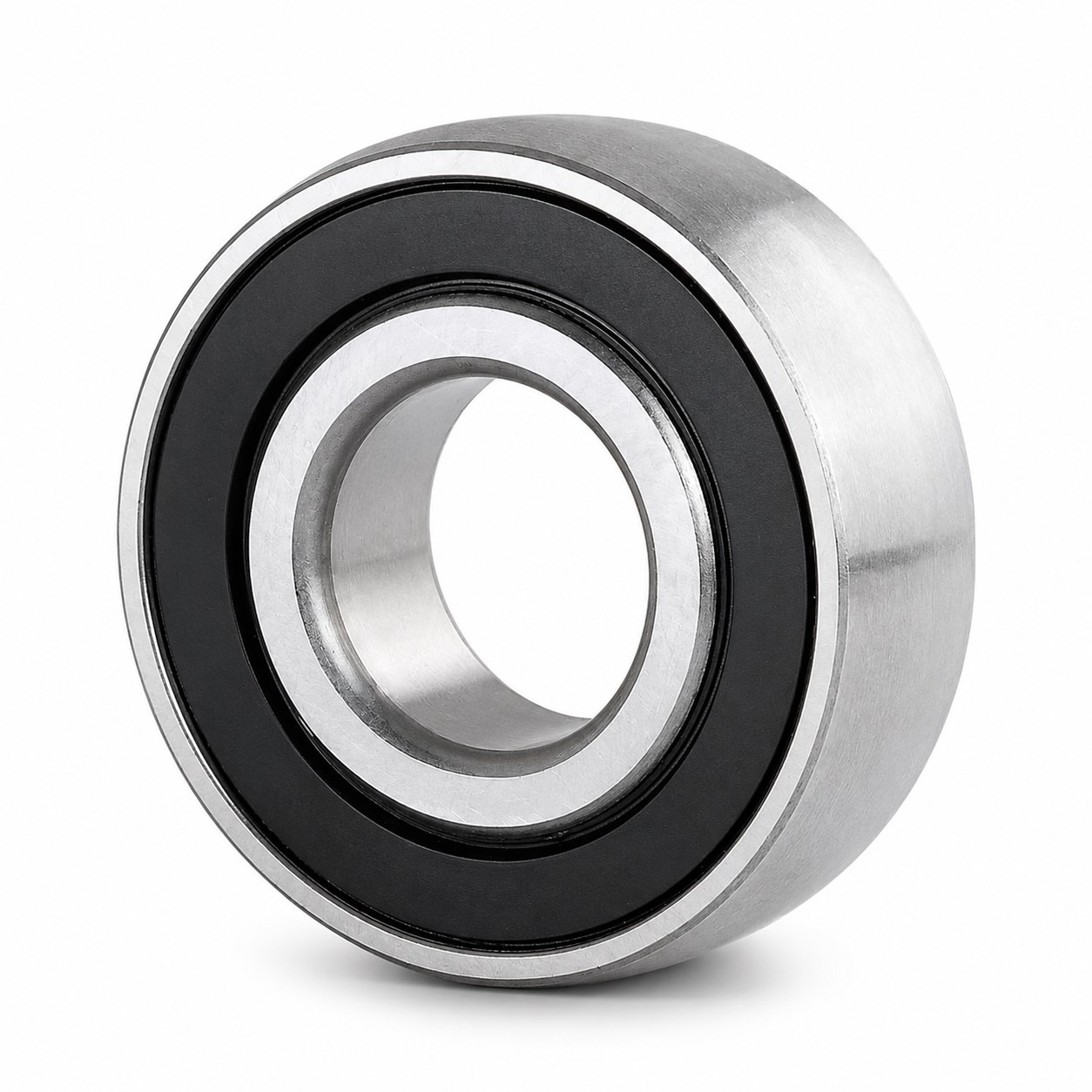

FYH SC208 Insert Bearing (Set Screw) 40 mm Bore
FYH SC208 set screw insert bearing. 40 mm bore x 80mm OD x 18mm width. Dynamic load 29.1kN.
Product successfully added to the Quote List
- Compact cartridge-style insert
- Fits matching FYH housings
- Manufactured by FYH to JIS standards
- Pre-lubricated and sealed
- Set screw insert ball bearing
| Brand | FYH |
|---|---|
| Bearing Type | Insert Bearing (Set Screw) |
| Series | SC200 |
| Bore Size | Metric |
| Inner Diameter (Bore) | 40 mm |
| Outer Diameter | 80 mm |
| Width | 18 mm |
| Seal Type | Contact Seal (Both Sides) |
| Locking Type | Set Screw |
| Material | Chrome Steel |
| Dynamic Load Rating (Cr) | 29.1 kN |
| Static Load Rating (C₀) | 17.8 kN |
| Weight | 0.6 kg |
| Features & Benefits | Compact cartridge-style insert Fits matching FYH housings Manufactured by FYH to JIS standards Pre-lubricated and sealed Set screw insert ball bearing |
FYH SC208 Insert Bearing
The FYH SC208 is a set screw insert ball bearing suiting a 40 mm shaft with a 80mm outside diameter and 18mm width. It locks onto the shaft with set screws and is pre-lubricated.
Load Ratings
Basic dynamic load rating (Cr): 29.1 kN. Basic static load rating (C0r): 17.8 kN.
Manufactured by FYH (Nippon Pillow Block Mfg. Co., Ltd.) – Japan’s oldest and largest maker of mounted ball bearing units, producing to JIS standards since 1950.
