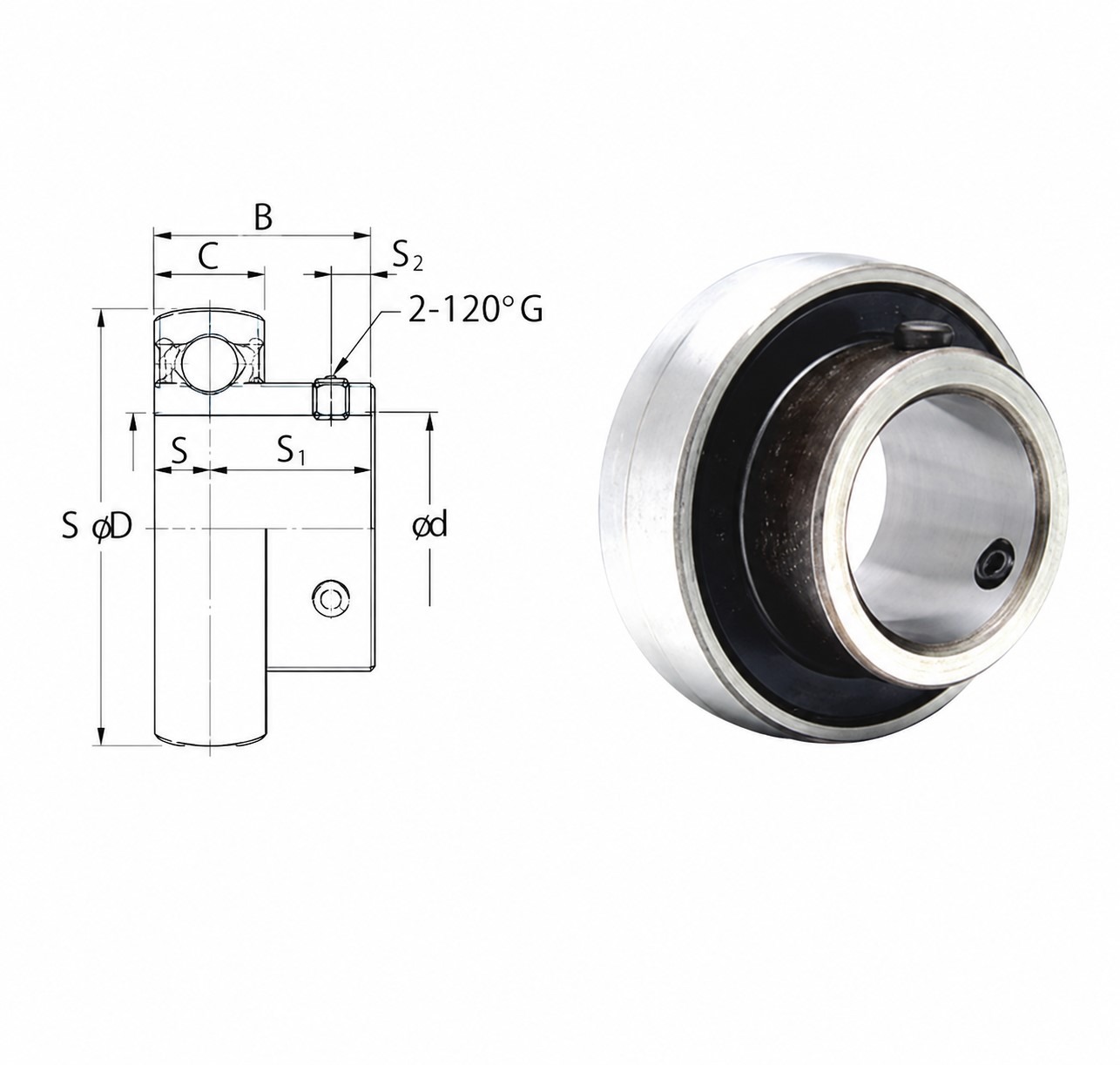

Images are for illustrative purposes only. Actual product may vary.
FYH SU003 Silver Series Insert Bearing 17 mm Bore
FYH SU003 Silver Series compact insert bearing. 17 mm bore x 35mm OD x 17.5mm width. Set screw. Dynamic load 6kN.
Product successfully added to the Quote List
- Compact lightweight Silver Series insert
- Ideal for small light-duty mounted units
- Manufactured by FYH to JIS standards
- Set screw shaft locking
- Spherical OD for self-alignment
| Brand | FYH |
|---|---|
| Bearing Type | Silver Series Insert Bearing |
| Series | SU000 |
| Bore Size | Metric |
| Inner Diameter (Bore) | 17 mm |
| Outer Diameter | 35 mm |
| Width | 17.5 mm |
| Outer Ring Type | Spherical OD |
| Locking Type | Set Screw |
| Set Screw Size | M4×0.5 |
| Material | Chrome Steel |
| Dynamic Load Rating (Cr) | 6 kN |
| Static Load Rating (C₀) | 3.25 kN |
| Weight | 0.05 kg |
| Features & Benefits | Compact lightweight Silver Series insert Ideal for small light-duty mounted units Manufactured by FYH to JIS standards Set screw shaft locking Spherical OD for self-alignment |
FYH SU003 Silver Series Insert Bearing
The FYH SU003 is a compact, lightweight Silver Series insert ball bearing suiting a 17 mm shaft with a 35mm outside diameter. It locks onto the shaft with a set screw and is designed for light-duty and smaller-scale mounted applications.
Load Ratings
Basic dynamic load rating (Cr): 6 kN. Basic static load rating (C0r): 3.25 kN.
Manufactured by FYH (Nippon Pillow Block Mfg. Co., Ltd.) – Japan’s oldest and largest maker of mounted ball bearing units, producing to JIS standards since 1950.
