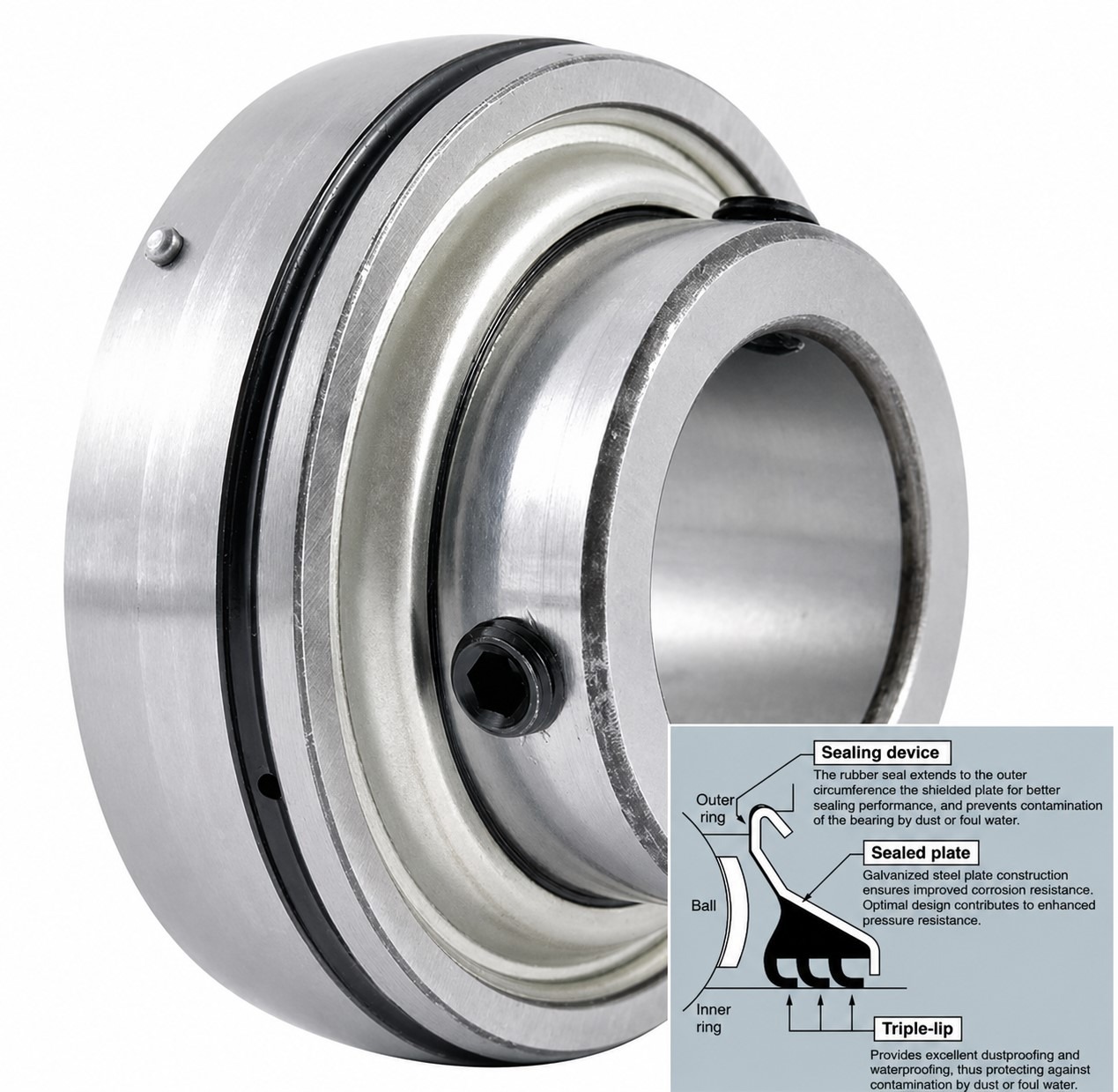

FYH UC215-48L3 Triple Lip Wide Inner Ring Insert Bearing 3″ (76.2 mm) Bore
FYH UC215-48L3 wide inner ring insert bearing. 3″ (76.2 mm) bore x 130mm OD x 77.8mm width. Set screw locking. Dynamic load 67.4kN.
Product successfully added to the Quote List
- Available in metric and inch bores
- Manufactured by FYH to ISO standards
- Pre-lubricated and re-greasable
- Set screw locking onto the shaft
- Suits standard pillow block and flange housings
- Wide inner ring insert bearing with spherical OD for self-alignment
| Brand | FYH |
|---|---|
| Bearing Type | Triple Lip Wide Inner Ring Insert Bearing |
| Series | UC200 Triple Lip |
| Bore Size | Inch (Imperial) |
| Inner Diameter (Bore) | 3" (76.2 mm) |
| Outer Diameter | 130 mm |
| Width | 77.8 mm |
| Inner Ring Width (C) | 32 mm |
| Seal Type | Triple Lip (L3) |
| Locking Type | Set Screw |
| Set Screw Size | 1/2-20UNF |
| Material | Chrome Steel |
| Dynamic Load Rating (Cr) | 67.4 kN |
| Static Load Rating (C₀) | 48.3 kN |
| Weight | 2.12 kg |
| Features & Benefits | Available in metric and inch bores Manufactured by FYH to ISO standards Pre-lubricated and re-greasable Set screw locking onto the shaft Suits standard pillow block and flange housings Wide inner ring insert bearing with spherical OD for self-alignment |
FYH UC215-48L3 Triple Lip Wide Inner Ring Insert Bearing
The FYH UC215-48L3 is a triple lip wide inner ring insert bearing with a 3″ (76.2 mm) bore, 130mm outside diameter and 77.8mm total width. It features a spherical outer surface for self-alignment within a housing, a wide inner ring, and grub (set) screw locking onto the shaft (1/2-20UNF).
Load Ratings
Basic dynamic load rating (Cr): 67.4 kN. Basic static load rating (C0r): 48.3 kN.
Wide inner ring insert bearings are used in mounted bearing units for conveyors, agricultural machinery, fans and general industrial power transmission. Manufactured by FYH (Nippon Pillow Block).
