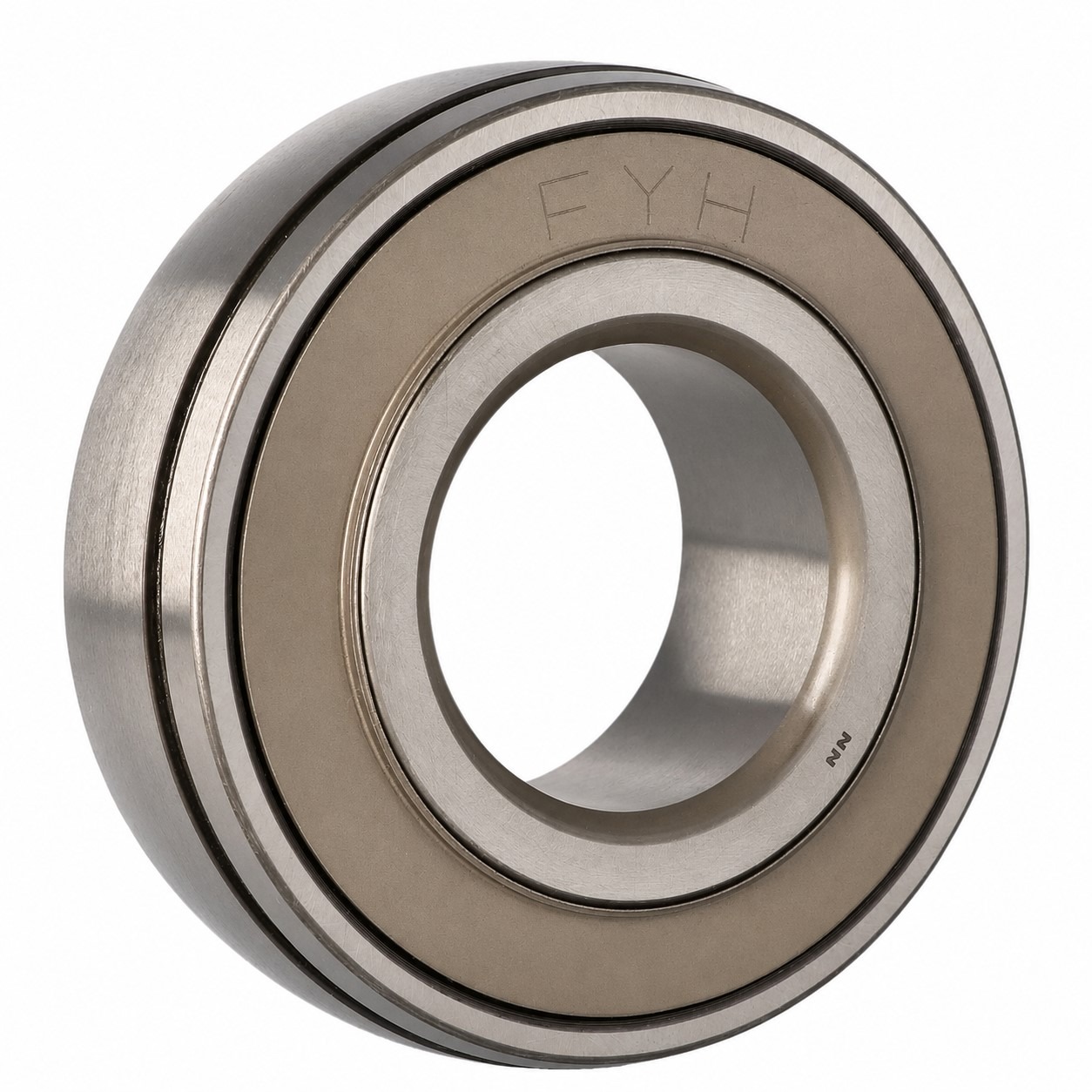

FYH UK208 Adapter Mount Insert Bearing 35mm Bore
FYH UK208 tapered-bore insert bearing with adapter sleeve. 35mm shaft x 80mm OD x 34mm width. Adapter: H2308 / HE2308. Dynamic load 29.1kN.
Product successfully added to the Quote List
- Manufactured by FYH to ISO standards
- Mounts anywhere on a plain shaft via adapter sleeve
- Pre-lubricated and re-greasable
- Spherical OD for self-alignment
- Wide inner ring insert bearing with tapered bore
| Brand | FYH |
|---|---|
| Bearing Type | Adapter Mount Insert Bearing |
| Series | UK200 |
| Bore Size | Metric |
| Inner Diameter (Bore) | 35 mm |
| Outer Diameter | 80 mm |
| Width | 34 mm |
| Inner Ring Width (C) | 21 mm |
| Bore Type | Tapered (Adapter Sleeve) |
| Locking Type | Adapter Sleeve |
| Adapter Sleeve | H2308 / HE2308 |
| Material | Chrome Steel |
| Dynamic Load Rating (Cr) | 29.1 kN |
| Static Load Rating (C₀) | 17.8 kN |
| Weight | 0.58 kg |
| Features & Benefits | Manufactured by FYH to ISO standards Mounts anywhere on a plain shaft via adapter sleeve Pre-lubricated and re-greasable Spherical OD for self-alignment Wide inner ring insert bearing with tapered bore |
FYH UK208 Adapter Mount Insert Bearing
The FYH UK208 is a wide inner ring insert bearing with a tapered bore, mounted to the shaft using an adapter sleeve (H2308 / HE2308). It suits a 35mm shaft, with a 80mm outside diameter and 34mm width.
Load Ratings
Basic dynamic load rating (Cr): 29.1 kN. Basic static load rating (C0r): 17.8 kN.
Adapter-mount insert bearings allow easy positioning anywhere along a plain shaft without a machined seat. Manufactured by FYH (Nippon Pillow Block).
