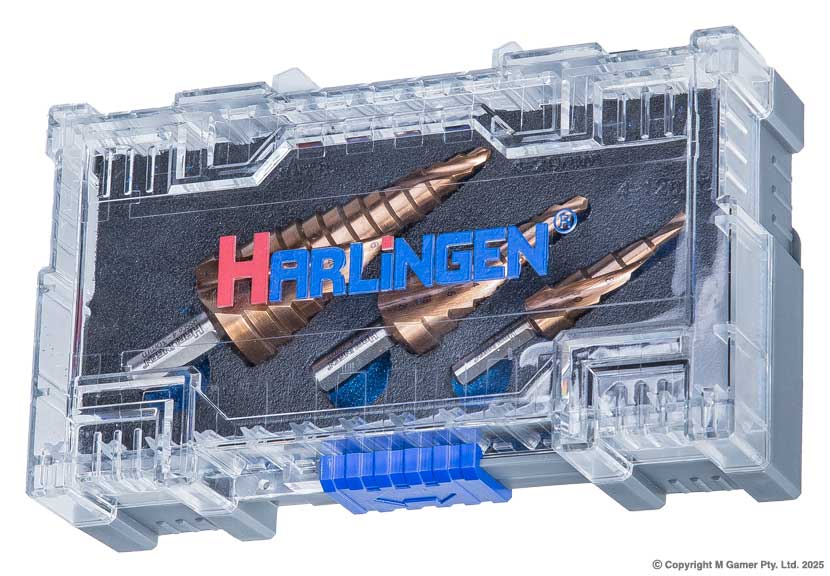

Harlingen H-11-001B-S03 Spiral Flute HSS – Cobalt Step Drill Set of 3
Harlingen H-11-001B-S03 Spiral Flute HSS – Cobalt Step Drill Set of 3. Increments 2 mm – shank dia 6 mm – shank length 21 mm. HSS Cobalt 5% (M35).
Product successfully added to the Quote List
- Cobalt and coated grades cut tougher metals
- Covers drilling stepping reaming and countersinking
- HSS Cobalt 5% (M35) construction
- Manufactured by Harlingen and imported into Australia by Gamer
- Reamers finish a hole to size
- Step drills size sheet holes without changes
- TiN Coated for longer tool life
| Brand | Harlingen |
|---|---|
| Product Type | Drill Tooling |
| Measurement System | Metric |
| Material | HSS Cobalt 5% (M35) |
| Length | 67 mm |
| Pack Type | Assortment pack |
| Weight | 0.39 kg |
| Finish | TiN Coated |
| Shank Diameter | 6 mm |
| Cross Reference | Gamer: H-11-001B-S03 | Barcode: 9346967110262 |
| Features & Benefits | Cobalt and coated grades cut tougher metals Covers drilling stepping reaming and countersinking HSS Cobalt 5% (M35) construction Manufactured by Harlingen and imported into Australia by Gamer Reamers finish a hole to size Step drills size sheet holes without changes TiN Coated for longer tool life |
The H-11-001B-S03 is a Spiral Flute HSS – Cobalt Step Drill Set of 3 in HSS Cobalt 5% (M35).
Hole making starts with a twist drill and rarely finishes there. Step drills open and enlarge holes in sheet without a pilot change, countersinks cut the recess a flush screw head needs, and reamers bring a drilled hole to a precise finished size and surface.
Spiral flutes reduce vibration and improves surface finish, while allowing higer penertration rates
HSS Cobalt step drills provide increased tool life in difficult to machine materials
TiN coating improves heat and wear resistance
3 Flats on shank to increase drill chuck clamping power
- Increments: 2 mm
- Shank Dia.: 6 mm
- Shank Length: 21 mm
- Length: 67 mm
- Material: HSS-Co5%
- Finish: TiN Coated
- 3 piece set includes:
- 4-12 mm Step Drill
- 4-20 mm Step Drill
- 4-30 mm Step Drill
Manufactured by Harlingen and imported into Australia by Gamer.
