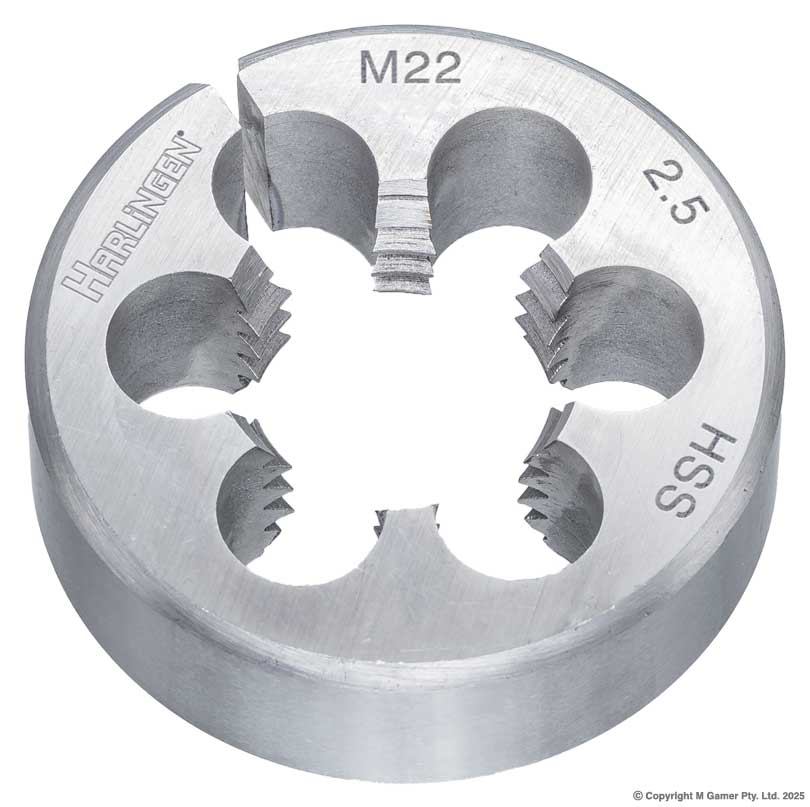

Harlingen H-11-098-A044 M22 x 2.5mm HSS Round Die
Harlingen H-11-098-A044 M22 x 2.5mm HSS Round Die. Size M22 x 2.5mm – die size 55 x 22 mm – thread direction right hand. HSS.
Product successfully added to the Quote List
- Cuts internal and external threads by hand
- HSS construction
- Manufactured by Harlingen and imported into Australia by Gamer
- Metric and imperial forms covered
- Repair tooling restores damaged threads
- Wrenches keep the cut square to the work
| Brand | Harlingen |
|---|---|
| Product Type | Metric Dies |
| Measurement System | Metric |
| Material | HSS |
| Weight | 0.26 kg |
| Finish | Uncoated |
| Thread Direction | Right Hand |
| Cross Reference | Gamer: H-11-098-A044 | Barcode: 9346967112556 |
| Features & Benefits | Cuts internal and external threads by hand HSS construction Manufactured by Harlingen and imported into Australia by Gamer Metric and imperial forms covered Repair tooling restores damaged threads Wrenches keep the cut square to the work |
The H-11-098-A044 is a M22 x 2.5mm HSS Round Die in HSS.
Internal threads are cut with a tap in a drilled hole and external threads with a die on bar or rod, each turned by a matching wrench. Metric and imperial forms are both covered, along with sets for progressive cutting and repair tooling for chasing damaged or rusted threads back into service.
Suitable for use with steel and nonferrous materials.
For use in hand die stocks or die holder.
ISO2568 Standard
- Size: M22 x 2.5mm
- Die size: 55 x 22 mm
- Thread Direction: Righthand
- Material: HSS
- Finish: Uncoated
Manufactured by Harlingen and imported into Australia by Gamer.
