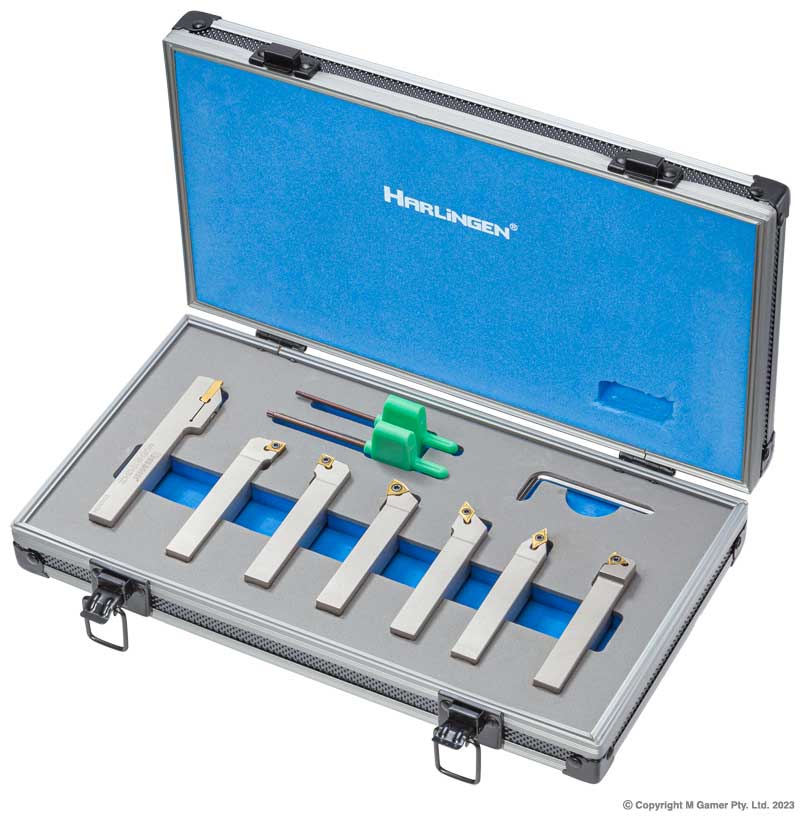

Harlingen H-11-126-T15 Indexable 7 Piece Nickel Plated Lathe Tool Set – 10mm
Harlingen H-11-126-T15 Indexable 7 Piece Nickel Plated Lathe Tool Set – 10mm. Tool holder SCLCR1010E06 – tool height 10 mm – insert CCMT060204.
Product successfully added to the Quote List
- Boring bars handle internal turning
- Coated carbide suits steel and stainless
- Left and right hand holders available
- Manufactured by Harlingen and imported into Australia by Gamer
- Replaceable inserts instead of regrinding tools
| Brand | Harlingen |
|---|---|
| Product Type | Lathe Tool Holder |
| Measurement System | Metric |
| Pack Type | Assortment pack |
| Weight | 0.87 kg |
| Cross Reference | Gamer: H-11-126-T15 | Barcode: 9346967111030 |
| Features & Benefits | Boring bars handle internal turning Coated carbide suits steel and stainless Left and right hand holders available Manufactured by Harlingen and imported into Australia by Gamer Replaceable inserts instead of regrinding tools |
The H-11-126-T15 is a Indexable 7 Piece Nickel Plated Lathe Tool Set – 10mm.
Indexable turning tools clamp a replaceable carbide insert in a steel shank, so a worn edge is rotated or swapped rather than reground. Holders come in left and right hand for facing and turning in either direction, with boring bars for internal work and inserts shaped for roughing, finishing and thread forms.
Supplied in foam lined aluminium case
Each toolholder comes with 1 insert
Corrosion resistant Nickel Plated Toolholders
- Tool Holder: SCLCR1010E06
- Tool Height: 10 mm
- Insert: CCMT060204
- Set includes:
- Right Handed Tool Holder – 70mm
- Left Handed Tool Holder – 70mm
- Handed Tool Holder – 70mm
- Neutral Right Tool Holder – 70mm
- Right Handed Tool Holder – 70mm
- Right Handed Groove Tool Holder – 100mm
- Right handed Tool Holder – 70mm
Manufactured by Harlingen and imported into Australia by Gamer.
