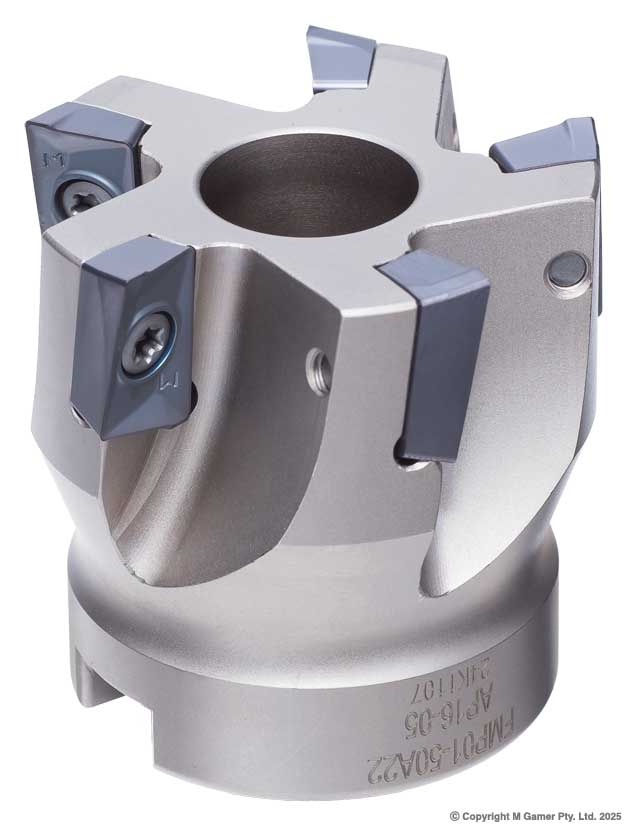

Harlingen H-11-374-S40 90deg APKT Indexable Nickel Plated Carbide Face Mill Set – 50mm
Harlingen H-11-374-S40 90deg APKT Indexable Nickel Plated Carbide Face Mill Set – 50mm. Diameter 50 mm – height 40 mm – hole diameter 22 mm.
Product successfully added to the Quote List
- End mills suit side and slot work
- Face mills clear flat surfaces quickly
- Indexable inserts cut tool cost per edge
- Manufactured by Harlingen and imported into Australia by Gamer
- Slotting profiling and facing from one family
| Brand | Harlingen |
|---|---|
| Product Type | Milling Cutter |
| Measurement System | Metric |
| Height | 40 mm |
| Diameter | 50 mm |
| Pack Type | Assortment pack |
| Weight | 1.03 kg |
| Cross Reference | Gamer: H-11-374-S40 | Barcode: 9346967109648 |
| Features & Benefits | End mills suit side and slot work Face mills clear flat surfaces quickly Indexable inserts cut tool cost per edge Manufactured by Harlingen and imported into Australia by Gamer Slotting profiling and facing from one family |
The H-11-374-S40 is a 90deg APKT Indexable Nickel Plated Carbide Face Mill Set – 50mm.
Material is removed on a mill by a rotating cutter fed across the work, and the cutter type follows the job. End mills slot, profile and side cut, face mills sweep a flat surface in one pass with indexable inserts, and countersinks finish holes ready for screw heads.
This multi-purpose 90 deg milling cutter fitted with coated micro-grain APKT inserts allows high depth of cut and feed per tooth.
Suitable for square shoulder face and side milling of steel, steel alloys, heat resistant steel, stainless steel and as well as cast iron.
Nickel plated body for corrosion and wear resistance
- Diameter: 50 mm
- Height: 40 mm
- Hole diameter: 22 mm
- Keyway Width: 10.4 mm
- 21 piece set includes:
- 1 x 50 mm Milling cutter
- 20 x TiAIN APKT16 carbide inserts
Manufactured by Harlingen and imported into Australia by Gamer.
Related Products
-
H-11-190-S07

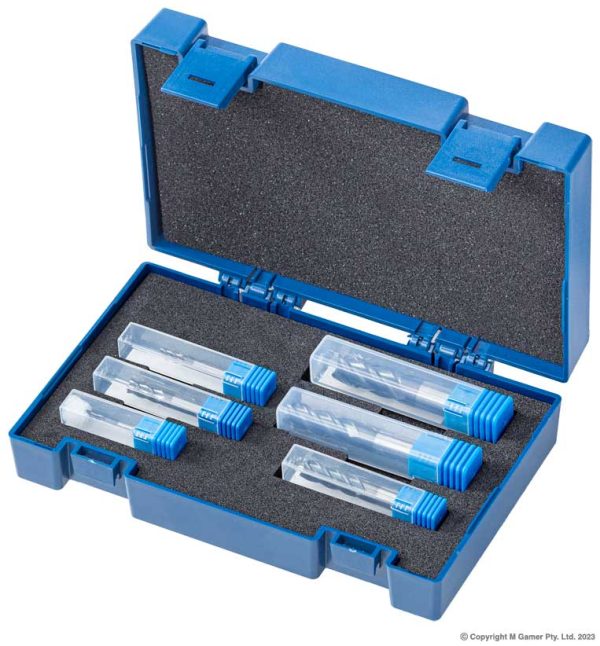

Harlingen H-11-190-S07 6 Piece Four Flute Solid TiAlN Carbide End Mill Set
