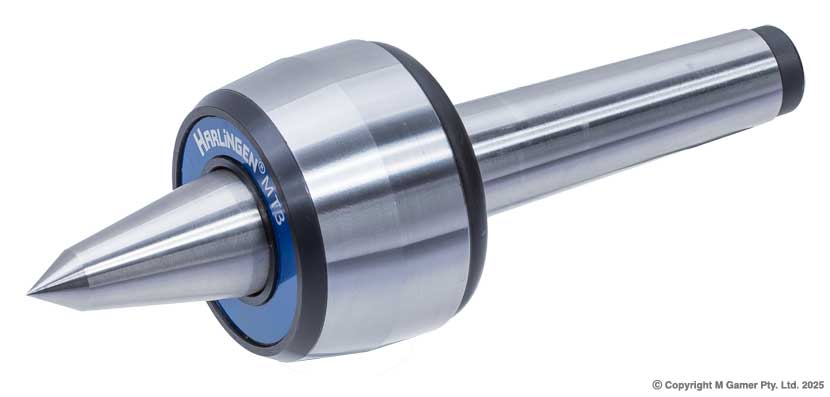

Harlingen H-41-023-003 MT3 High Precision Extended Point Live Center
Harlingen H-41-023-003 MT3 High Precision Extended Point Live Center. Taper MT3 – accuracy 0.005mm – max speed 5000 RPM.
Product successfully added to the Quote List
- Bearing lets the point turn with the job
- Extended points clear chuck jaws
- Manufactured by Harlingen and imported into Australia by Gamer
- Supports long work at the tailstock end
- Taper shank seats straight into the tailstock
| Brand | Harlingen |
|---|---|
| Product Type | Live Centre – Medium |
| Measurement System | Metric |
| Weight | 1.37 kg |
| Cross Reference | Gamer: H-41-023-003 | Barcode: 9346967110590 |
| Features & Benefits | Bearing lets the point turn with the job Extended points clear chuck jaws Manufactured by Harlingen and imported into Australia by Gamer Supports long work at the tailstock end Taper shank seats straight into the tailstock |
The H-41-023-003 is a MT3 High Precision Extended Point Live Center.
Long work turned between centres needs support at the tailstock end, and a live centre provides it on an internal bearing so the point turns with the job instead of rubbing. Extended point versions reach past a chuck jaw or into a recess, and the taper shank seats straight into the tailstock.
Vacuum heat treated steel alloy for high rigidity and durability
Suitable for CNC lathes and high-speed turning
Radial and thrust ball bearings backed up by a rear needle bearings provide high axial and radial load capabilities
60 deg tip with 30 deg relief angle
Hardened and ground components throughout
Suitable for medium-duty applications and high-speed turning
- Taper: MT3
- Accuracy: 0.005mm
- Max Speed: 5000 RPM
- Max Workpiece Load: 400kg
Manufactured by Harlingen and imported into Australia by Gamer.
Related Products
-
H-41-023-002
Harlingen H-41-023-002 MT2 High Precision Extended Point Live Center
Product successfully added to the Quote List
-
H-41-023-004
Harlingen H-41-023-004 MT4 High Precision Extended Point Live Center
Product successfully added to the Quote List
-

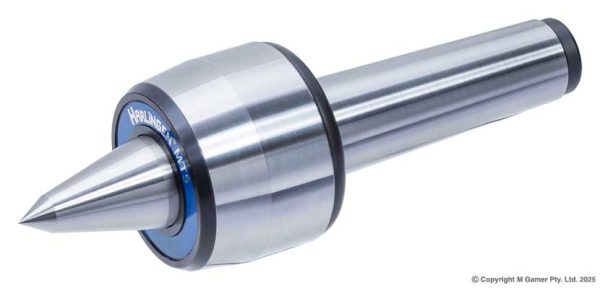

H-41-023-005
Harlingen H-41-023-005 MT5 High Precision Extended Point Live Center
Product successfully added to the Quote List
-
H-41-323-002
Harlingen H-41-323-002 MT2 High Precision Live Center
Product successfully added to the Quote List
-

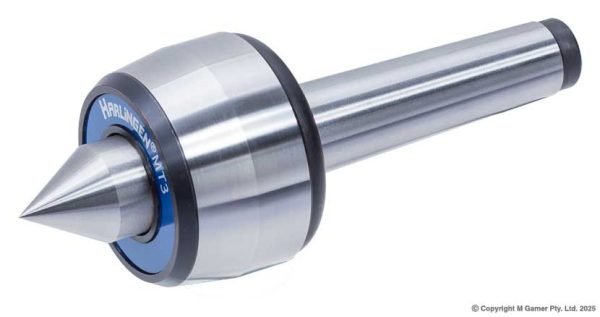

H-41-323-003
Harlingen H-41-323-003 MT3 High Precision Live Center
Product successfully added to the Quote List
-
H-41-323-004
Harlingen H-41-323-004 MT4 High Precision Live Center
Product successfully added to the Quote List
-

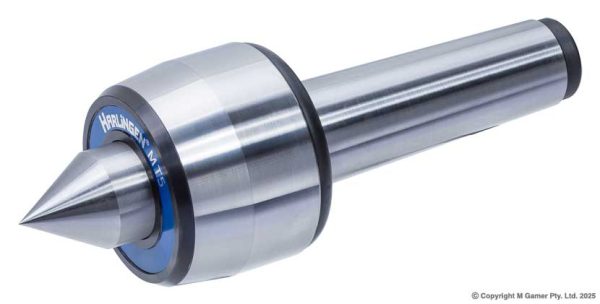

H-41-323-005
