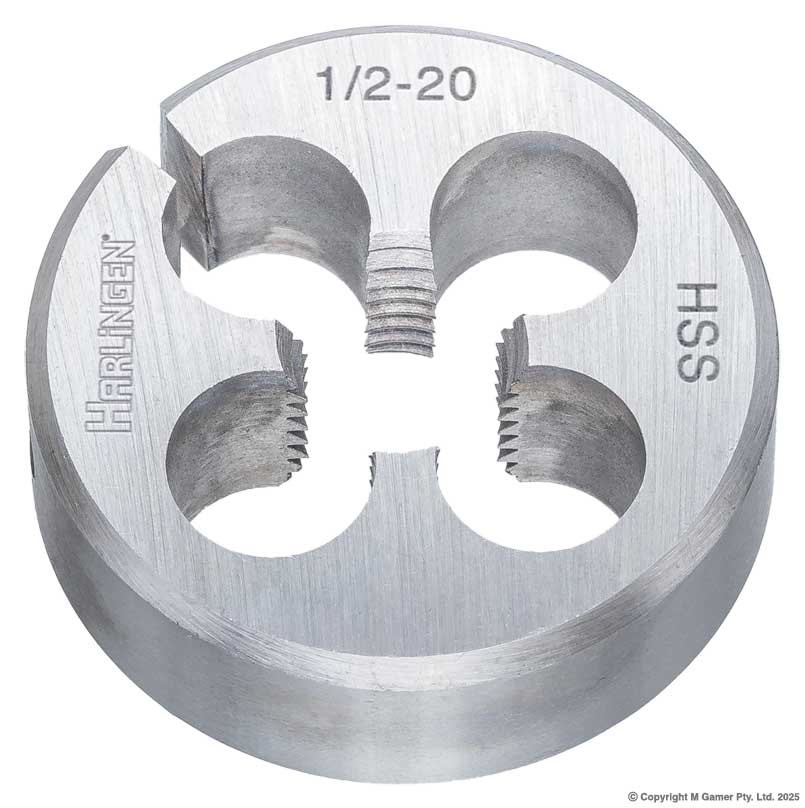

Harlingen H-581-22-129 1/2″ x 20 UNF HSS Round Die
Harlingen H-581-22-129 1/2″ x 20 UNF HSS Round Die. Size 1/2″ x 20TPI – die size 20 x 5 mm – thread direction right hand. HSS.
Product successfully added to the Quote List
- Cuts internal and external threads by hand
- HSS construction
- Manufactured by Harlingen and imported into Australia by Gamer
- Metric and imperial forms covered
- Repair tooling restores damaged threads
- Wrenches keep the cut square to the work
| Brand | Harlingen |
|---|---|
| Product Type | Imperial Dies |
| Measurement System | Imperial |
| Material | HSS |
| Size | 1/2" (12.7 mm) |
| Weight | 0.06 kg |
| Finish | Uncoated |
| Thread Direction | Right Hand |
| Cross Reference | Gamer: H-581-22-129 | Barcode: 9346967113065 |
| Features & Benefits | Cuts internal and external threads by hand HSS construction Manufactured by Harlingen and imported into Australia by Gamer Metric and imperial forms covered Repair tooling restores damaged threads Wrenches keep the cut square to the work |
The H-581-22-129 is a 1/2″ x 20 UNF HSS Round Die in HSS.
Internal threads are cut with a tap in a drilled hole and external threads with a die on bar or rod, each turned by a matching wrench. Metric and imperial forms are both covered, along with sets for progressive cutting and repair tooling for chasing damaged or rusted threads back into service.
Suitable for use with ferrous and non-ferrous materials.
ISO2568 Standard
- Size: 1/2″ x 20TPI
- Die size: 20 x 5 mm
- Thread Direction: Righthand
- Material: HSS
- Finish: Uncoated
Manufactured by Harlingen and imported into Australia by Gamer.
Related Products
-
H-12-100-A012

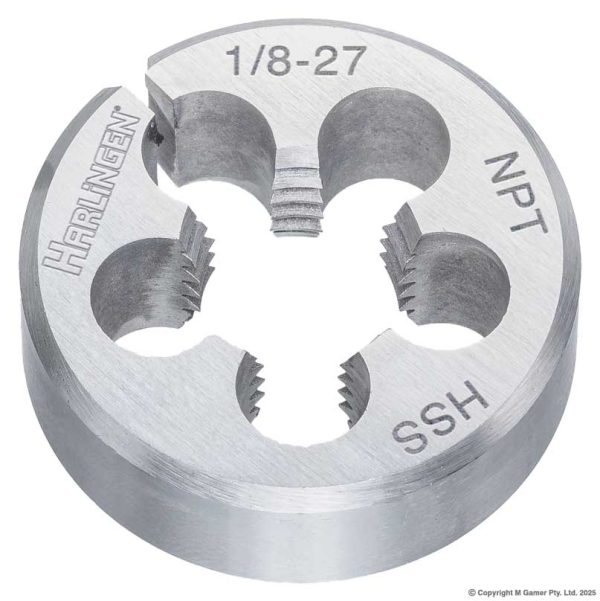

Harlingen H-12-100-A012 1/8″ NPT HSS Round Die
Product successfully added to the Quote List
-
H-581-22-108
Harlingen H-581-22-108 #4 x 40 UNC HSS Round Die
Product successfully added to the Quote List
-
H-581-22-112
Harlingen H-581-22-112 #6 x 32 UNC HSS Round Die
Product successfully added to the Quote List
-
H-581-22-114

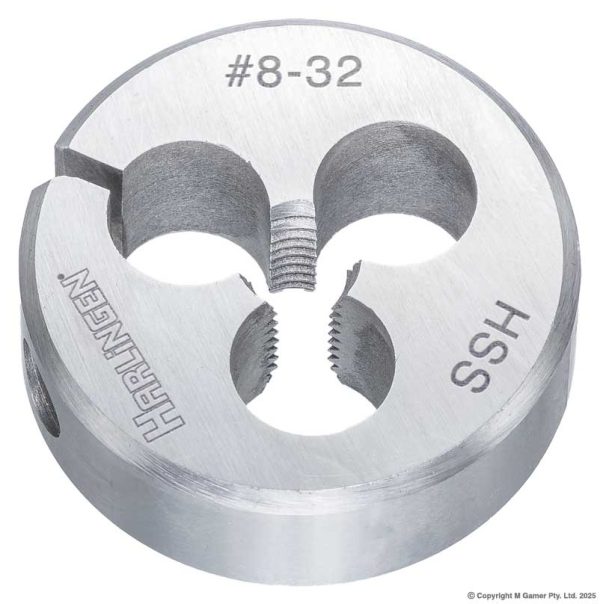

Harlingen H-581-22-114 #8 x 32 UNC HSS Round Die
