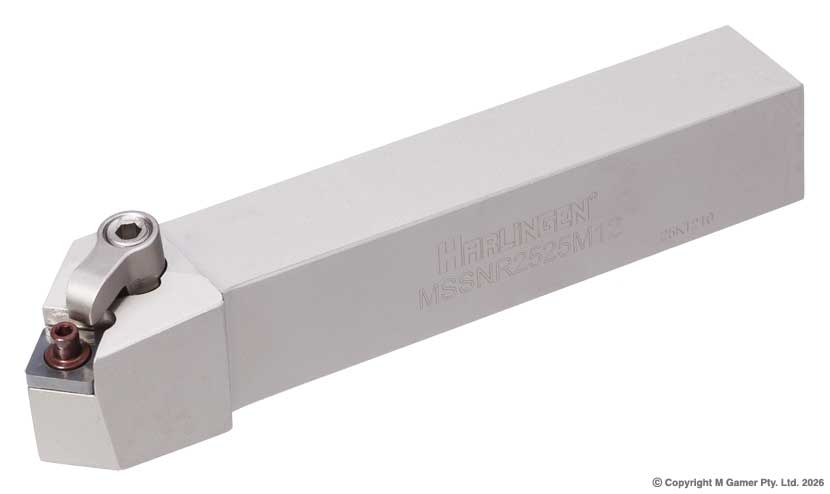

Harlingen MSSNR2525M12 25mm Right Handed Positive Rake SNMG Indexible Tool Holder
Harlingen MSSNR2525M12 25mm Right Handed Positive Rake SNMG Indexible Tool Holder. Insert SNMG1204** – retainer Through-hole & Top clamp – rake angle 5.5 deg / 8.5 deg.
Product successfully added to the Quote List
- Boring bars handle internal turning
- Coated carbide suits steel and stainless
- Left and right hand holders available
- Manufactured by Harlingen and imported into Australia by Gamer
- Replaceable inserts instead of regrinding tools
| Brand | Harlingen |
|---|---|
| Product Type | Right Hand Cutting Tool |
| Measurement System | Metric |
| Size | 25 mm |
| Length | 150 mm |
| Weight | 0.42 kg |
| Cross Reference | Gamer: MSSNR2525M12 | Barcode: 9346967115137 |
| Features & Benefits | Boring bars handle internal turning Coated carbide suits steel and stainless Left and right hand holders available Manufactured by Harlingen and imported into Australia by Gamer Replaceable inserts instead of regrinding tools |
The MSSNR2525M12 is a 25mm Right Handed Positive Rake SNMG Indexible Tool Holder.
Indexable turning tools clamp a replaceable carbide insert in a steel shank, so a worn edge is rotated or swapped rather than reground. Holders come in left and right hand for facing and turning in either direction, with boring bars for internal work and inserts shaped for roughing, finishing and thread forms.
Corrosion resistant nickel plating
One insert included with each tool holder
Top clamp and pin retains insert for heavy duty applications
All spare parts available
- Insert: SNMG1204**
- Retainer: Through-hole & Top clamp
- Rake Angle: 5.5 deg / 8.5 deg
- Lead Angle: 45 deg
- Shank Width: 25 mm
- Shank Height: 25 mm
- Length: 150 mm
- Head Width: 32 mm
- Head Length: 32 mm
- ISO: MSSNR2525M12
Manufactured by Harlingen and imported into Australia by Gamer.
