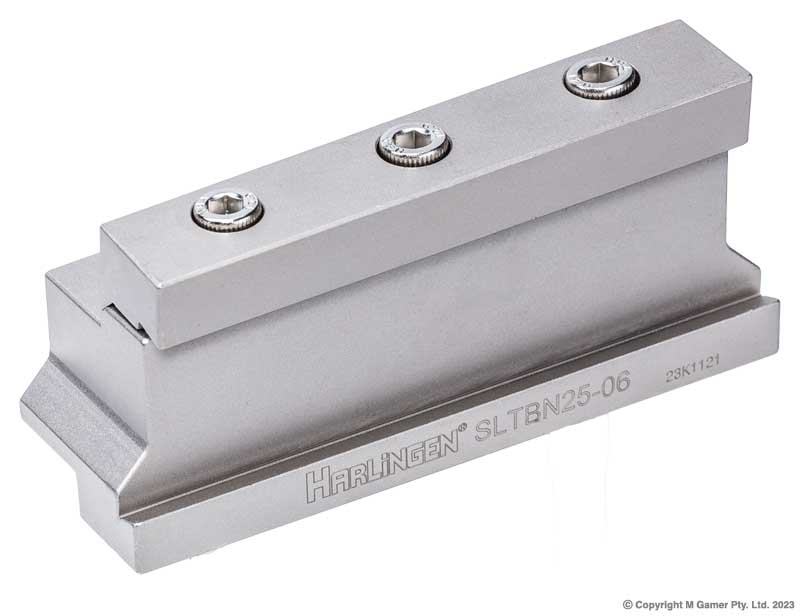

Harlingen SLTBN25-06 Self - Locking Cut - Off Tool Block - 25mm
SLTBN25-06

Images are for illustrative purposes only. Actual product may vary.

Harlingen

Harlingen SLTBN25-06 Self – Locking Cut – Off Tool Block – 25mm

Part Number: SLTBN25-06
Width 30 mm

Harlingen SLTBN25-06 Self – Locking Cut – Off Tool Block – 25mm. Length 75mm – height 34mm – width 30mm.

Qty:
  • Kits match blade holder and inserts
  • Manufactured by Harlingen and imported into Australia by Gamer
  • Parts off finished work cleanly
  • Replaceable coated edges reduce downtime
  • Same insert cuts grooves for circlips
Brand

Harlingen
Product Type

Carbide Inserts
Measurement System

Metric
Length

75 mm
Width

30 mm
Height

34 mm
Weight

1.04 kg
Cross Reference Gamer: SLTBN25-06 | Barcode: 9346967106524
Features & Benefits Kits match blade holder and inserts
Manufactured by Harlingen and imported into Australia by Gamer
Parts off finished work cleanly
Replaceable coated edges reduce downtime
Same insert cuts grooves for circlips

The SLTBN25-06 is a Self – Locking Cut – Off Tool Block – 25mm.

Separating a finished component from the bar still held in the chuck calls for a narrow blade fed straight in at centre height. Blade holders take replaceable coated carbide inserts that also cut grooves for circlips and O rings, and kits match a blade, holder and inserts to the toolpost.

  • Length: 75mm
  • Height: 34mm
  • Width: 30mm
  • Blade Width: 19.5mm
  • Clamping Block Size 25 x 25mm

Manufactured by Harlingen and imported into Australia by Gamer.
