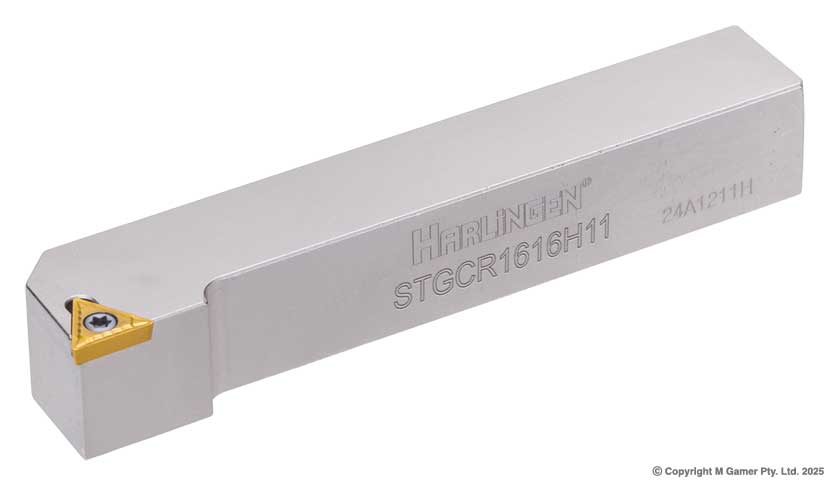

Harlingen STGCR1616H11 16mm Right Handed TCMT Indexible Tool Holder
Harlingen STGCR1616H11 16mm Right Handed TCMT Indexible Tool Holder. Insert TCMT1102** – retainer Screw (L60 – M2.5×5.2) – rake angle 0 deg.
Product successfully added to the Quote List
- Boring bars handle internal turning
- Coated carbide suits steel and stainless
- Left and right hand holders available
- Manufactured by Harlingen and imported into Australia by Gamer
- Replaceable inserts instead of regrinding tools
| Brand | Harlingen |
|---|---|
| Product Type | Right Hand Cutting Tool |
| Measurement System | Metric |
| Size | 16 mm |
| Length | 100 mm |
| Cross Reference | Gamer: STGCR1616H11 | Barcode: 9346967113522 |
| Features & Benefits | Boring bars handle internal turning Coated carbide suits steel and stainless Left and right hand holders available Manufactured by Harlingen and imported into Australia by Gamer Replaceable inserts instead of regrinding tools |
The STGCR1616H11 is a 16mm Right Handed TCMT Indexible Tool Holder.
Indexable turning tools clamp a replaceable carbide insert in a steel shank, so a worn edge is rotated or swapped rather than reground. Holders come in left and right hand for facing and turning in either direction, with boring bars for internal work and inserts shaped for roughing, finishing and thread forms.
Corrosion resistant nickel plating
One insert included with each tool holder
All spare parts available
- Insert: TCMT1102**
- Retainer: Screw (L60 – M2.5×5.2)
- Rake Angle: 0 deg
- Lead Angle: 90 deg
- Shank Width: 16 mm
- Shank Height: 16 mm
- Length: 100 mm
- Head Width: 20 mm
- Head Length: 16 mm
- ISO: STGCR1616H11
Manufactured by Harlingen and imported into Australia by Gamer.
