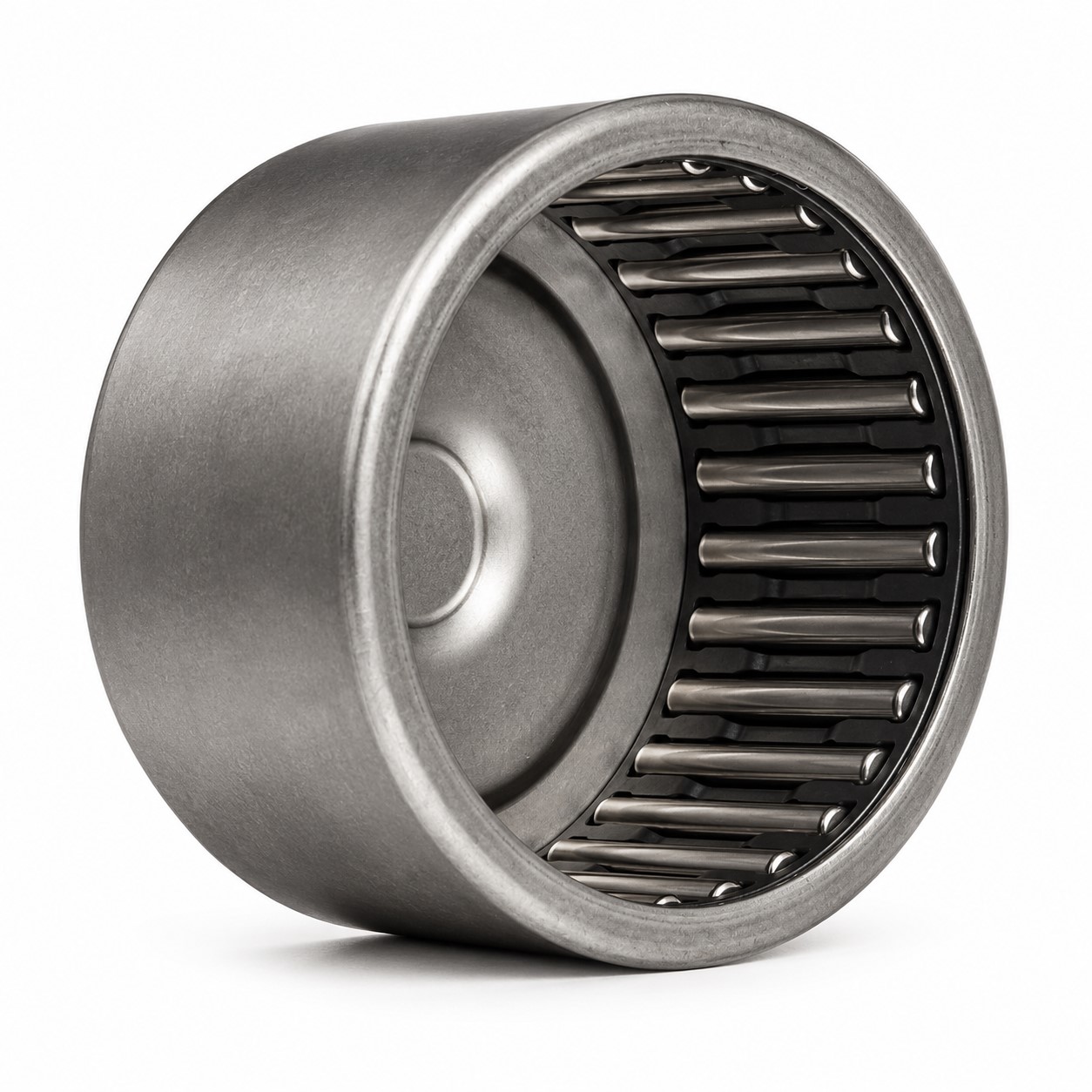

IKO BAM2610 Needle Roller Bearing 41.275×50.800×15.88mm (Closed End)
IKO BAM2610 drawn cup needle roller bearing, closed end. Bore 41.275mm, OD 50.800mm, width 15.88mm.
Product successfully added to the Quote List
- Closed end seals and protects the end of the shaft
- Drawn cup (shell type) needle roller bearing - thin-walled deep-drawn outer shell forms the raceway
- High radial load capacity from the needle roller complement
- IKO (Nippon Thompson) precision manufacture to JIS standards
- Lowest sectional height of any needle roller bearing for a very compact arrangement
- Maximum operating temperature approximately 140C
- Press-fit into the housing bore - no axial location fixtures required
- Use with a hardened shaft or IRB 2210 inner ring as the inner raceway
| Brand | IKO |
|---|---|
| Bearing Type | Drawn Cup Needle Roller Bearing |
| Series | BAM |
| Measurement System | Imperial |
| Inner Diameter (Bore) | 41.275 mm |
| Outer Diameter | 50.800 mm |
| Width | 15.88 mm |
| Configuration | Closed End |
| Material | Chrome Bearing Steel |
| Dynamic Load Rating (Cr) | 18900 N (18.9 kN) |
| Static Load Rating (C₀) | 30000 N (30.0 kN) |
| Limiting Speed (Grease) | 4800 rpm |
| Limiting Speed (Oil) | 8000 rpm |
| Compatible Inner Ring | IRB2210 |
| Weight | 0.0625 kg |
| Features & Benefits | Closed end seals and protects the end of the shaft Drawn cup (shell type) needle roller bearing - thin-walled deep-drawn outer shell forms the raceway High radial load capacity from the needle roller complement IKO (Nippon Thompson) precision manufacture to JIS standards Lowest sectional height of any needle roller bearing for a very compact arrangement Maximum operating temperature approximately 140C Press-fit into the housing bore - no axial location fixtures required Use with a hardened shaft or IRB 2210 inner ring as the inner raceway |
The IKO BAM2610 is a drawn cup (shell type) needle roller bearing with a closed end, for a 41.275mm shaft (imperial series). Its thin-walled, deep-drawn outer shell forms the outer raceway, giving the lowest sectional height of any needle bearing while carrying high radial loads in a compact, economical package. Boundary dimensions 41.275 x 50.800 x 15.88mm.
The closed-end type is completely closed on one side, sealing and protecting the end of the shaft. The bearing is press-fitted into the housing bore, so no axial location fixtures are needed; maximum operating temperature approximately 140C. Use with a hardened shaft or the IRB 2210 inner ring as the inner raceway. Manufactured by IKO (Nippon Thompson), Japan.
