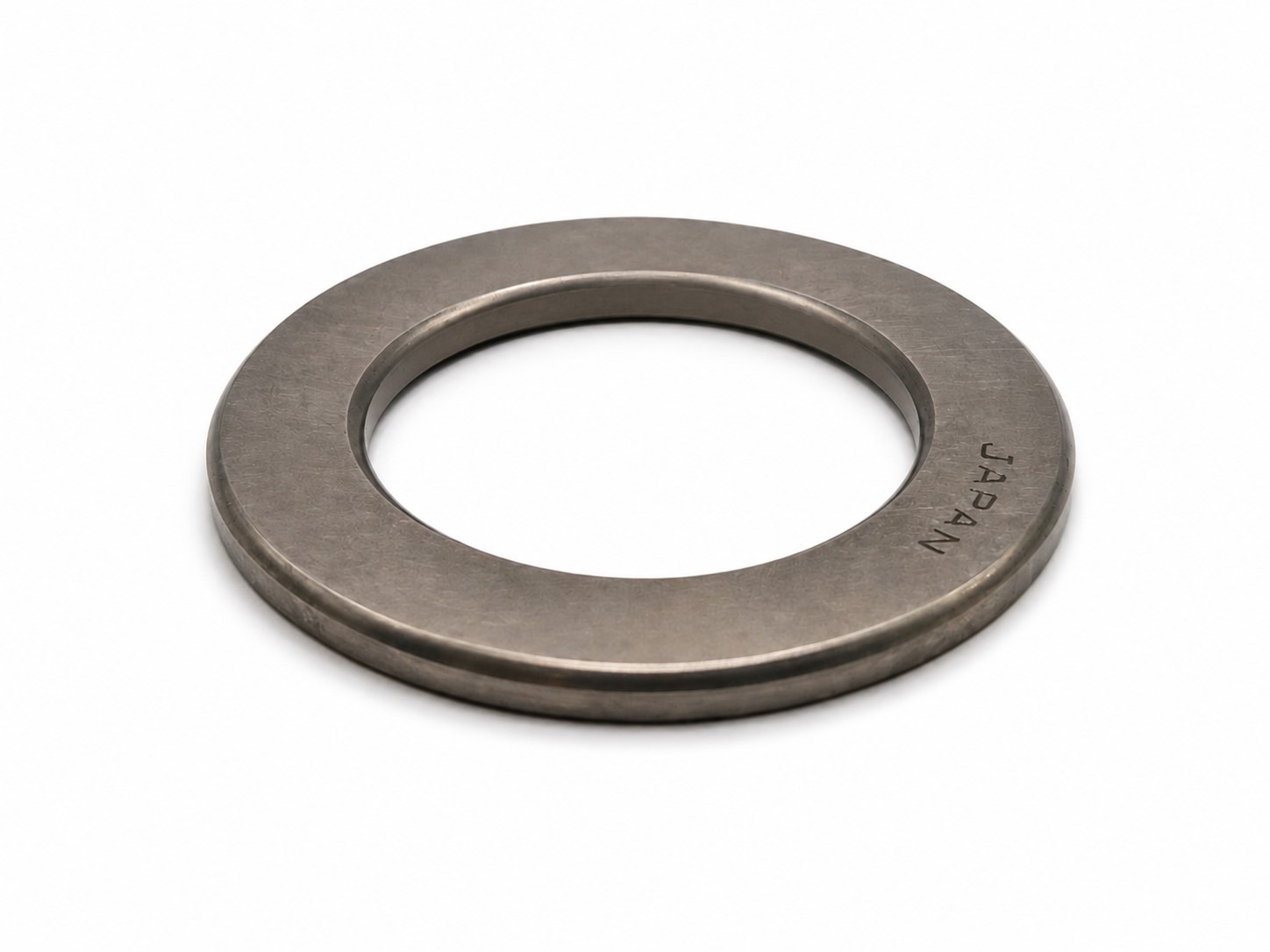

IKO GS100135 Outer Ring / Washer 100x135mm
IKO GS100135 housing-side outer ring raceway washer for NTB needle roller thrust bearings. 100mm bore x 135mm outside dia x 7mm width.
Product successfully added to the Quote List
- IKO precision manufacture to JIS B 1514 standards
- Interchangeable with matching size NTB, AS and WS components
- Outer ring (housing-side) raceway washer for NTB needle roller thrust bearings
- Provides a hardened raceway against the housing face
- Specially designed for use with NTB thrust needle roller bearings
- Through-hardened steel construction with chamfered edge
| Brand | IKO |
|---|---|
| Bearing Type | Outer Ring / Washer |
| Inner Diameter (Bore) | 100 mm |
| Outer Diameter | 135 mm |
| Material | Chrome Steel |
| Width (B) | 7 mm |
| Chamfer (rs min) | 1 mm |
| Compatible Parts | AS100135, NTB100135, WS100135 |
| Features & Benefits | IKO precision manufacture to JIS B 1514 standards Interchangeable with matching size NTB, AS and WS components Outer ring (housing-side) raceway washer for NTB needle roller thrust bearings Provides a hardened raceway against the housing face Specially designed for use with NTB thrust needle roller bearings Through-hardened steel construction with chamfered edge |
IKO GS100135 Outer Ring / Washer
The IKO GS100135 is a outer ring / washer forming part of the IKO Thrust Needle Roller Bearing system. These bearings consist of a steel-plate cage with needle rollers and can be combined with interchangeable raceway components – the AS thrust washer, GS outer ring and WS inner ring – selected to suit the hardness of the mating shaft and housing surfaces.
Compatible Components (Size 100135)
This 100135 size component is designed to be used with: AS100135, NTB100135, WS100135.
Manufactured by IKO (Nippon Thompson) to JIS B 1514 dimensional standards.
