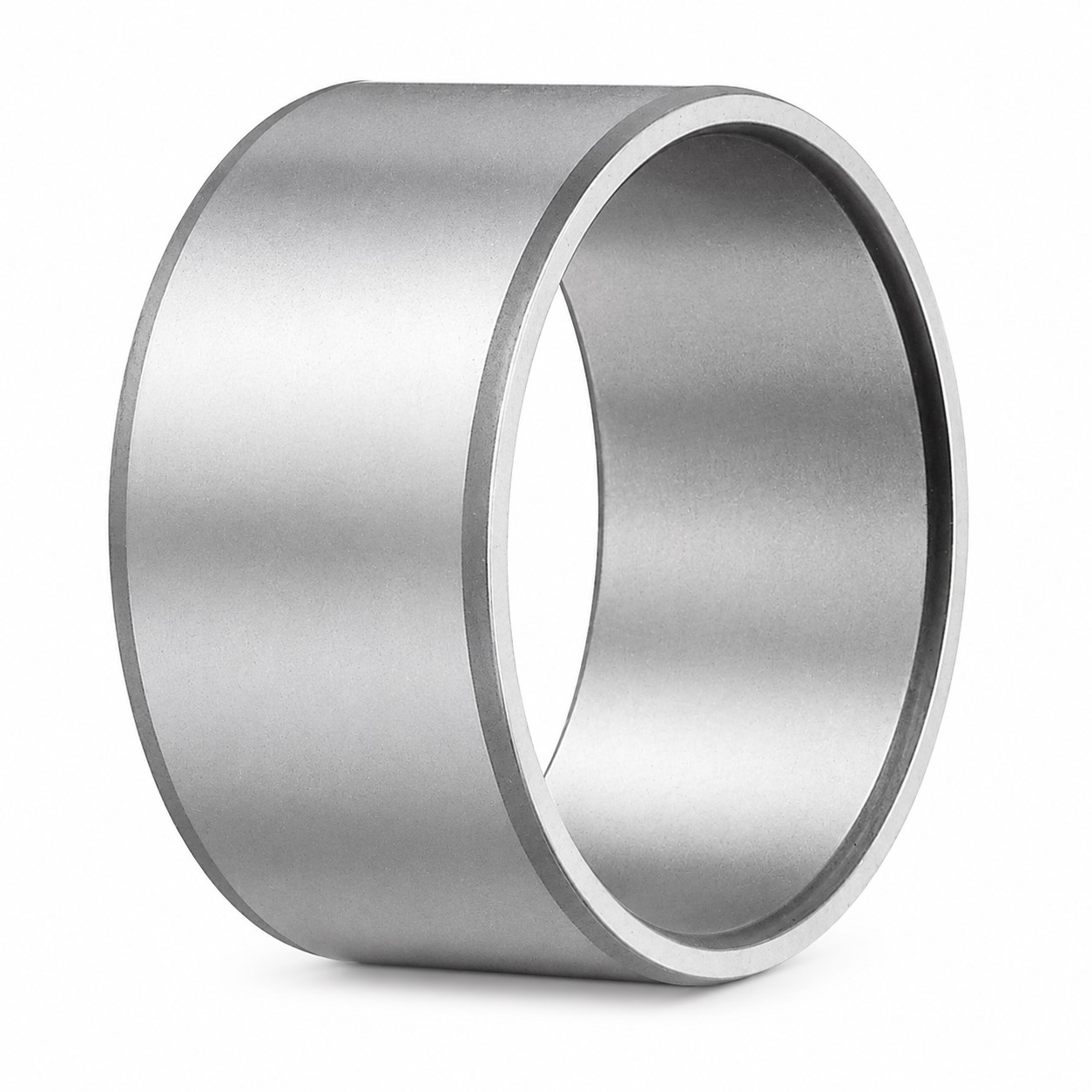

IKO IRT2038-1 Needle Roller Bearing Inner Ring 20x25x38.5mm
IKO IRT2038-1 inner ring for needle roller bearings. Bore 20mm, outer 25mm, width 38.5mm. Hardened raceway for shell-type needle bearings.
Product successfully added to the Quote List
- Bore 20mm, outer 25mm, width 38.5mm
- Fits TLAW 2538Z
- IKO (Nippon Thompson) precision manufacture to JIS standards
- Precision inner ring providing a hardened, ground raceway for shell-type needle roller bearings
- Use where the shaft cannot be hardened or ground
| Brand | IKO |
|---|---|
| Bearing Type | Needle Roller Inner Ring |
| Series | IRT |
| Measurement System | Metric |
| Inner Diameter (Bore) | 20 mm |
| Outer Diameter | 25 mm |
| Width | 38.5 mm |
| Material | Chrome Bearing Steel |
| Compatible Bearings | TLAW2538Z |
| Weight | 0.0525 kg |
| Features & Benefits | Bore 20mm, outer 25mm, width 38.5mm Fits TLAW 2538Z IKO (Nippon Thompson) precision manufacture to JIS standards Precision inner ring providing a hardened, ground raceway for shell-type needle roller bearings Use where the shaft cannot be hardened or ground |
The IKO IRT2038-1 is a precision inner ring for drawn cup (shell type) needle roller bearings, providing a hardened and ground inner raceway where the shaft cannot be hardened or ground directly. Dimensions: bore 20mm, outer diameter 25mm, width 38.5mm (metric series).
Fits the matching needle roller bearing (TLAW 2538Z). Manufactured by IKO (Nippon Thompson), Japan, to JIS precision standards.
