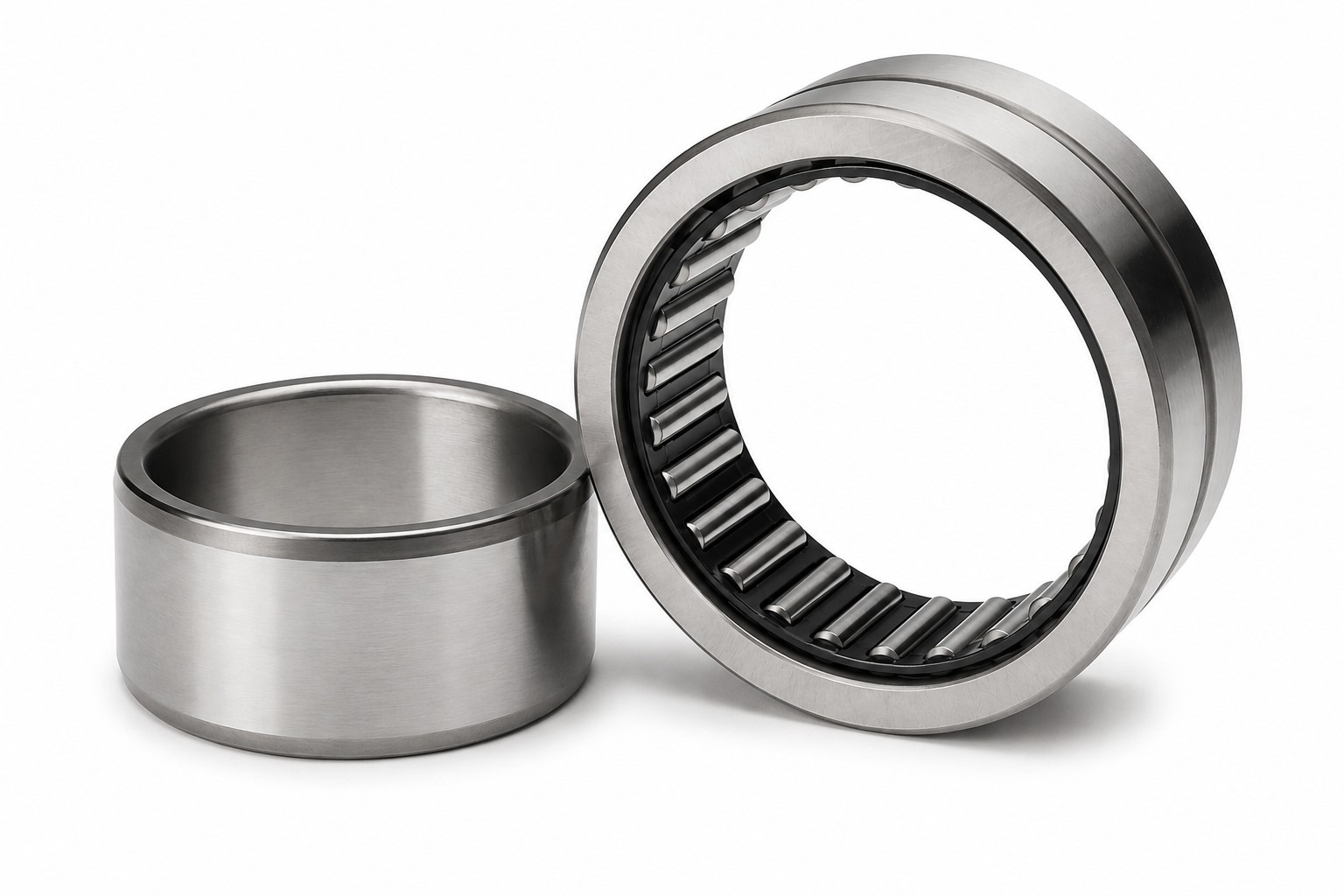

IKO TAFI172916 Machined Needle Roller Bearing 17x29x16mm (With Inner Ring)
IKO TAFI172916 machined-type needle roller bearing, with inner ring. Bore 17mm, OD 29mm, width 16mm. High radial load capacity.
Product successfully added to the Quote List
- High running accuracy and rigidity for demanding industrial drives
- IKO (Nippon Thompson) precision manufacture to JIS standards
- Machined-type needle roller bearing - thick, rigid machined and ground outer ring
- Matching inner ring: LRT 172116
- Supplied with an integral inner ring for mounting on unhardened shafts
- Very high radial load and shock capacity in a compact cross section
| Brand | IKO |
|---|---|
| Bearing Type | Machined Needle Roller Bearing |
| Series | TAFI |
| Measurement System | Metric |
| Inner Diameter (Bore) | 17 mm |
| Outer Diameter | 29 mm |
| Width | 16 mm |
| Configuration | With Inner Ring |
| Material | Chrome Bearing Steel |
| Dynamic Load Rating (Cr) | 14400 N (14.4 kN) |
| Static Load Rating (C₀) | 20000 N (20.0 kN) |
| Limiting Speed (Grease) | 11400 rpm |
| Limiting Speed (Oil) | 19000 rpm |
| Fillet Radius (r min) | 0.3 mm |
| Compatible Inner Ring | LRT172116 |
| Weight | 0.0435 kg |
| Features & Benefits | High running accuracy and rigidity for demanding industrial drives IKO (Nippon Thompson) precision manufacture to JIS standards Machined-type needle roller bearing - thick, rigid machined and ground outer ring Matching inner ring: LRT 172116 Supplied with an integral inner ring for mounting on unhardened shafts Very high radial load and shock capacity in a compact cross section |
The IKO TAFI172916 is a machined-type needle roller bearing with its own inner ring, for a 17mm shaft (metric series). Machined and ground from solid bearing steel, it has a thick, rigid outer ring that carries very high radial loads and shock in a compact section. Boundary dimensions 17 x 29 x 16mm.
The integral inner ring provides a ready raceway so the bearing can mount directly on a soft or unhardened shaft. Suitable for high radial loads in gearboxes, pumps, and industrial machinery. Compatible inner ring: LRT 172116. Manufactured by IKO (Nippon Thompson), Japan.
