Images are for illustrative purposes only. Actual product may vary.
KCM 08B-1OL BS Offset/Half Link – 1/2″ Pitch Simplex
KCM 08B-1OL BS offset/half link. 1/2″ (12.7mm) pitch – simplex. 8.51mm roller diameter – 7.75mm width between inner plates. Sold each.
Product successfully added to the Quote List
- BS precision offset/half link to ISO 606-B - 1/2" pitch (12.7mm)
- Manufactured by KCM in Japan and imported into Australia by Finer Power Transmissions
- Plate and pin dimensions match KCM 08B-1 chain exactly
- Simplex - 1 strand construction
- Sold each
- Standard link for joining or repairing a chain run
| Brand | KCM |
|---|---|
| Product Type | Offset/Half Link |
| Series | 08B |
| Configuration | Simplex |
| Pin Type | Standard |
| Pitch | 12.7 mm |
| Roller Diameter | 8.51 mm |
| Width | 7.75 mm |
| Cross Reference | ISO 606: 08B-1 | DIN 8187: 08B-1 | BS 228: 08B-1 | KCM: 08B-1OL/KCM |
| Features & Benefits | BS precision offset/half link to ISO 606-B - 1/2" pitch (12.7mm) Manufactured by KCM in Japan and imported into Australia by Finer Power Transmissions Plate and pin dimensions match KCM 08B-1 chain exactly Simplex - 1 strand construction Sold each Standard link for joining or repairing a chain run |
The KCM 08B-1OL is a BS simplex precision offset/half link with 1/2″ (12.7mm) pitch – 8.51mm roller diameter and 7.75mm width between inner plates. Pin diameter 4.45mm – plate thickness 1.6mm – plate height 11.7mm.
An offset link – also called a half link – adds a single pitch to a chain. It lets an odd number of pitches be made up without cutting the chain back to an even length – useful where the centre distance of a drive is fixed.
Please note: this offset/half link is sold each. It suits KCM 08B-1 chain and any other BS chain of the same size.
Cross reference (guide only – verify pitch and dimensions before ordering):
- ISO 606: 08B-1
- DIN 8187: 08B-1
- BS 228: 08B-1
Manufactured by KCM in Japan and imported into Australia by Finer Power Transmissions.
Related Products
-

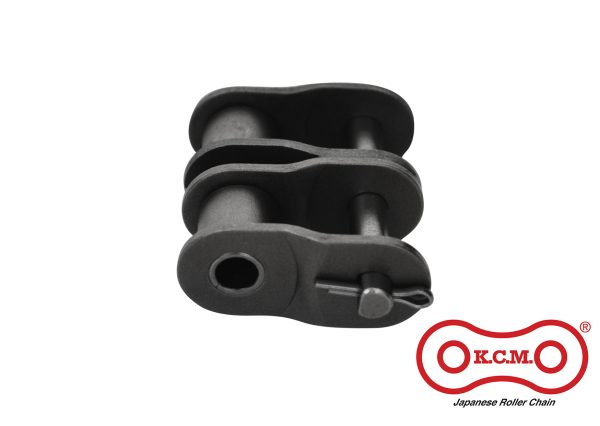

08B-2OL/KCM
KCM 08B-2OL BS Offset/Half Link – 1/2″ Pitch Duplex
12.7 mm
Product successfully added to the Quote List
-
08B-3OL/KCM
KCM 08B-3OL BS Offset/Half Link – 1/2″ Pitch Triplex
12.7 mm
Product successfully added to the Quote List
-

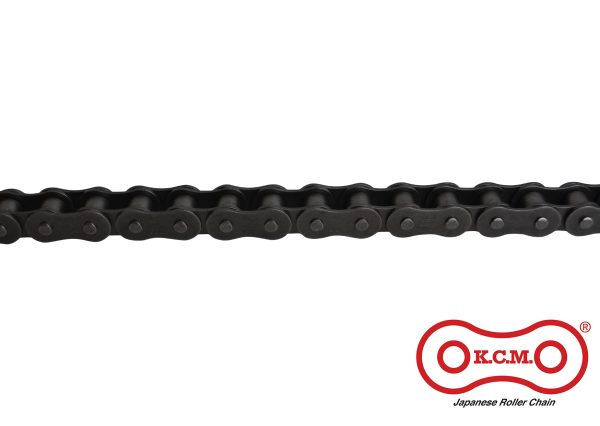

08B-1/KCM
KCM 08B-1 BS Roller Chain – 1/2″ Pitch Simplex – 10FT Box
12.7 mm
Product successfully added to the Quote List
-

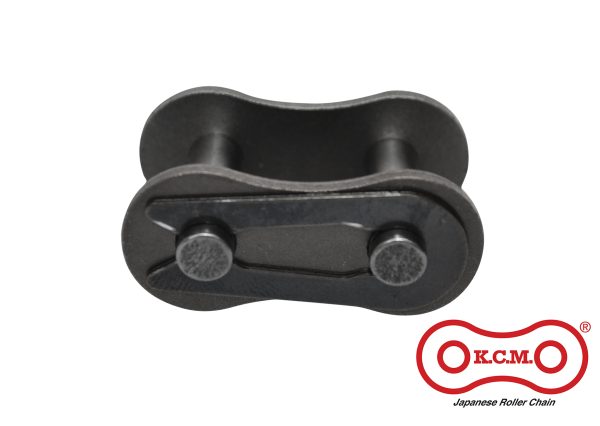

08B-1CL/KCM
KCM 08B-1CL BS Connecting Link – 1/2″ Pitch Simplex
12.7 mm
Product successfully added to the Quote List
-
08B-1X100/KCM
KCM 08B-1X100 BS Roller Chain – 1/2″ Pitch Simplex – 100FT Roll
12.7 mm
Product successfully added to the Quote List
-

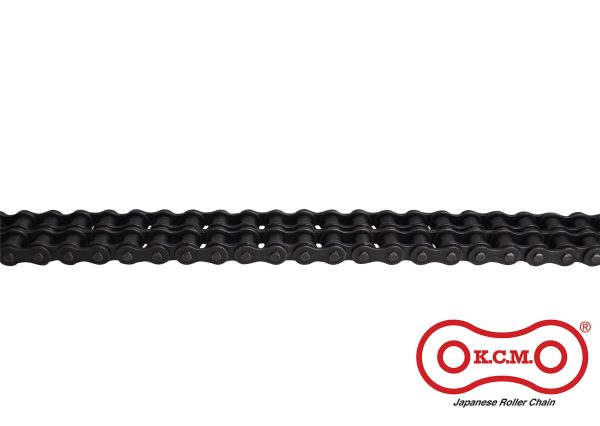

08B-2/KCM
KCM 08B-2 BS Roller Chain – 1/2″ Pitch Duplex – 10FT Box
12.7 mm
Product successfully added to the Quote List
-
08B-2CL/KCM
KCM 08B-2CL BS Connecting Link – 1/2″ Pitch Duplex
12.7 mm
Product successfully added to the Quote List
-

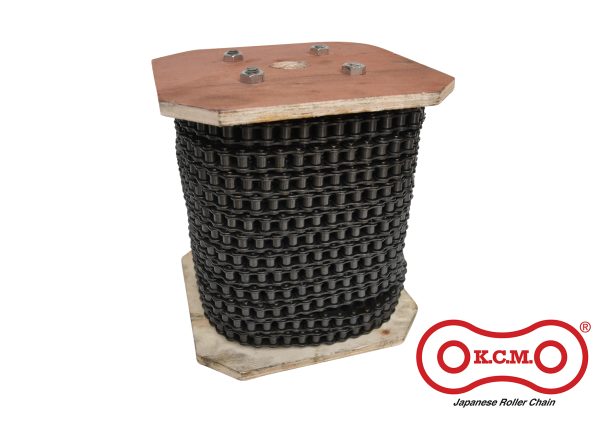

08B-2X100/KCM
