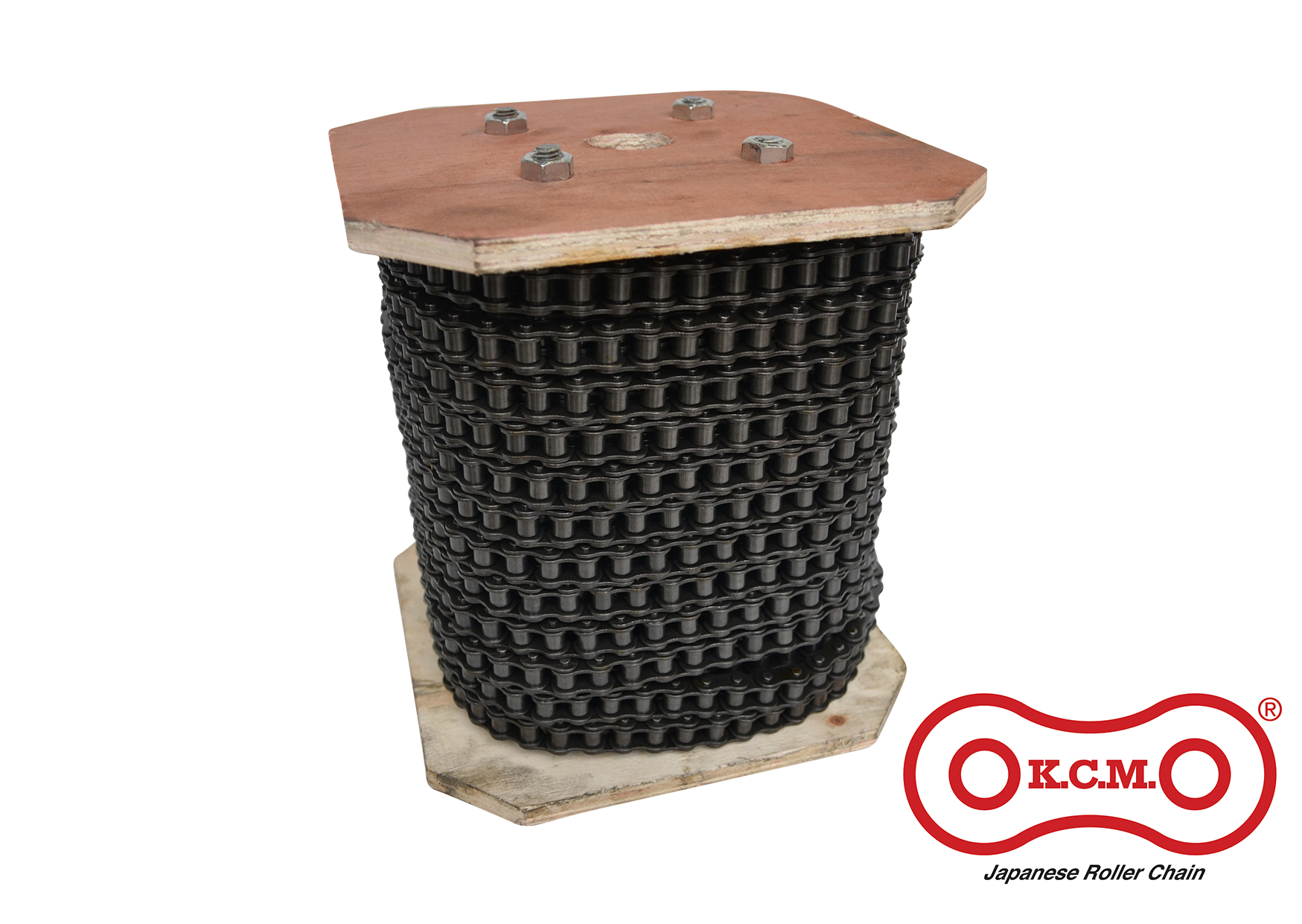

KCM 10B-1X100 BS Roller Chain - 5/8" Pitch Simplex - 100FT Roll
10B-1X100/KCM

Images are for illustrative purposes only. Actual product may vary.

KCM

KCM 10B-1X100 BS Roller Chain – 5/8″ Pitch Simplex – 100FT Roll

Part Number: 10B-1X100/KCM
Pitch 15.88 mm

KCM 10B-1X100 BS roller chain. 5/8″ (15.88mm) pitch – simplex. 10.16mm roller diameter – 9.65mm width between inner plates. Supplied as a complete 100FT roll – priced per foot but not cut to length.

Qty:
  • BS precision roller chain to ISO 606-B - 5/8" pitch (15.88mm)
  • Heat-treated pins and bushes for wear resistance and low elongation in service
  • Manufactured by KCM in Japan and imported into Australia by Finer Power Transmissions
  • Matching connecting links and offset/half links available in the same size
  • Minimum tensile strength 22.2 kN
  • Simplex - 1 strand construction
  • Solid bush and roller construction spreads load over the full bearing area
  • Supplied as a complete 100FT roll - priced per foot but not cut to custom lengths
Brand

KCM
Product Type

Roller Chain
Series

10B
Configuration

Simplex
Pin Type

Standard
Pitch

15.88 mm
Roller Diameter

10.16 mm
Width

9.65 mm
Minimum Tensile Strength

22200 N (22.2 kN)
Weight per Metre

0.91 kg/m
Supply Form

100FT Roll
Cross Reference ISO 606: 10B-1 | DIN 8187: 10B-1 | BS 228: 10B-1 | KCM: 10B-1X100/KCM
Features & Benefits BS precision roller chain to ISO 606-B - 5/8" pitch (15.88mm)
Heat-treated pins and bushes for wear resistance and low elongation in service
Manufactured by KCM in Japan and imported into Australia by Finer Power Transmissions
Matching connecting links and offset/half links available in the same size
Minimum tensile strength 22.2 kN
Simplex - 1 strand construction
Solid bush and roller construction spreads load over the full bearing area
Supplied as a complete 100FT roll - priced per foot but not cut to custom lengths

The KCM 10B-1X100 is a BS simplex precision roller chain with 5/8″ (15.88mm) pitch – 10.16mm roller diameter and 9.65mm width between inner plates. Pin diameter 5.08mm – plate thickness 1.5mm – plate height 14.6mm.

Minimum tensile strength 22.2 kN to ISO 606-B – KCM minimum rated tensile strength 22.9 kN – approximate weight 0.91 kg/m.

Precision roller chain transmits power between sprockets by positive engagement – giving a constant drive ratio with no slip. Solid bushes and rollers spread the load across the full bearing area – and heat-treated pins hold their surface hardness so the chain resists elongation over a long service life.

Please note: this chain is supplied as a complete 100FT roll and is not cut to length. The price is worked out per foot – but the full roll is the unit of sale and cannot be split. Connecting links and offset/half links are ordered separately.

Cross reference (guide only – verify pitch and dimensions before ordering):

  • ISO 606: 10B-1
  • DIN 8187: 10B-1
  • BS 228: 10B-1

Manufactured by KCM in Japan and imported into Australia by Finer Power Transmissions.
