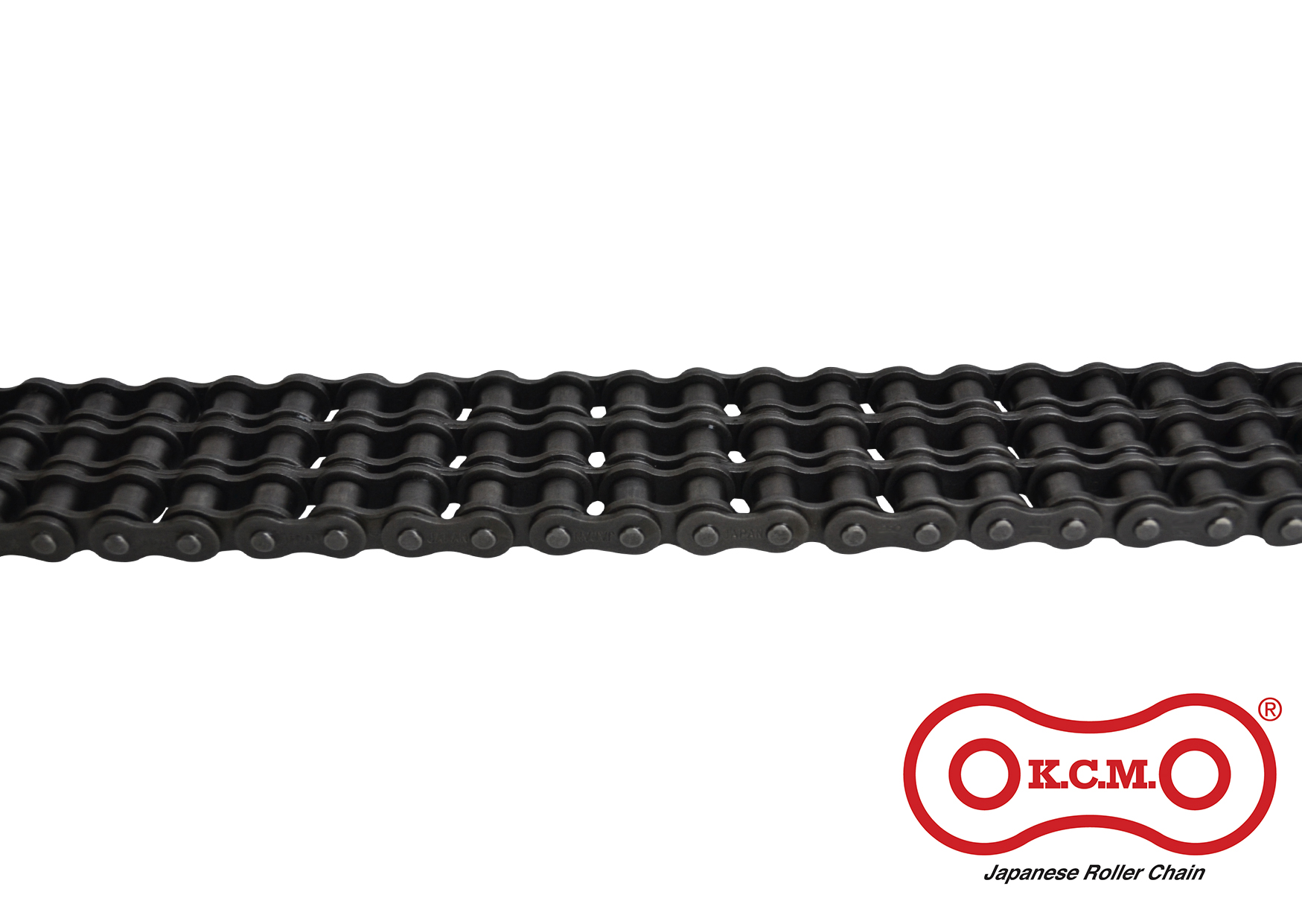

KCM 160-3 ASA Roller Chain – 2″ Pitch Triplex – 10FT Box
KCM 160-3 ASA roller chain. 2″ (50.8mm) pitch – triplex. 28.58mm roller diameter – 31.75mm width between inner plates. Supplied as a complete 10FT box – priced per foot but not cut to length.
Product successfully added to the Quote List
- ASA precision roller chain to ANSI B29.1 - 2" pitch (50.8mm)
- Heat-treated pins and bushes for wear resistance and low elongation in service
- Manufactured by KCM in Japan and imported into Australia by Finer Power Transmissions
- Matching connecting links and offset/half links available in the same size
- Minimum tensile strength 680.4 kN
- Solid bush and roller construction spreads load over the full bearing area
- Supplied as a complete 10FT box - priced per foot but not cut to custom lengths
- Triplex - 3 strand construction
| Brand | KCM |
|---|---|
| Product Type | Roller Chain |
| Series | 160 |
| Configuration | Triplex |
| Pin Type | Standard |
| Pitch | 50.8 mm |
| Roller Diameter | 28.58 mm |
| Width | 31.75 mm |
| Minimum Tensile Strength | 680400 N (680.4 kN) |
| Weight per Metre | 30.02 kg/m |
| Supply Form | 10FT Box |
| Cross Reference | ANSI / ASA: 160-3 | ISO 606: 32A-1 | DIN 8188: 32A-1 | JIS B 1801: RS160 | KCM: 160-3/KCM |
| Features & Benefits | ASA precision roller chain to ANSI B29.1 - 2" pitch (50.8mm) Heat-treated pins and bushes for wear resistance and low elongation in service Manufactured by KCM in Japan and imported into Australia by Finer Power Transmissions Matching connecting links and offset/half links available in the same size Minimum tensile strength 680.4 kN Solid bush and roller construction spreads load over the full bearing area Supplied as a complete 10FT box - priced per foot but not cut to custom lengths Triplex - 3 strand construction |
The KCM 160-3 is an ASA triplex precision roller chain with 2″ (50.8mm) pitch – 28.58mm roller diameter and 31.75mm width between inner plates. Pin diameter 14.29mm – plate thickness 6.4mm – plate height 46.7mm.
Minimum tensile strength 680.4 kN to ANSI B29.1 – approximate weight 30.02 kg/m – transverse pitch 58.55mm.
Precision roller chain transmits power between sprockets by positive engagement – giving a constant drive ratio with no slip. Solid bushes and rollers spread the load across the full bearing area – and heat-treated pins hold their surface hardness so the chain resists elongation over a long service life.
Please note: this chain is supplied as a complete 10FT box and is not cut to length. The price is worked out per foot – but the full box is the unit of sale and cannot be split. Connecting links and offset/half links are ordered separately.
Cross reference (guide only – verify pitch and dimensions before ordering):
- ANSI / ASA: 160-3
- ISO 606: 32A-1
- DIN 8188: 32A-1
- JIS B 1801: RS160
Manufactured by KCM in Japan and imported into Australia by Finer Power Transmissions.
