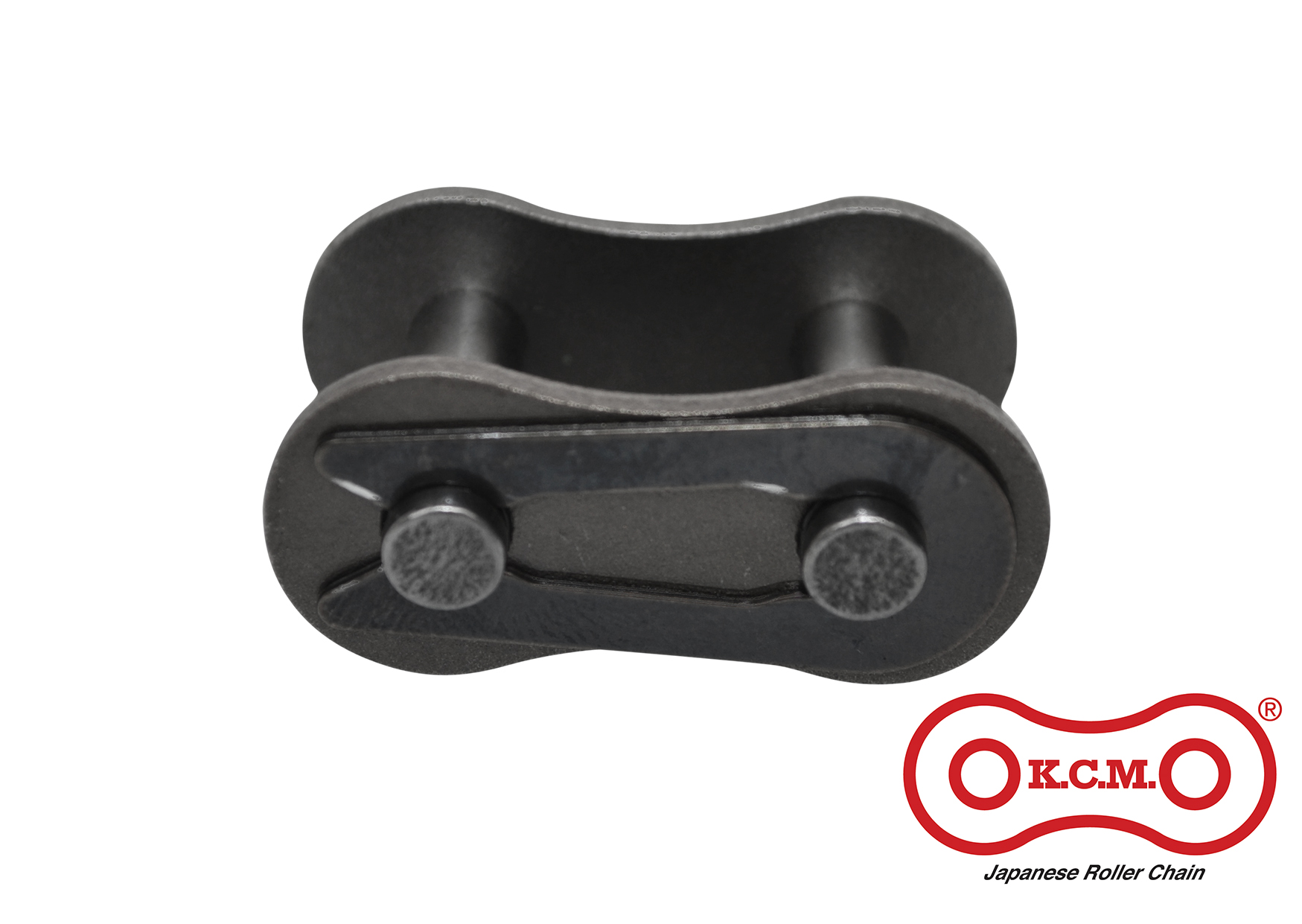

KCM 60-1CL ASA Connecting Link – 3/4″ Pitch Simplex
KCM 60-1CL ASA connecting link. 3/4″ (19.05mm) pitch – simplex. 11.91mm roller diameter – 12.7mm width between inner plates. Sold each.
Product successfully added to the Quote List
- ASA precision connecting link to ANSI B29.1 - 3/4" pitch (19.05mm)
- Manufactured by KCM in Japan and imported into Australia by Finer Power Transmissions
- Plate and pin dimensions match KCM 60-1 chain exactly
- Simplex - 1 strand construction
- Sold each
- Standard link for joining or repairing a chain run
| Brand | KCM |
|---|---|
| Product Type | Connecting Link |
| Series | 60 |
| Configuration | Simplex |
| Pin Type | Standard |
| Pitch | 19.05 mm |
| Roller Diameter | 11.91 mm |
| Width | 12.7 mm |
| Cross Reference | ANSI / ASA: 60-1 | ISO 606: 12A-1 | DIN 8188: 12A-1 | JIS B 1801: RS60 | KCM: 60-1CL/KCM |
| Features & Benefits | ASA precision connecting link to ANSI B29.1 - 3/4" pitch (19.05mm) Manufactured by KCM in Japan and imported into Australia by Finer Power Transmissions Plate and pin dimensions match KCM 60-1 chain exactly Simplex - 1 strand construction Sold each Standard link for joining or repairing a chain run |
The KCM 60-1CL is an ASA simplex precision connecting link with 3/4″ (19.05mm) pitch – 11.91mm roller diameter and 12.7mm width between inner plates. Pin diameter 5.96mm – plate thickness 2.4mm – plate height 17.5mm.
A connecting link joins the two ends of a chain to close the loop. The link plate and pin dimensions match the parent chain exactly – so the joint carries the same load and runs on the same sprocket without interference.
Please note: this connecting link is sold each. It suits KCM 60-1 chain and any other ASA chain of the same size.
Cross reference (guide only – verify pitch and dimensions before ordering):
- ANSI / ASA: 60-1
- ISO 606: 12A-1
- DIN 8188: 12A-1
- JIS B 1801: RS60
Manufactured by KCM in Japan and imported into Australia by Finer Power Transmissions.
