Images are for illustrative purposes only. Actual product may vary.

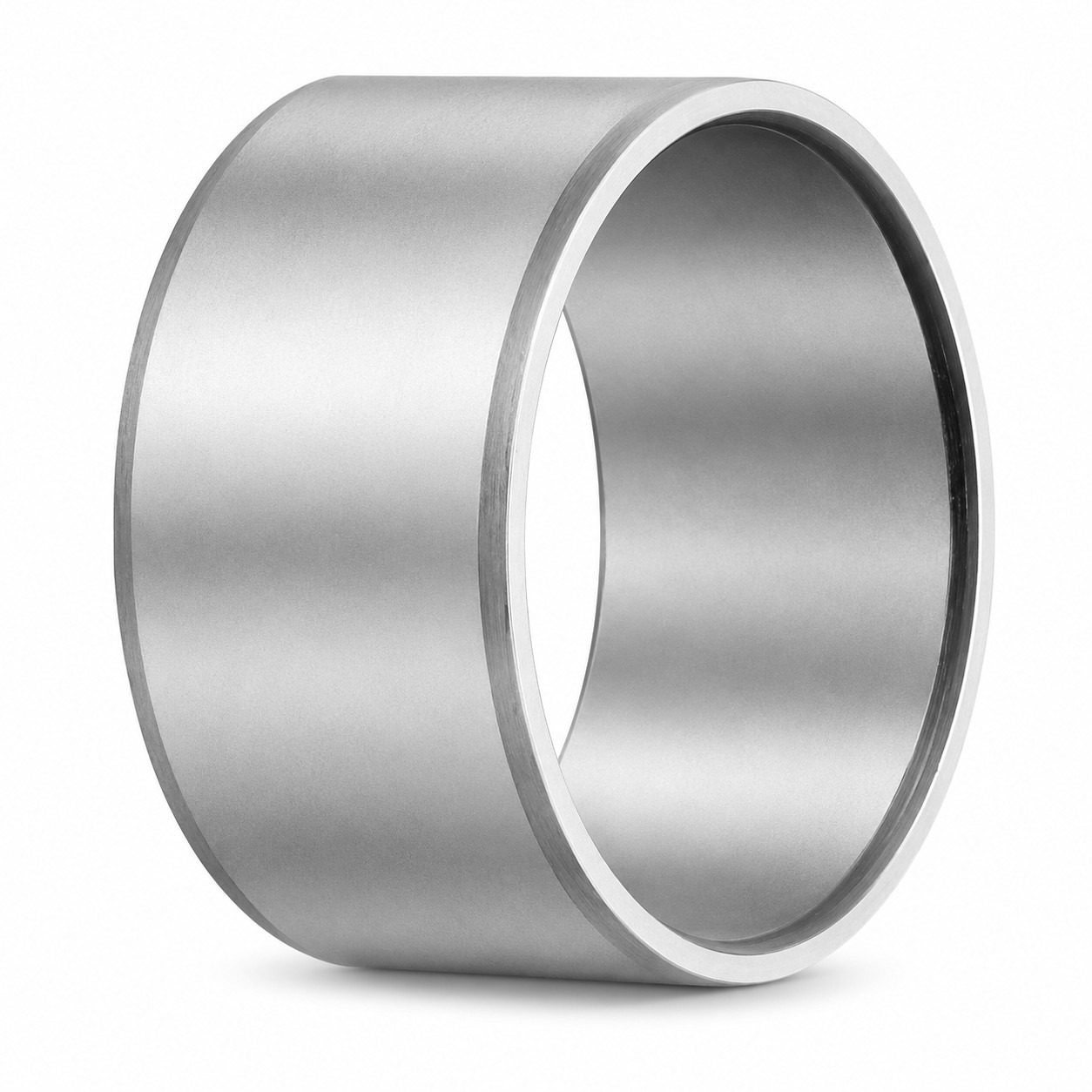

KOYO JR20x25x20 Machined Needle Roller Inner Ring 20x25x20mm
KOYO JR20x25x20 inner ring for machined-type needle roller bearings. Bore 20mm, outer 25mm, width 20mm.
Product successfully added to the Quote List
- Bore 20mm, outer 25mm, width 20mm
- Koyo (JTEKT) precision manufacture to JIS standards
- Precision inner ring providing a hardened, ground raceway for machined-type needle roller bearings
- Use where the shaft cannot be hardened or ground
| Brand | Koyo JTEKT |
|---|---|
| Bearing Type | Machined Needle Roller Inner Ring |
| Series | JR |
| Measurement System | Metric |
| Inner Diameter (Bore) | 20 mm |
| Outer Diameter | 25 mm |
| Width | 20 mm |
| Material | Chrome Bearing Steel |
| Weight | 0.028 kg |
| Features & Benefits | Bore 20mm, outer 25mm, width 20mm Koyo (JTEKT) precision manufacture to JIS standards Precision inner ring providing a hardened, ground raceway for machined-type needle roller bearings Use where the shaft cannot be hardened or ground |
The KOYO JR20x25x20 is a precision inner ring for machined-type needle roller bearings, giving a hardened and ground inner raceway where the shaft cannot be hardened directly. Bore 20mm, outer diameter 25mm, width 20mm.
Fits the matching machined-type needle roller bearing. Manufactured by Koyo (JTEKT), Japan.
