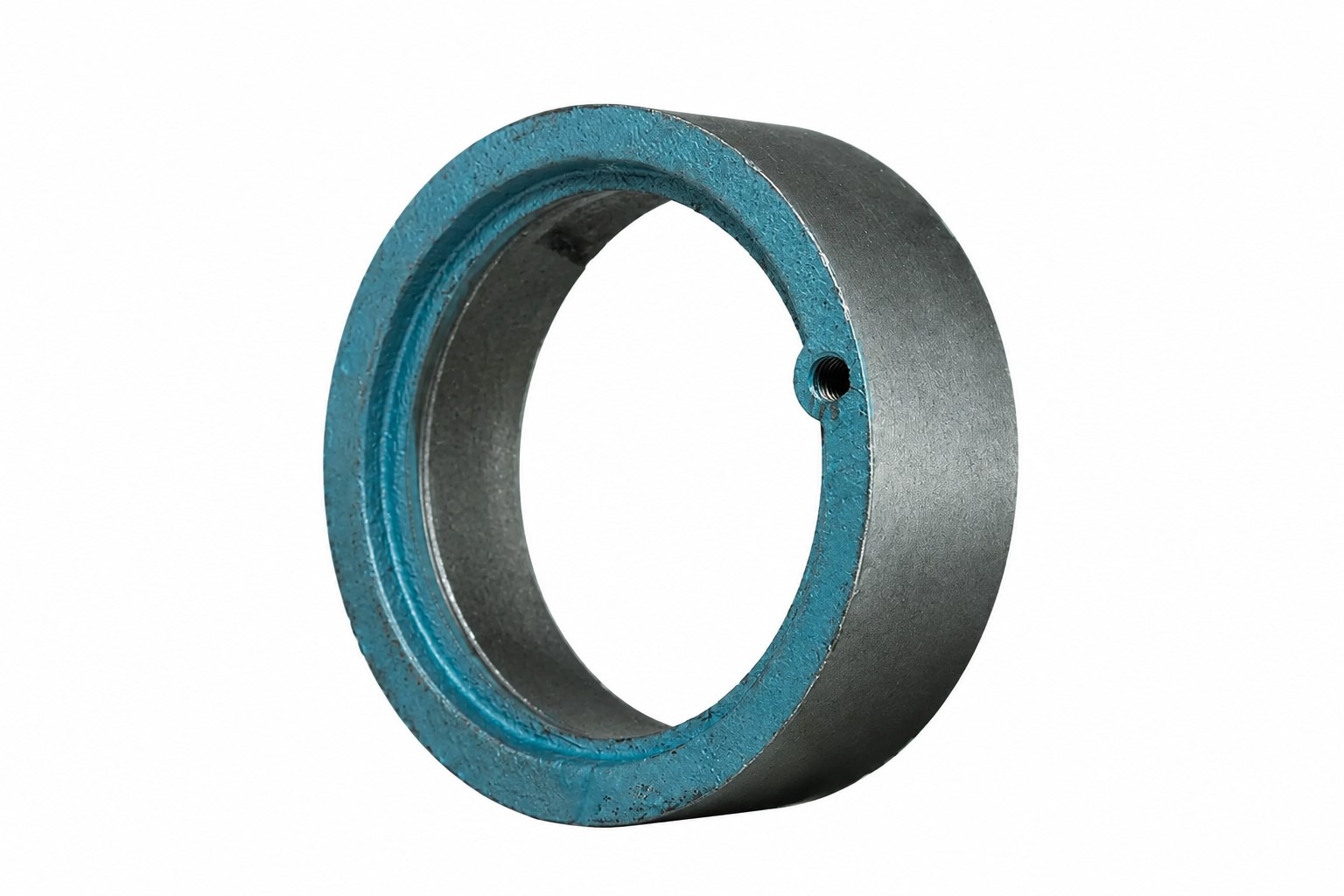

NBR C205 Round Cartridge Housing
NBR C205 cast iron round cartridge housing. Outside diameter: 80mm. Accepts matching insert bearings.
Product successfully added to the Quote List
- Accepts NBR or standard insert bearings
- Cast iron round cartridge housing
- Locates the bearing inside a machined bore
- NBR economy brand, imported by Finer Power Transmissions for Australia & New Zealand
- Supplied as housing only, insert ordered separately
| Brand | NBR |
|---|---|
| Bearing Type | Round Cartridge Housing |
| Series | C200 |
| Housing Type | Round Cartridge |
| Material | Cast Iron |
| Outside Diameter (a) | 80 mm |
| Housing Width (Bi) | 34 mm |
| Register Depth (i) | 22 mm |
| Features & Benefits | Accepts NBR or standard insert bearings Cast iron round cartridge housing Locates the bearing inside a machined bore NBR economy brand, imported by Finer Power Transmissions for Australia & New Zealand Supplied as housing only, insert ordered separately |
NBR C205 Round Cartridge Housing
The NBR C205 is a cast iron round cartridge housing that bolts into a machined bore or mounts face-on, accepting a matching NBR insert bearing. Housing outside diameter: 80mm, width (Bi): 34mm.
Cartridge housings suit applications where the bearing is located inside a machined housing bore. Supplied as a housing only – the insert bearing is ordered separately. Supplied under the NBR brand – a cost-effective mounted bearing range imported into Australia and New Zealand by Finer Power Transmissions – offering reliable quality for industrial, agricultural and washdown applications.
