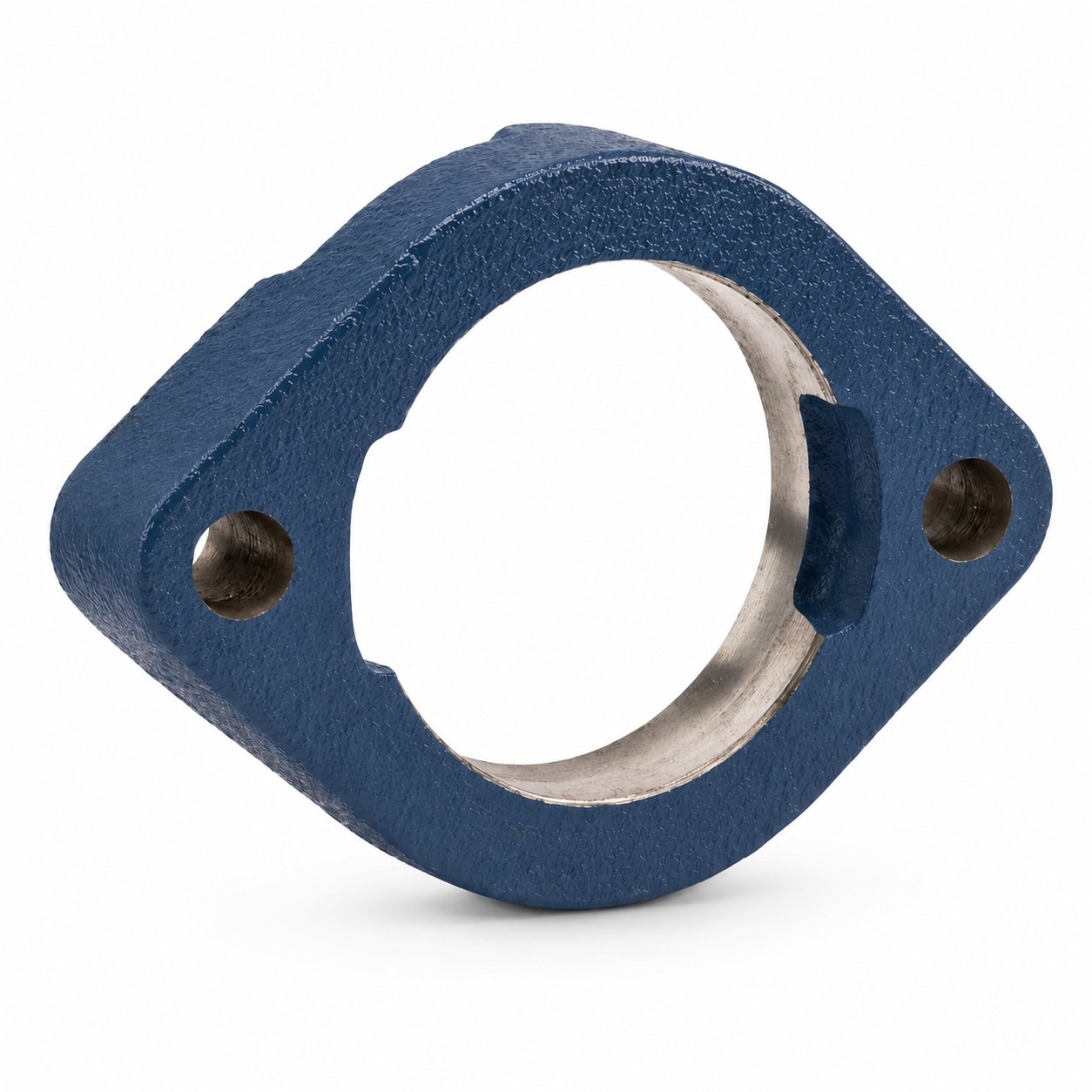

NBR FD204 2-Bolt Oval Flange Housing
NBR FD204 solid cast iron 2-bolt oval flange housing. Length 98.7mm, bolt centres 70.6mm, bolt 5/16.
Product successfully added to the Quote List
- Accepts NBR or standard insert bearings
- Compact and economical mounting
- NBR economy brand, imported by Finer Power Transmissions for Australia & New Zealand
- Solid cast iron 2-bolt oval flange housing
- Supplied as housing only, insert ordered separately
| Brand | NBR |
|---|---|
| Bearing Type | 2-Bolt Oval Flange Housing |
| Series | FD200 |
| Housing Type | Oval Flange (2-Bolt) |
| Material | Cast Iron |
| Overall Length (A) | 98.7 mm |
| Bolt Centres (C) | 70.6 mm |
| Wall (s) | 10 mm |
| Bolt Circle (F) | 69.7 mm |
| Bolt Size | 5/16 |
| Features & Benefits | Accepts NBR or standard insert bearings Compact and economical mounting NBR economy brand, imported by Finer Power Transmissions for Australia & New Zealand Solid cast iron 2-bolt oval flange housing Supplied as housing only, insert ordered separately |
NBR FD204 2-Bolt Oval Flange Housing
The NBR FD204 is a solid cast Iron 2-bolt oval (2-hole) flange housing with overall length 98.7mm, bolt centres 70.6mm, wall 10mm and bolt circle 69.7mm, bolt size 5/16.
Supplied as a housing only – the insert bearing is ordered separately. Supplied under the NBR brand – a cost-effective mounted bearing range imported into Australia and New Zealand by Finer Power Transmissions – offering reliable quality for industrial, agricultural and washdown applications.
Related Products
-
FD203
NBR FD203 2-Bolt Oval Flange Housing
Product successfully added to the Quote List
-
FD205
NBR FD205 2-Bolt Oval Flange Housing
Product successfully added to the Quote List
-
FD206
NBR FD206 2-Bolt Oval Flange Housing
Product successfully added to the Quote List
-
FD207
NBR FD207 2-Bolt Oval Flange Housing
Product successfully added to the Quote List
-
FL204

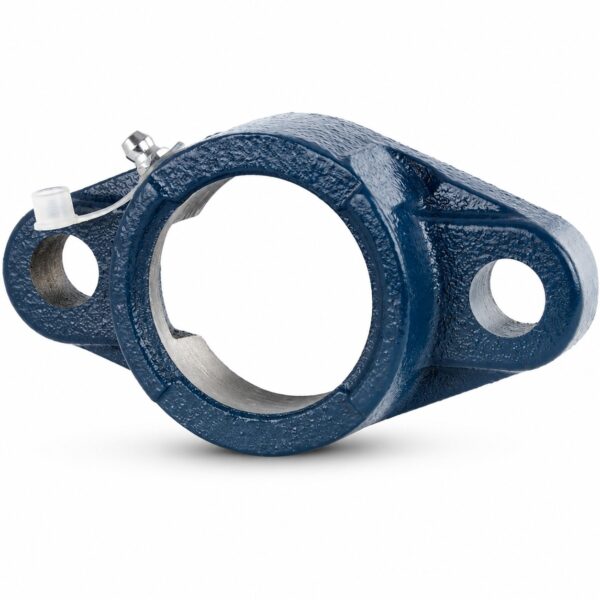

NBR FL204 2-Bolt Oval Flange Housing
