NBR FL001 Silver Series Oval Flange Housing
FL001

Images are for illustrative purposes only. Actual product may vary.

NBR

NBR FL001 Silver Series Oval Flange Housing

Part Number: FL001

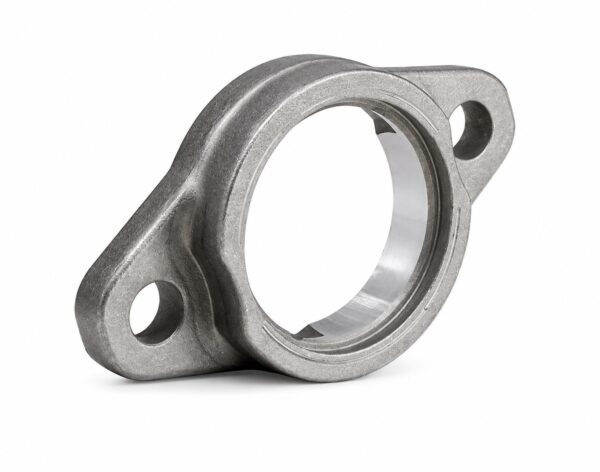

NBR FL001 extra-light-duty cast iron 2-bolt oval flange housing. Suits 12mm shaft. Overall length 63mm.

Qty:
  • Accepts NBR insert bearings
  • Compact Silver Series economy design
  • Extra-light-duty cast iron 2-bolt oval flange housing
  • NBR economy brand, imported by Finer Power Transmissions for Australia & New Zealand
  • Supplied as housing only, insert ordered separately
Brand

NBR
Bearing Type

2-Bolt Oval Flange Housing
Series

FL000
Housing Type

Extra Light Duty), Oval Flange (2-Bolt
Material

Cast Iron
Shaft Size

12 mm
Overall Length (A)

63 mm
Bolt Hole Centres (e)

48 mm
Wall (s)

7 mm
Height (b)

38 mm
Insert Width (B)

46 mm
Features & Benefits Accepts NBR insert bearings
Compact Silver Series economy design
Extra-light-duty cast iron 2-bolt oval flange housing
NBR economy brand, imported by Finer Power Transmissions for Australia & New Zealand
Supplied as housing only, insert ordered separately

NBR FL001 Silver Series Oval Flange Housing

The NBR FL001 is a cast iron extra-light-duty 2-bolt oval flanged housing for a 12mm shaft bearing.

Supplied as a housing only – the insert bearing is ordered separately. Supplied under the NBR brand – a cost-effective mounted bearing range imported into Australia and New Zealand by Finer Power Transmissions – offering reliable quality for industrial, agricultural and washdown applications.

NBR FL000 & P000 Silver Series Housings
PDF — 477 KB
Download
