NBR FL209 2-Bolt Oval Flange Housing
FL209

Images are for illustrative purposes only. Actual product may vary.

NBR

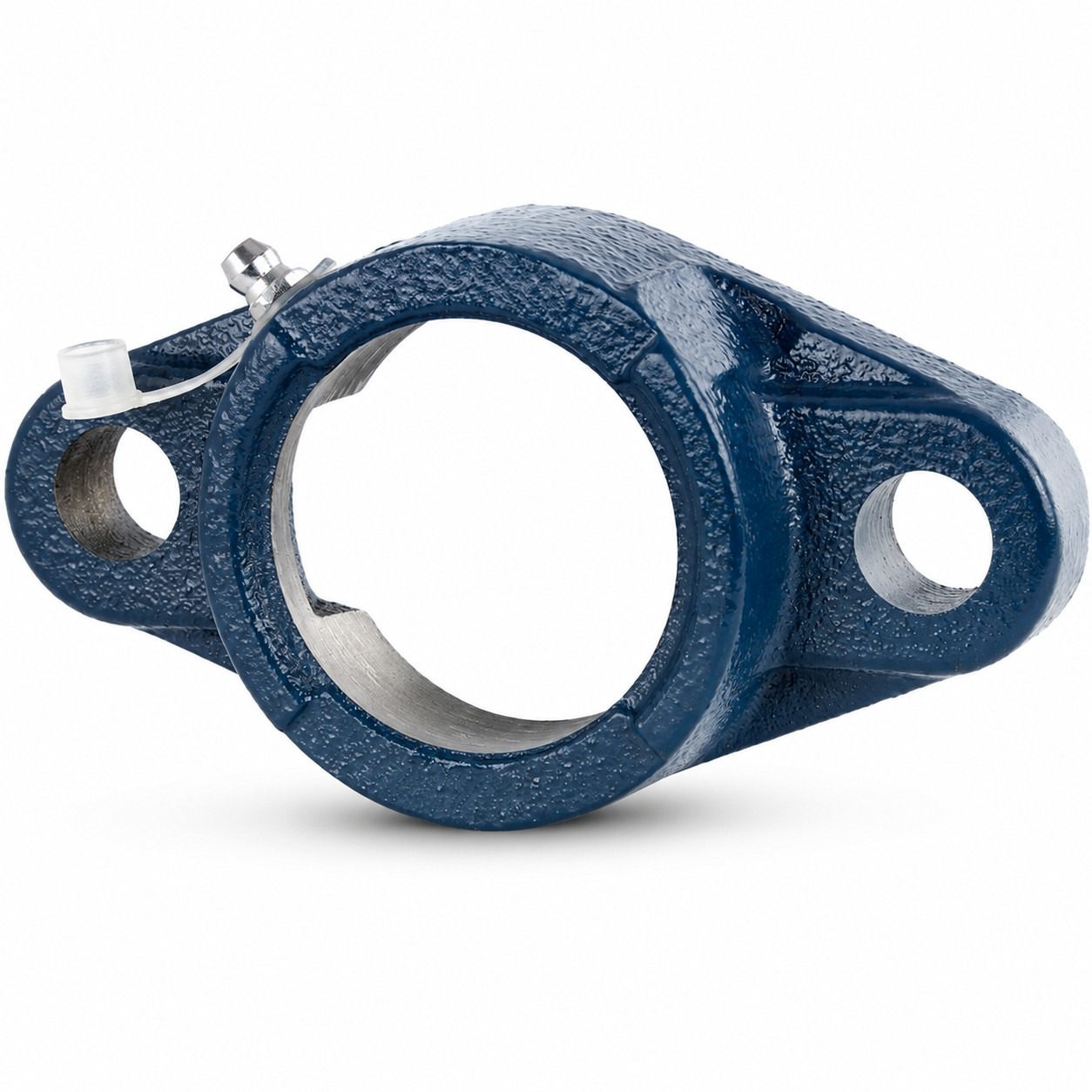

NBR FL209 2-Bolt Oval Flange Housing

Part Number: FL209

NBR FL209 cast iron 2-bolt oval flange housing. Suits 45mm shaft. Length 188mm, bolt centres 108mm.

Qty:
  • Accepts NBR or standard wide inner ring inserts
  • Cast iron 2-bolt oval flange housing
  • Compact 2-hole mounting
  • NBR economy brand, imported by Finer Power Transmissions for Australia & New Zealand
  • Supplied as housing only, insert ordered separately
Brand

NBR
Bearing Type

2-Bolt Oval Flange Housing
Series

FL200
Housing Type

Oval Flange (2-Bolt)
Material

Cast Iron
Shaft Size

45 mm
Overall Length (A)

188 mm
Height (H)

148 mm
Bolt Hole Centres (J)

108 mm
Wall (s)

38 mm
Insert Width (Bi)

52.2 mm
Bolt Hole Diameter (N)

19 mm
Features & Benefits Accepts NBR or standard wide inner ring inserts
Cast iron 2-bolt oval flange housing
Compact 2-hole mounting
NBR economy brand, imported by Finer Power Transmissions for Australia & New Zealand
Supplied as housing only, insert ordered separately

NBR FL209 2-Bolt Oval Flange Housing

The NBR FL209 is a cast iron 2-bolt oval (2-hole) flange housing for a 45mm shaft bearing. Overall length 188mm, height 148mm, bolt hole centres 108mm, wall 38mm, insert width 52.2mm, bolt hole 19mm.

Supplied as a housing only – the insert bearing is ordered separately. Supplied under the NBR brand – a cost-effective mounted bearing range imported into Australia and New Zealand by Finer Power Transmissions – offering reliable quality for industrial, agricultural and washdown applications.

NBR FL200 & T200 Thermoplastic Housings
PDF — 627 KB
Download
NBR FD200 & FL200 Housings
PDF — 543 KB
Download
