NBR FX07 4-Bolt Square Flange Housing
FX07

Images are for illustrative purposes only. Actual product may vary.

NBR

NBR FX07 4-Bolt Square Flange Housing

Part Number: FX07

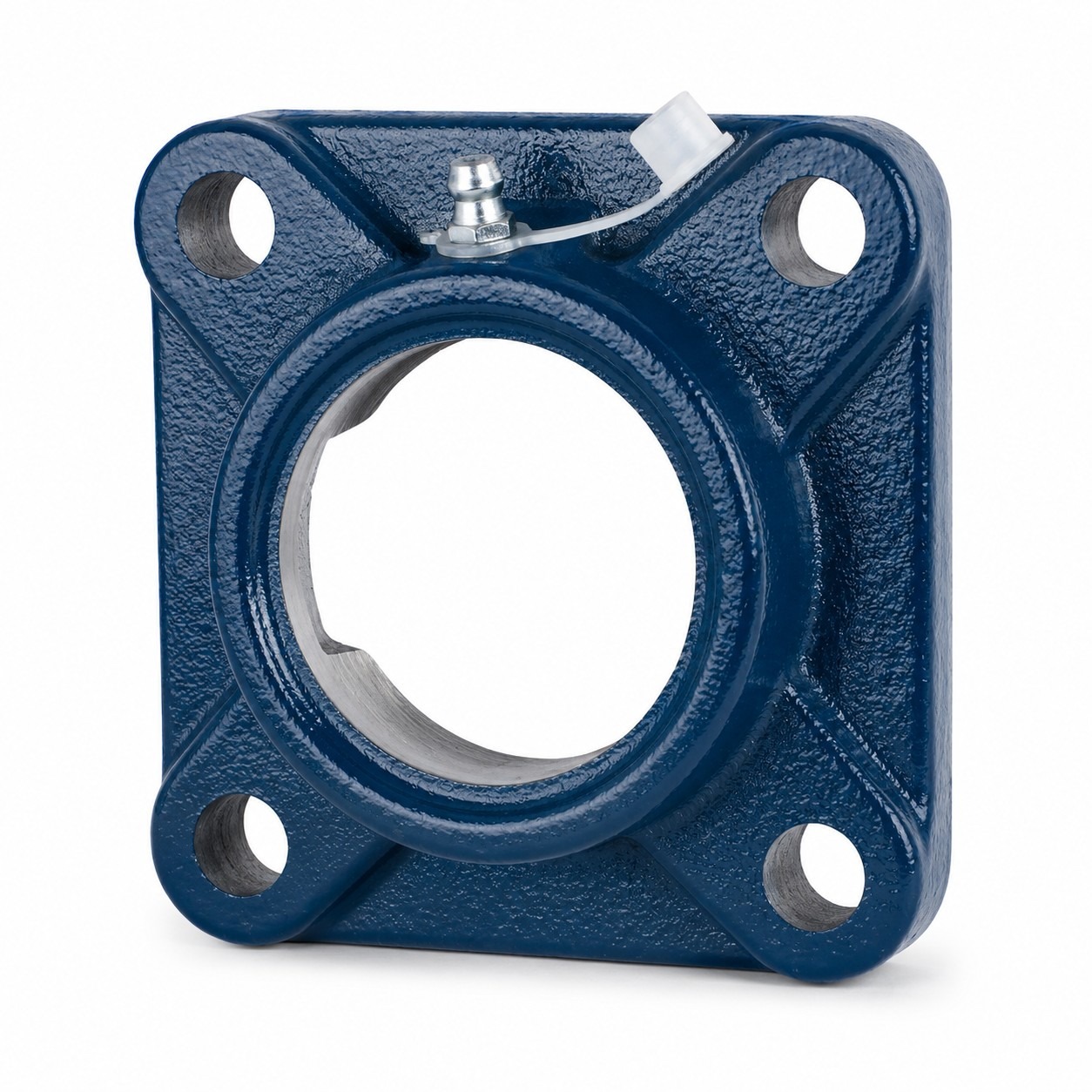

NBR FX07 cast iron 4-bolt square flange housing. Suits 35mm shaft. Bolt circle 102mm, flange 130mm.

Qty:
  • Accepts NBR insert bearings
  • Bolts to a flat face and centres the bearing
  • Medium-duty cast iron 4-bolt square flange housing
  • NBR economy brand, imported by Finer Power Transmissions for Australia & New Zealand
  • Supplied as housing only, insert ordered separately
Brand

NBR
Bearing Type

4-Bolt Flange Cartridge Housing
Series

FX00
Housing Type

Square Flange (4-Bolt)
Material

Cast Iron
Shaft Size

35 mm
Flange Width (a)

130 mm
Bolt Circle (e)

102 mm
Flange Thickness (g)

14 mm
Bolt Hole Diameter (s)

16 mm
Insert Width (n)

19 mm
Features & Benefits Accepts NBR insert bearings
Bolts to a flat face and centres the bearing
Medium-duty cast iron 4-bolt square flange housing
NBR economy brand, imported by Finer Power Transmissions for Australia & New Zealand
Supplied as housing only, insert ordered separately

NBR FX07 4-Bolt Square Flange Housing

The NBR FX07 is a cast iron 4-bolt square flanged housing for a 35mm shaft bearing.

Supplied as a housing only – the insert bearing is ordered separately. Supplied under the NBR brand – a cost-effective mounted bearing range imported into Australia and New Zealand by Finer Power Transmissions – offering reliable quality for industrial, agricultural and washdown applications.

NBR FX00 Square Flange Housings
PDF — 1,014 KB
Download
