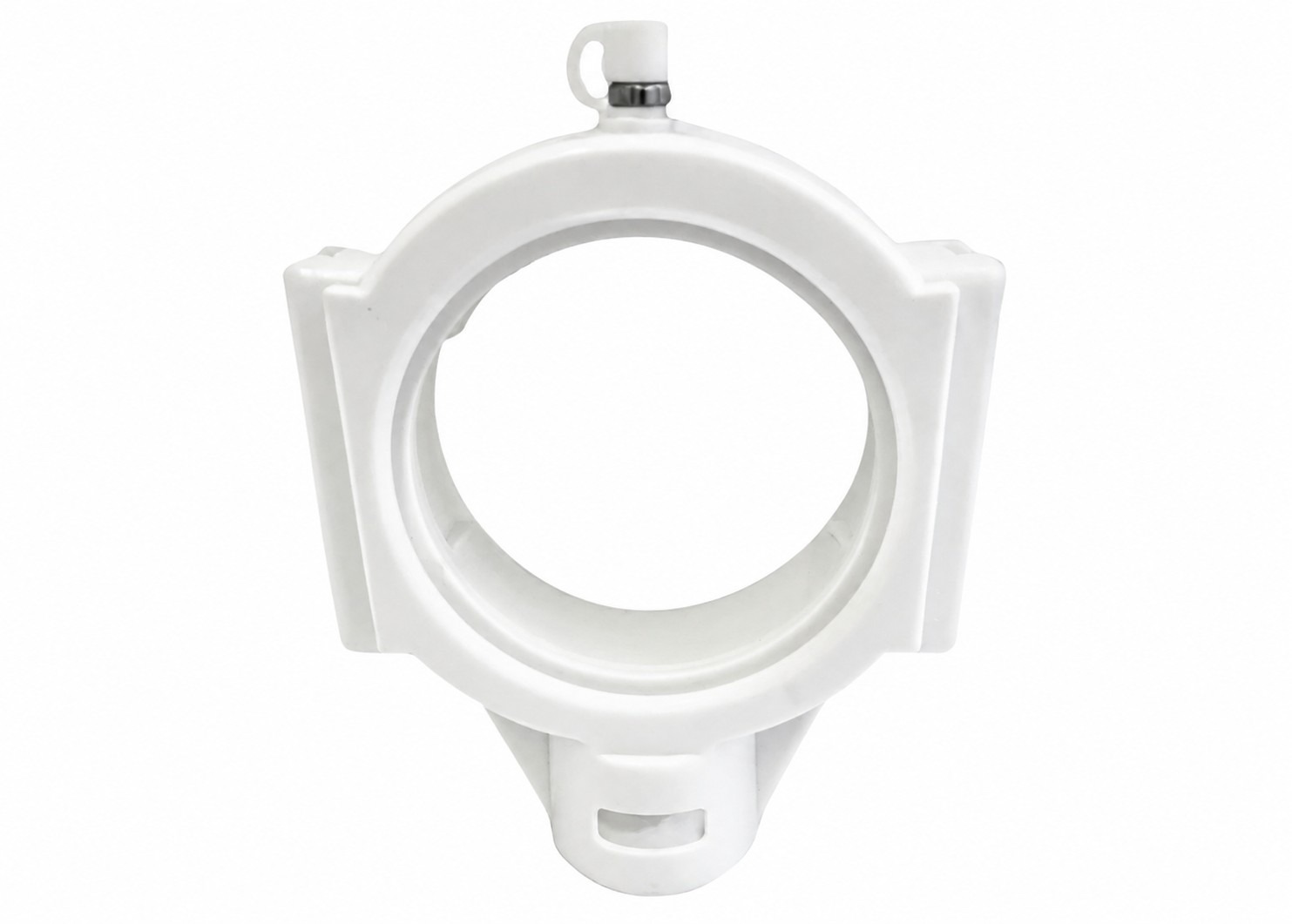

NBR PL-T206 Thermoplastic Take-Up Housing
NBR PL-T206 thermoplastic take-up housing. Suits 30mm shaft. Height 102mm, length 113mm.
Product successfully added to the Quote List
- Corrosion-resistant thermoplastic take-up (tension) housing
- Ideal for washdown and wet environments
- NBR economy brand, imported by Finer Power Transmissions for Australia & New Zealand
- Slides in a take-up frame for tensioning
- Supplied as housing only, insert ordered separately
| Brand | NBR |
|---|---|
| Bearing Type | Take-Up Housing |
| Series | PL-T200 |
| Housing Type | Take-Up (Thermoplastic) |
| Material | Thermoplastic |
| Shaft Size | 30 mm |
| Overall Length (L) | 113 mm |
| Slot Width (N) | 22 mm |
| Overall Height (H) | 102 mm |
| Frame Width (A) | 37 mm |
| Features & Benefits | Corrosion-resistant thermoplastic take-up (tension) housing Ideal for washdown and wet environments NBR economy brand, imported by Finer Power Transmissions for Australia & New Zealand Slides in a take-up frame for tensioning Supplied as housing only, insert ordered separately |
NBR PL-T206 Thermoplastic Take-Up Housing
The NBR PL-T206 is a moulded thermoplastic take-up (tension) housing (corrosion resistant, ideal for washdown) for a 30mm shaft bearing.
Supplied as a housing only – the insert bearing is ordered separately. Supplied under the NBR brand – a cost-effective mounted bearing range imported into Australia and New Zealand by Finer Power Transmissions – offering reliable quality for industrial, agricultural and washdown applications.
Related Products
-
PL-T207

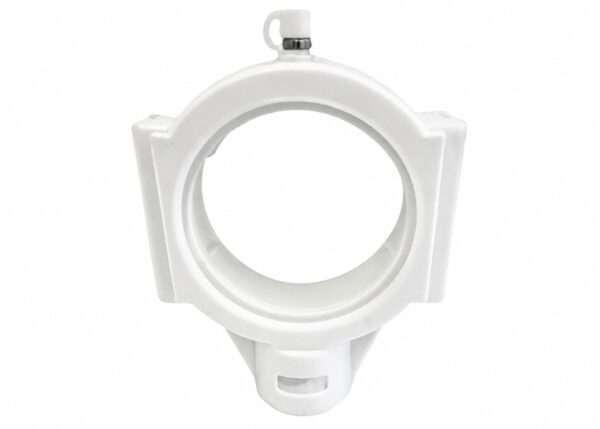

NBR PL-T207 Thermoplastic Take-Up Housing
