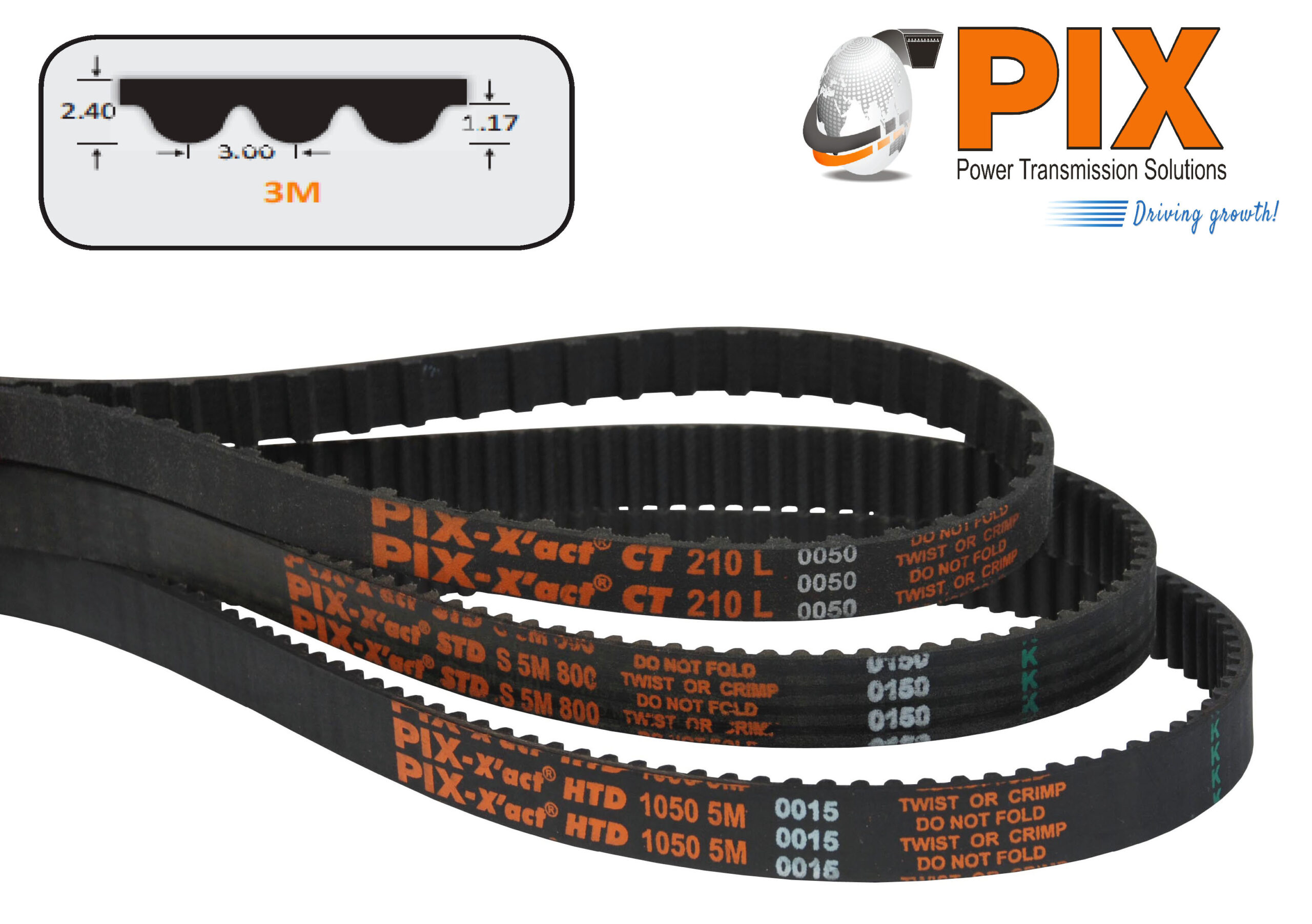

PIX 1062-3M HTD Timing Belt (3M Pitch) – 1062mm Pitch Length
PIX 1062-3M HTD timing belt – 3M profile (3.0mm pitch). 1062mm pitch length – 354 teeth. Cut to width from a sleeve – specify the width required in mm.
- 1062mm pitch length - 354 teeth
- Deep round-tooth HTD profile - higher torque capacity and less backlash than classical belts
- HTD 3M timing belt - 3.0mm tooth pitch
- Positive synchronous drive - no slip
- Supplied from a sleeve and cut to width to order - specify the width required in mm when requesting a quote
| Brand | PIX |
|---|---|
| Belt Type | HTD Timing Belt |
| Belt Section | 3M (HTD) |
| Tooth Pitch | 3.0 mm |
| Pitch Length | 1062 mm |
| Number of Teeth | 354 |
| Tooth Depth | 1.22 mm |
| Belt Thickness | 2.4 mm |
| Measurement System | Metric |
| Features & Benefits | 1062mm pitch length - 354 teeth Deep round-tooth HTD profile - higher torque capacity and less backlash than classical belts HTD 3M timing belt - 3.0mm tooth pitch Positive synchronous drive - no slip Supplied from a sleeve and cut to width to order - specify the width required in mm when requesting a quote |
The PIX 1062-3M is an HTD (High Torque Drive) timing belt with a 3M profile (3.0mm tooth pitch) – 1062mm pitch length and 354 teeth. Tooth depth 1.22mm – belt thickness 2.4mm.
HTD belts use a deep round-tooth profile that carries higher torque than classical trapezoidal belts with less backlash – giving positive – synchronous drive with no slip and no need for tensioning devices.
Please note: this belt is supplied from a sleeve and cut to width to order. When requesting a quote – enter the width required in millimetres along with the quantity of belts you need.
