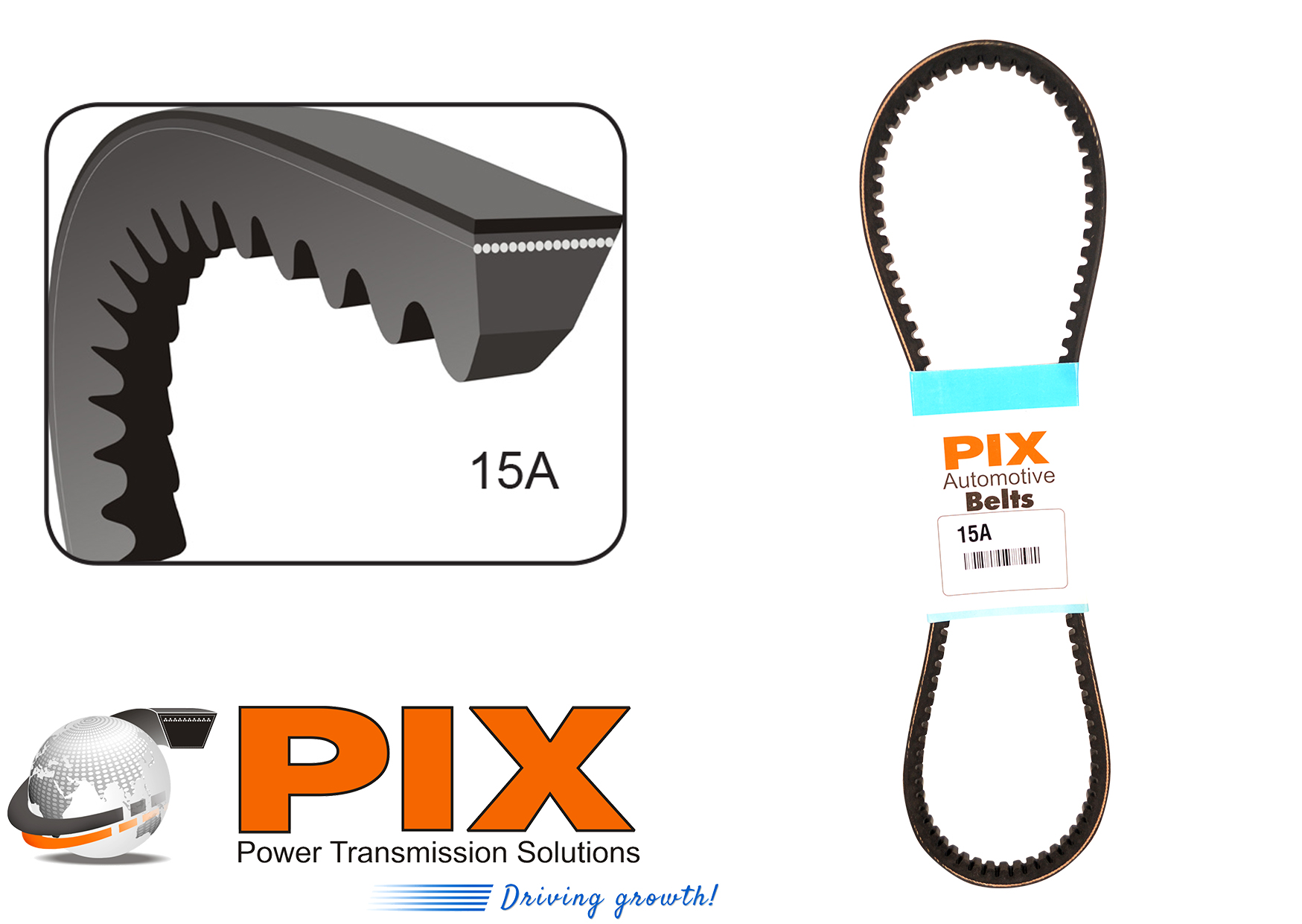

PIX 15A-815 Automotive Cogged V-Belt (15A Section) – 815mm
PIX 15A-815 automotive raw-edge cogged V-belt. 15A section (15mm top width x 11mm), 815mm effective length. Antistatic – oil and heat resistant.
Product successfully added to the Quote List
- 15A section automotive cogged V-belt
- 815mm effective length (Le)
- Antistatic - oil and heat resistant (ISO 1813)
- Manufactured by PIX and imported into Australia by Finer Power Transmissions
- Profile 15mm top width x 11mm thickness - 36° angle
- Raw-edge cog profile - flexible - runs cool - suits small pulleys and high-speed engines
| Brand | PIX |
|---|---|
| Belt Type | Automotive Cogged V-Belt |
| Belt Section | 15A |
| Construction | Raw Edge Cogged |
| Cord Material | Polyester |
| Measurement System | Metric |
| Top Width | 15 mm |
| Thickness | 11 mm |
| Included Angle | 36° |
| Nominal Length | 815 mm |
| Features & Benefits | 15A section automotive cogged V-belt 815mm effective length (Le) Antistatic - oil and heat resistant (ISO 1813) Manufactured by PIX and imported into Australia by Finer Power Transmissions Profile 15mm top width x 11mm thickness - 36° angle Raw-edge cog profile - flexible - runs cool - suits small pulleys and high-speed engines |
The PIX 15A-815 is an automotive raw-edge cogged V-belt in the 15A section (15mm top width x 11mm thickness – 36° angle) with a 815mm effective length (Le).
Automotive cogged V-belts drive engine ancillaries – alternators – water pumps – power steering and air-conditioning compressors. The moulded cog profile gives enhanced flexibility and heat dissipation – higher power transmission and excellent performance on the smaller pulleys used in modern high-speed engines. Raw-edge construction with low-stretch cords – antistatic – oil and heat resistant (conforms to ISO 1813).
Manufactured by PIX and imported into Australia by Finer Power Transmissions.
