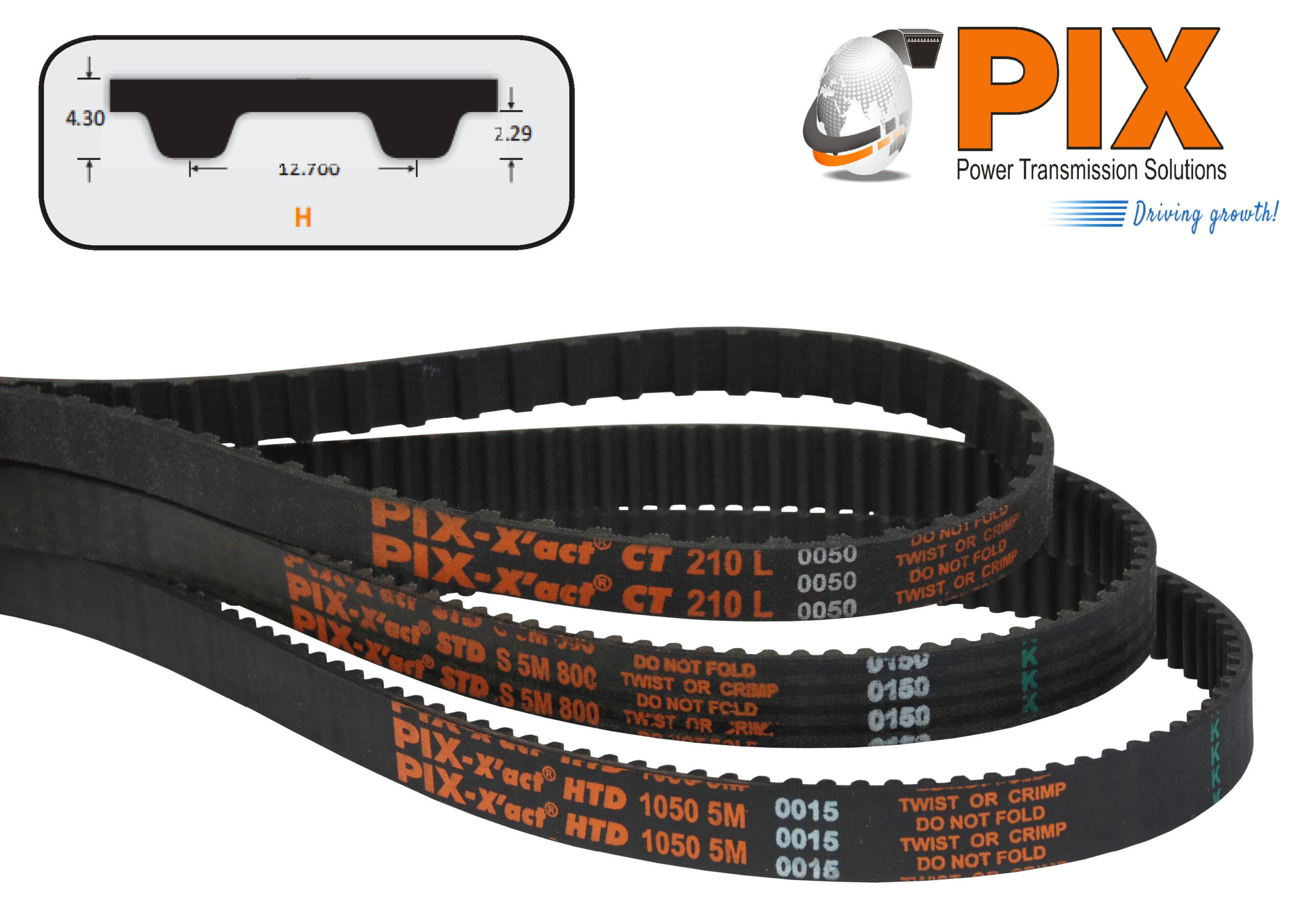

PIX 420-H-100 Classical Timing Belt Precut (H Pitch) – 42″ x 1″ Wide
PIX 420-H-100 precut classical timing belt – H profile (0.5″ pitch). 42″ pitch length – 84 teeth – 1″ wide. Supplied precut to width – no width selection needed.
Product successfully added to the Quote List
- 42″ pitch length - 84 teeth
- Precut classical H timing belt - 0.5″ tooth pitch
- Precut to 1" wide - no width selection required
- Trapezoidal tooth form - positive synchronous drive with no slip
| Brand | PIX |
|---|---|
| Belt Type | Classical Timing Belt (Precut) |
| Belt Section | H (Classical) |
| Tooth Pitch | 0.5″ (12.7 mm) |
| Pitch Length | 42 in |
| Belt Width | 1" |
| Number of Teeth | 84 |
| Tooth Depth | 2.29 mm |
| Belt Thickness | 4.3 mm |
| Measurement System | Imperial |
| Supply Form | Precut to stock width |
| Features & Benefits | 42″ pitch length - 84 teeth Precut classical H timing belt - 0.5″ tooth pitch Precut to 1" wide - no width selection required Trapezoidal tooth form - positive synchronous drive with no slip |
The PIX 420-H-100 is a precut classical (trapezoidal) timing belt with an H profile (0.5″ / 12.7mm tooth pitch) – 42″ pitch length and 84 teeth – supplied precut to 1″ wide. Tooth depth 2.29mm – belt thickness 4.3mm.
Classical timing belts use a trapezoidal tooth form for positive – synchronous drive with no slip – keeping driver and driven shafts in exact time without tensioning devices.
This belt is supplied precut in a common stock width – so there is no need to specify a width when ordering.
