Home Power Transmission Belts V-Belts Banded V-Belts PIX HSPC-3550 Banded V-Belt (SPC Section) – 3550mm base length
PIX HSPC-3550 Banded V-Belt (SPC Section) - 3550mm base length
HSPC-3550

Images are for illustrative purposes only. Actual product may vary.

PIX

PIX HSPC-3550 Banded V-Belt (SPC Section) – 3550mm base length

Part Number: HSPC-3550

PIX HSPC-3550 banded (joined) SPC-section V-belt. 3550mm base length. Ribs specified on enquiry. Supplied from a sleeve – cut to the number of bands you require.

Qty:

In your quote Change on the quote list

  • 3550mm base length
  • Banded (joined) construction - multiple V-belts joined side by side for high-shock - high-power drives
  • Manufactured by PIX and imported into Australia by Finer Power Transmissions
  • Prevents belt whip and turnover on demanding drives

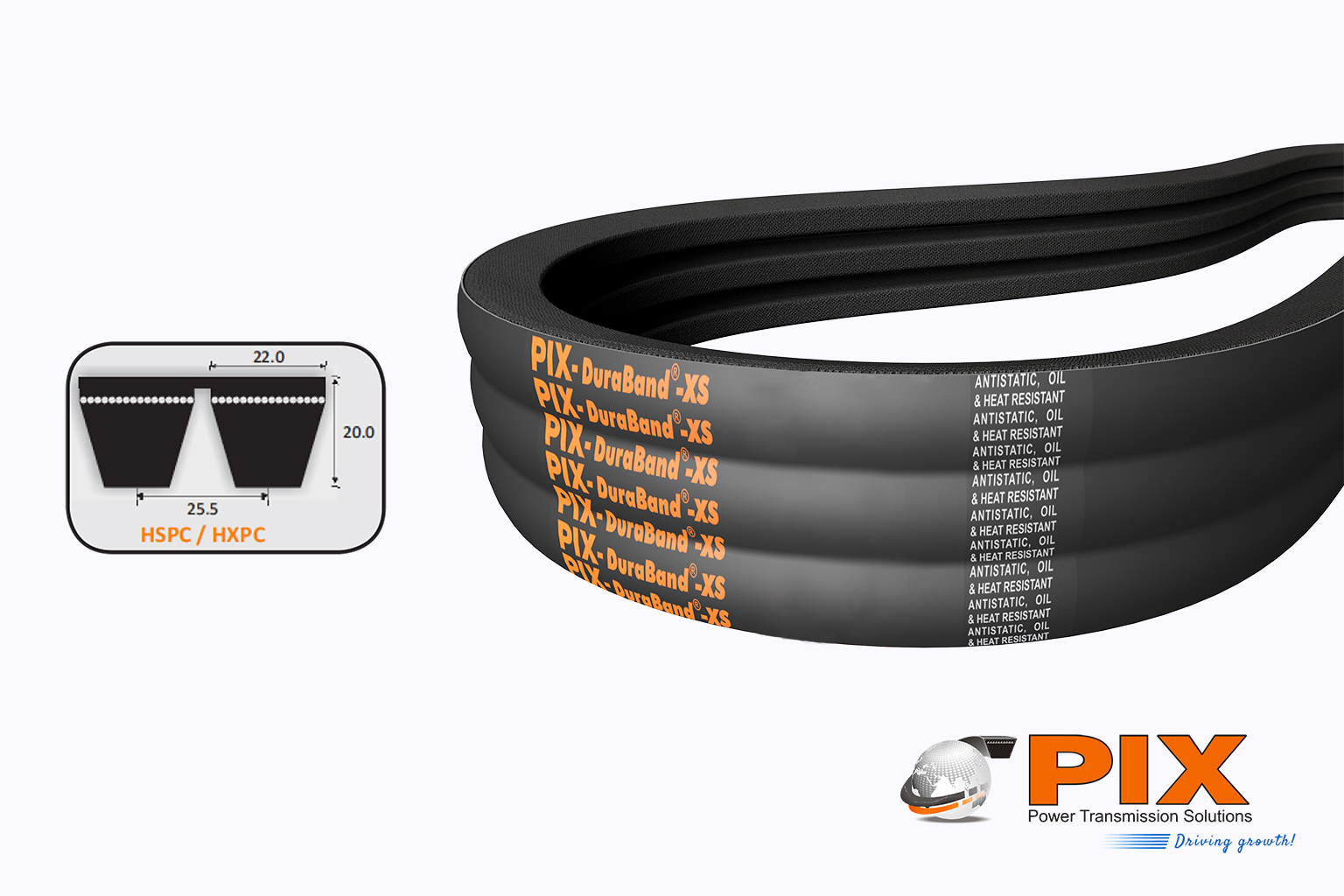

  • Profile 22mm top width x 18mm thickness - 40° angle
  • SPC section banded v-belt
  • Supplied from a sleeve and cut to order - specify the number of bands required per belt when requesting a quote
Brand

PIX
Belt Type

Banded V-Belt
Belt Section

SPC
Construction

Banded (Joined)
Cord Material

Polyester
Measurement System

Metric
Top Width

22 mm
Thickness

18 mm
Included Angle

40°
Nominal Length

3550 mm
Number of Bands

Select required number of bands when requesting a quote (cut to order)
Features & Benefits 3550mm base length
Banded (joined) construction - multiple V-belts joined side by side for high-shock - high-power drives
Manufactured by PIX and imported into Australia by Finer Power Transmissions
Prevents belt whip and turnover on demanding drives
Profile 22mm top width x 18mm thickness - 40° angle
SPC section banded v-belt
Supplied from a sleeve and cut to order - specify the number of bands required per belt when requesting a quote

The PIX HSPC-3550 is a banded (joined) SPC-section V-belt, 3550mm base length, built on the 22mm x 18mm SPC profile.

Banded belts are multiple V-belts joined by a common tie band, preventing individual belt whip, turnover and mistracking on high-power, high-shock or pulsating drives. The number of ribs is specified on enquiry.

Please note: this belt is supplied from a sleeve and cut to order. When requesting a quote, state the quantity of belts you need and the number of bands required per belt – the sleeve is then cut to that width.

Manufactured by PIX and imported into Australia by Finer Power Transmissions.
