Images are for illustrative purposes only. Actual product may vary.

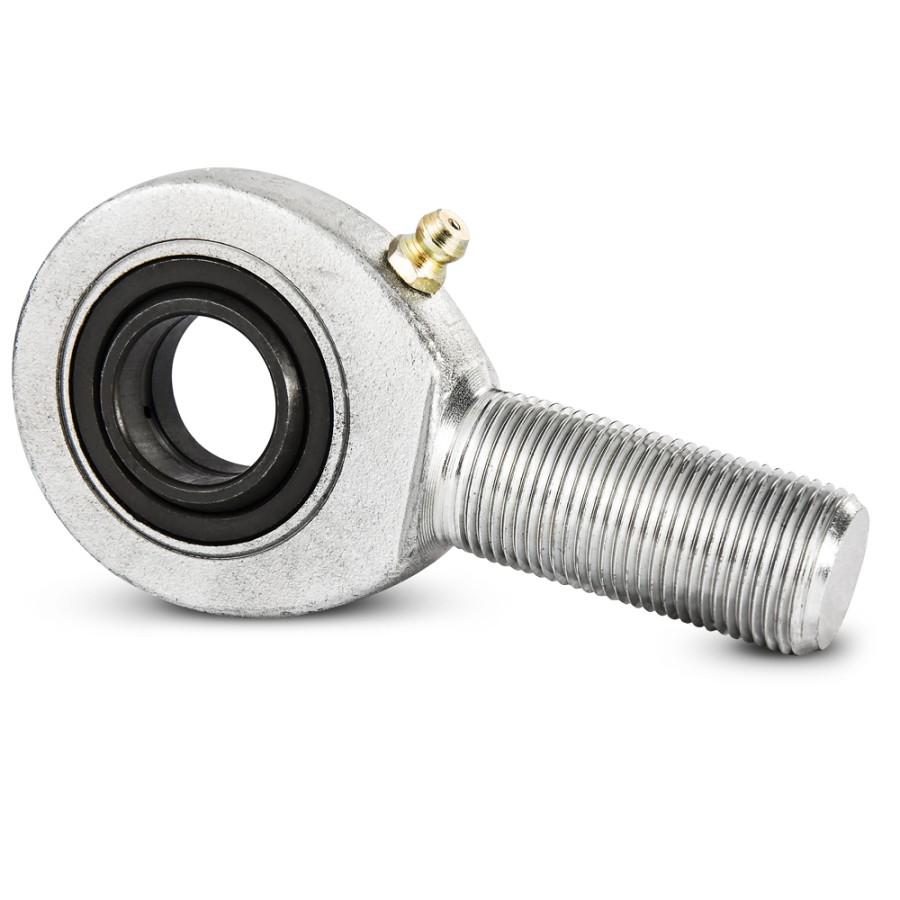

SDTZ SA12E Rod End (Male Thread) – 12mm Bore
SDTZ SA12E rod end (male thread). 12mm bore, 10mm width, M12 thread.
Product successfully added to the Quote List
- M12 thread
- Manufactured by SDTZ and imported into Australia by Finer Power Transmissions
- Rod End (Male Thread)
| Brand | SDTZ |
|---|---|
| Product Type | Rod End (Male Thread) |
| Series | SA |
| Measurement System | Metric |
| Inner Diameter (Bore) | 12 mm |
| Width | 10 mm |
| Thread Size | M12 |
| Dynamic Load Rating | 10 kN |
| Static Load Rating | 23 kN |
| Features & Benefits | M12 thread Manufactured by SDTZ and imported into Australia by Finer Power Transmissions Rod End (Male Thread) |
The SDTZ SA12E is a rod end (male thread), 12mm bore, 10mm width, M12 thread.
Manufactured by SDTZ and imported into Australia by Finer Power Transmissions.
Related Products
-
SAL12E
SDTZ SAL12E Rod End (Male Thread) – 12mm Bore
12 mm × 10 mm
Product successfully added to the Quote List
-
GE12E

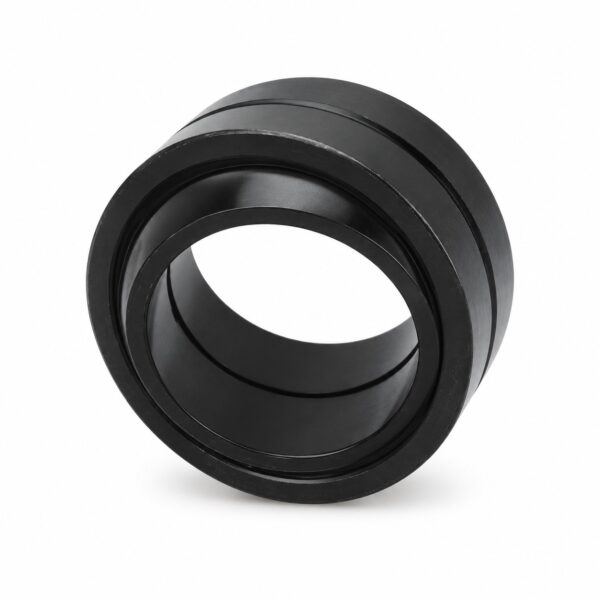

SDTZ GE12E Spherical Plain Bearing – 12mm Bore
