Images are for illustrative purposes only. Actual product may vary.

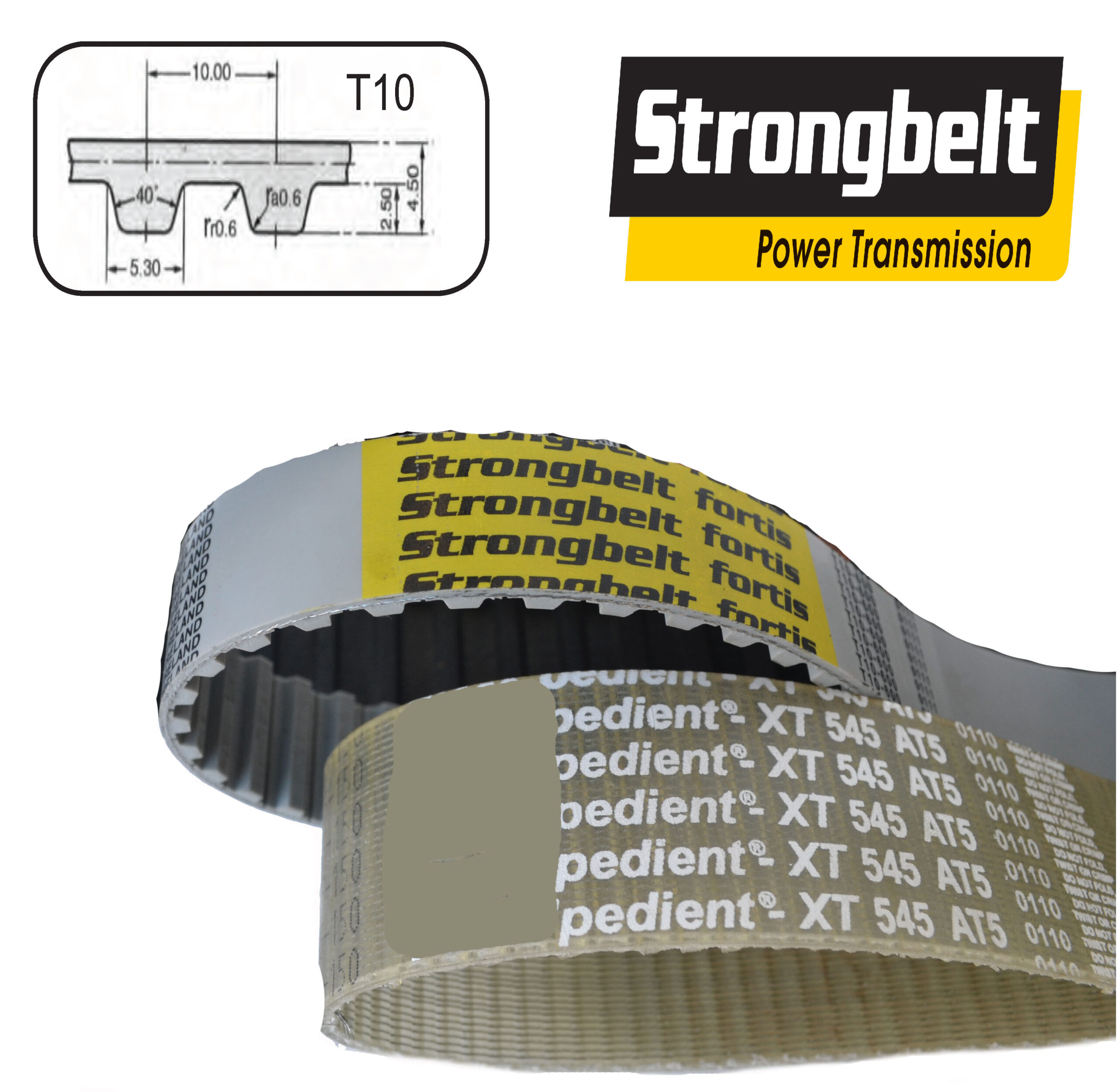

Strongbelt T10-530 Polyurethane Timing Belt (T10 Pitch) – 530mm Pitch Length
Strongbelt T10-530 polyurethane timing belt – T10 profile (10.0mm pitch). 530mm pitch length – 53 teeth. Cut to width from a sleeve – specify the width required in mm.
- 530mm pitch length - 53 teeth
- Excellent wear and oil resistance
- Polyurethane T10 timing belt - 10.0mm tooth pitch
- Polyurethane with steel lacing tension cord - high strength and low stretch
- Strongbelt polyurethane timing belt - imported into Australia by Finer Power Transmissions
- Supplied from a sleeve and cut to width to order - specify the width required in mm
- Trapezoid formed teeth - 40 degree tooth form
| Brand | Strongbelt |
|---|---|
| Belt Type | Polyurethane Timing Belt |
| Belt Section | T10 |
| Tooth Profile | T Profile |
| Tooth Pitch | 10.0 mm |
| Pitch Length | 530 mm |
| Number of Teeth | 53 |
| Tooth Depth | 2.5 mm |
| Belt Thickness | 4.5 mm |
| Included Angle | 40° |
| Material | Polyurethane with Steel Tension Cord |
| Measurement System | Metric |
| Supply Form | Cut to width from sleeve |
| Features & Benefits | 530mm pitch length - 53 teeth Excellent wear and oil resistance Polyurethane T10 timing belt - 10.0mm tooth pitch Polyurethane with steel lacing tension cord - high strength and low stretch Strongbelt polyurethane timing belt - imported into Australia by Finer Power Transmissions Supplied from a sleeve and cut to width to order - specify the width required in mm Trapezoid formed teeth - 40 degree tooth form |
The Strongbelt T10-530 is a polyurethane timing belt with a T10 profile (10.0mm tooth pitch) and a 530mm pitch length with 53 teeth. Tooth depth 2.5mm – belt thickness 4.5mm – 40° trapezoidal tooth form.
Made from polyurethane with a steel lacing tension cord and trapezoid formed teeth – giving high strength – low stretch and excellent wear and oil resistance.
Type T10 suits power transmission up to 20 kW – such as textile – printing and tool machines – pumps – compressors and bellows.
Please note: this belt is supplied from a sleeve and cut to width to order. When requesting a quote – state the width required in millimetres along with the quantity of belts you need.
Strongbelt polyurethane timing belt – imported into Australia by Finer Power Transmissions.
