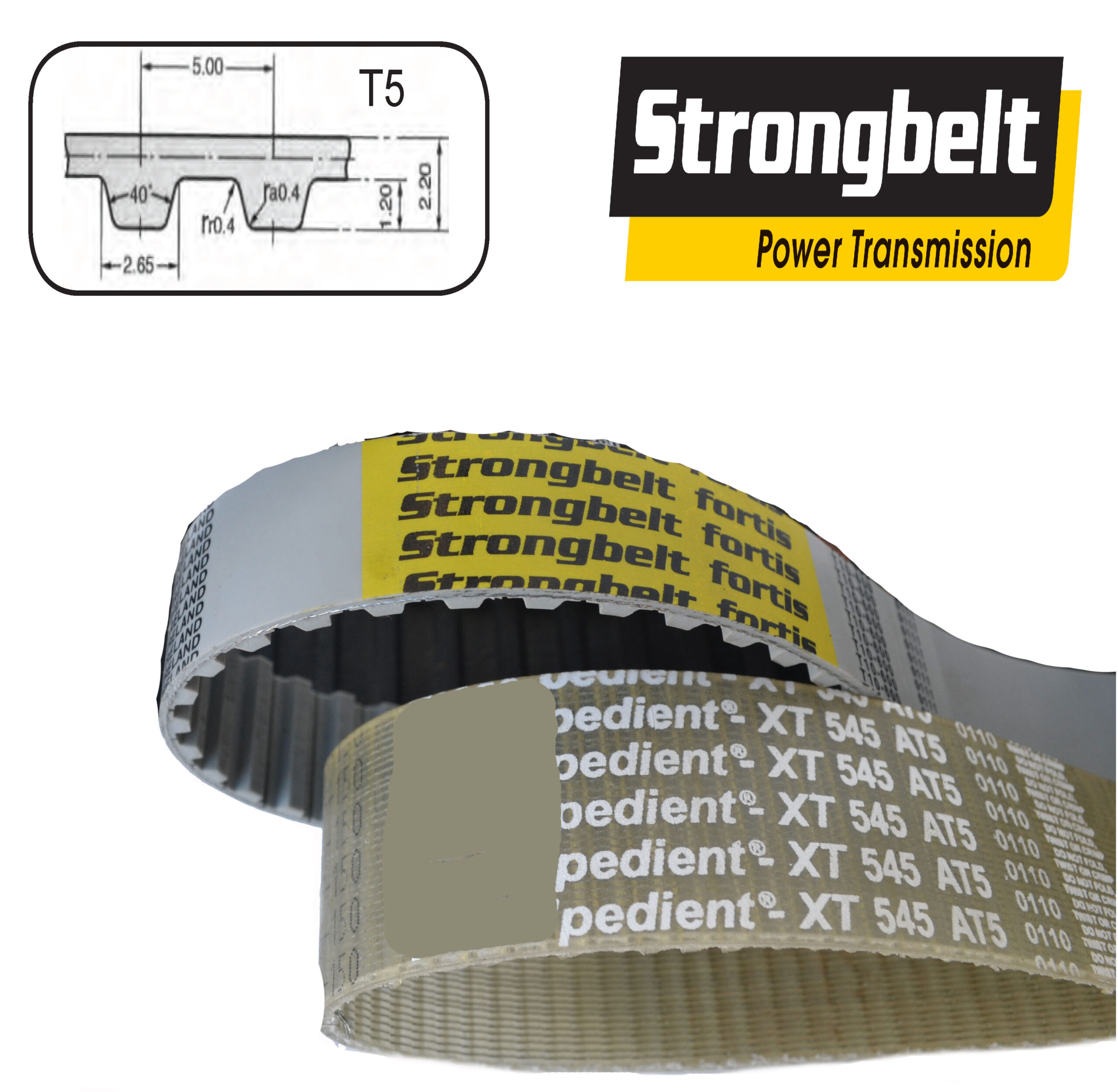

Strongbelt T5-430 Polyurethane Timing Belt (T5 Pitch) – 430mm Pitch Length
Strongbelt T5-430 polyurethane timing belt – T5 profile (5.0mm pitch). 430mm pitch length – 86 teeth. Cut to width from a sleeve – specify the width required in mm.
- 430mm pitch length - 86 teeth
- Excellent wear and oil resistance
- Polyurethane T5 timing belt - 5.0mm tooth pitch
- Polyurethane with steel lacing tension cord - high strength and low stretch
- Strongbelt polyurethane timing belt - imported into Australia by Finer Power Transmissions
- Supplied from a sleeve and cut to width to order - specify the width required in mm
- Trapezoid formed teeth - 40 degree tooth form
| Brand | Strongbelt |
|---|---|
| Belt Type | Polyurethane Timing Belt |
| Belt Section | T5 |
| Tooth Profile | T Profile |
| Tooth Pitch | 5.0 mm |
| Pitch Length | 430 mm |
| Number of Teeth | 86 |
| Tooth Depth | 1.2 mm |
| Belt Thickness | 2.2 mm |
| Included Angle | 40° |
| Material | Polyurethane with Steel Tension Cord |
| Measurement System | Metric |
| Supply Form | Cut to width from sleeve |
| Features & Benefits | 430mm pitch length - 86 teeth Excellent wear and oil resistance Polyurethane T5 timing belt - 5.0mm tooth pitch Polyurethane with steel lacing tension cord - high strength and low stretch Strongbelt polyurethane timing belt - imported into Australia by Finer Power Transmissions Supplied from a sleeve and cut to width to order - specify the width required in mm Trapezoid formed teeth - 40 degree tooth form |
The Strongbelt T5-430 is a polyurethane timing belt with a T5 profile (5.0mm tooth pitch) and a 430mm pitch length with 86 teeth. Tooth depth 1.2mm – belt thickness 2.2mm – 40° trapezoidal tooth form.
Made from polyurethane with a steel lacing tension cord and trapezoid formed teeth – giving high strength – low stretch and excellent wear and oil resistance.
Type T5 suits power transmission up to 2 kW – such as grinding – kitchen and office machines.
Please note: this belt is supplied from a sleeve and cut to width to order. When requesting a quote – state the width required in millimetres along with the quantity of belts you need.
Strongbelt polyurethane timing belt – imported into Australia by Finer Power Transmissions.
