Images are for illustrative purposes only. Actual product may vary.

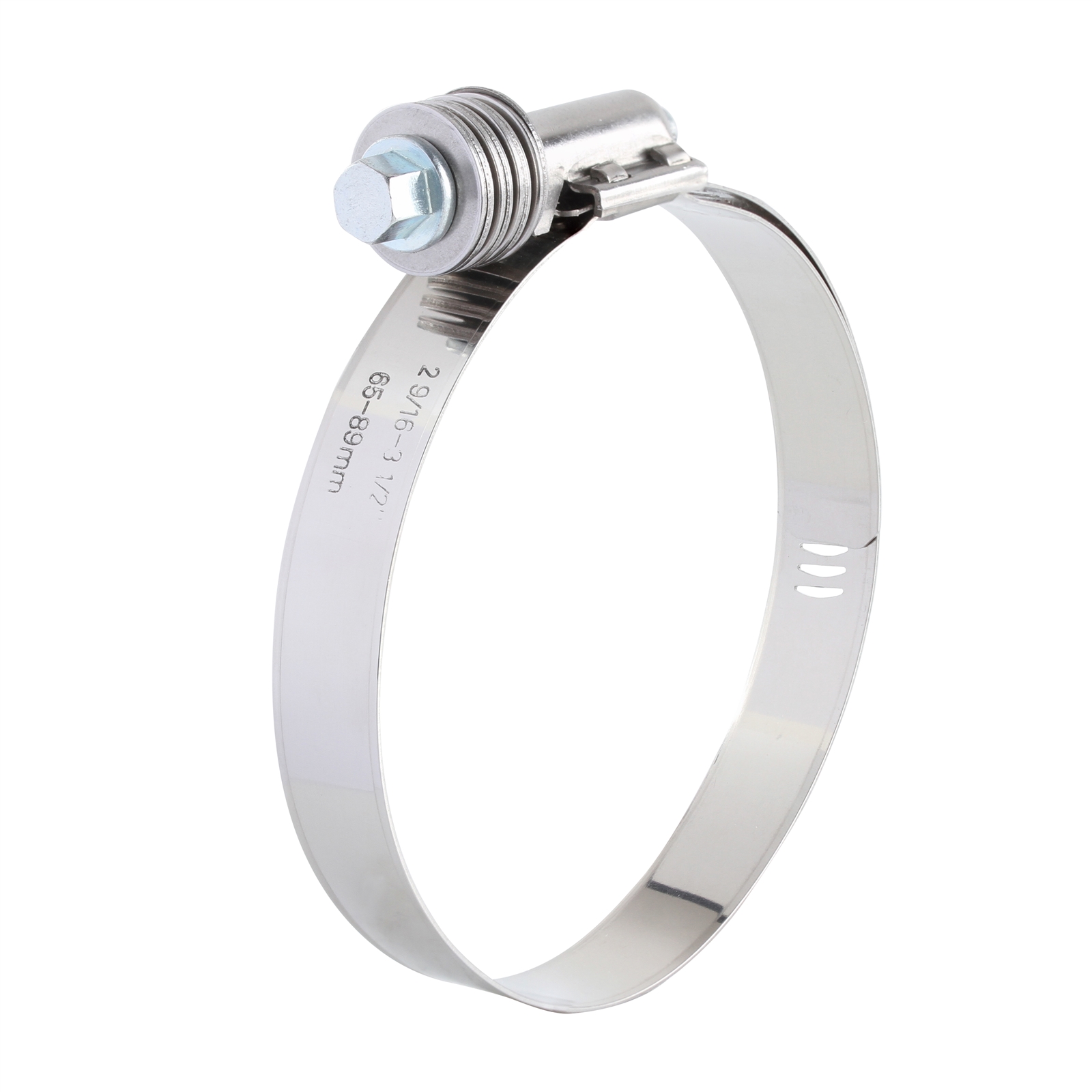

Tridon Constant Tension Clamp 65-89mm – Pack of 10
Tridon Constant Tension Clamp. 65-89mm. Pack of 10.
Product successfully added to the Quote List
- Band material: 304 stainless steel (heavy duty).
- Band width: 14.2mm.
- Clamping range 65-89mm
- Constant Tension Clamp - TCT Series - Constant Tension Clamps 14.2mm Band
- Housing material: 304 stainless steel.
- Manufactured by Tridon
- Screw material: carbon steel zinc plated hexagonal head screw (8mm).
- Spring washers: 410 stainless steel.
- Supplied as pack of 10
| Brand | Tridon |
|---|---|
| Product Type | Constant Tension Clamp |
| Series | TCT Series – Constant Tension Clamps 14.2mm Band |
| Clamping Range | 65-89mm |
| Minimum Diameter | 65mm |
| Maximum Diameter | 89mm |
| Fits Diameter | 65-89mm |
| Band Width | 14.2mm |
| Pack Quantity | 10 |
| Pack Type | Multi pack |
| Cross Reference | Tridon: TCT048P | Part Number: TCT048P | Barcode: 9312550221875 |
| Features & Benefits | Band material: 304 stainless steel (heavy duty). Band width: 14.2mm. Clamping range 65-89mm Constant Tension Clamp - TCT Series - Constant Tension Clamps 14.2mm Band Housing material: 304 stainless steel. Manufactured by Tridon Screw material: carbon steel zinc plated hexagonal head screw (8mm). Spring washers: 410 stainless steel. Supplied as pack of 10 |
Tridon Constant Tension Clamp – 65-89mm from the TCT Series – Constant Tension Clamps 14.2mm Band – supplied as pack of 10.
Heavy duty constant tension spring loaded perforated band clamp, with spring loaded screw design for even pressure distribution, constant tension in fluctuating temperatures and high strength for reliable sealing.
Specifications
- Clamping range: 65-89mm
- Pack quantity: 10
- Pack type: Multi pack
- Part number: TCT048P
- Barcode: 9312550221875
Series detail
Band width: 14.2mm. Band material: 304 stainless steel (heavy duty). Housing material: 304 stainless steel. Screw material: carbon steel zinc plated hexagonal head screw (8mm). Spring washers: 410 stainless steel.
Manufactured by Tridon Australia.
Related Products
-
TCT048
Tridon Constant Tension Clamp 65-89mm
Product successfully added to the Quote List
-
TCT044

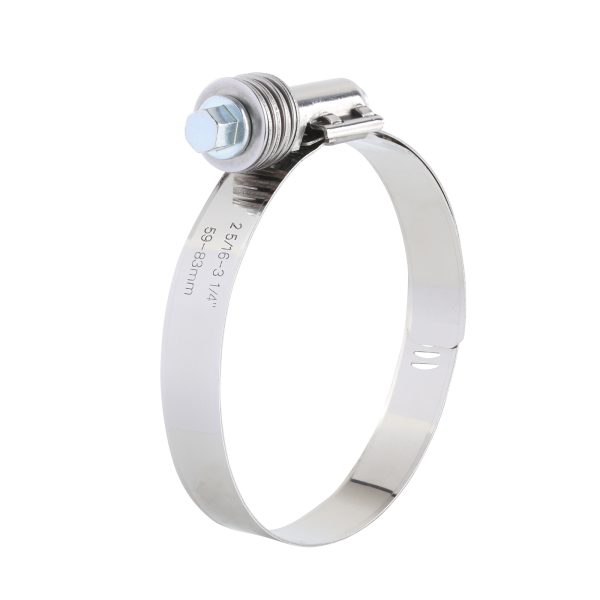

Tridon Constant Tension Clamp 59-83mm
