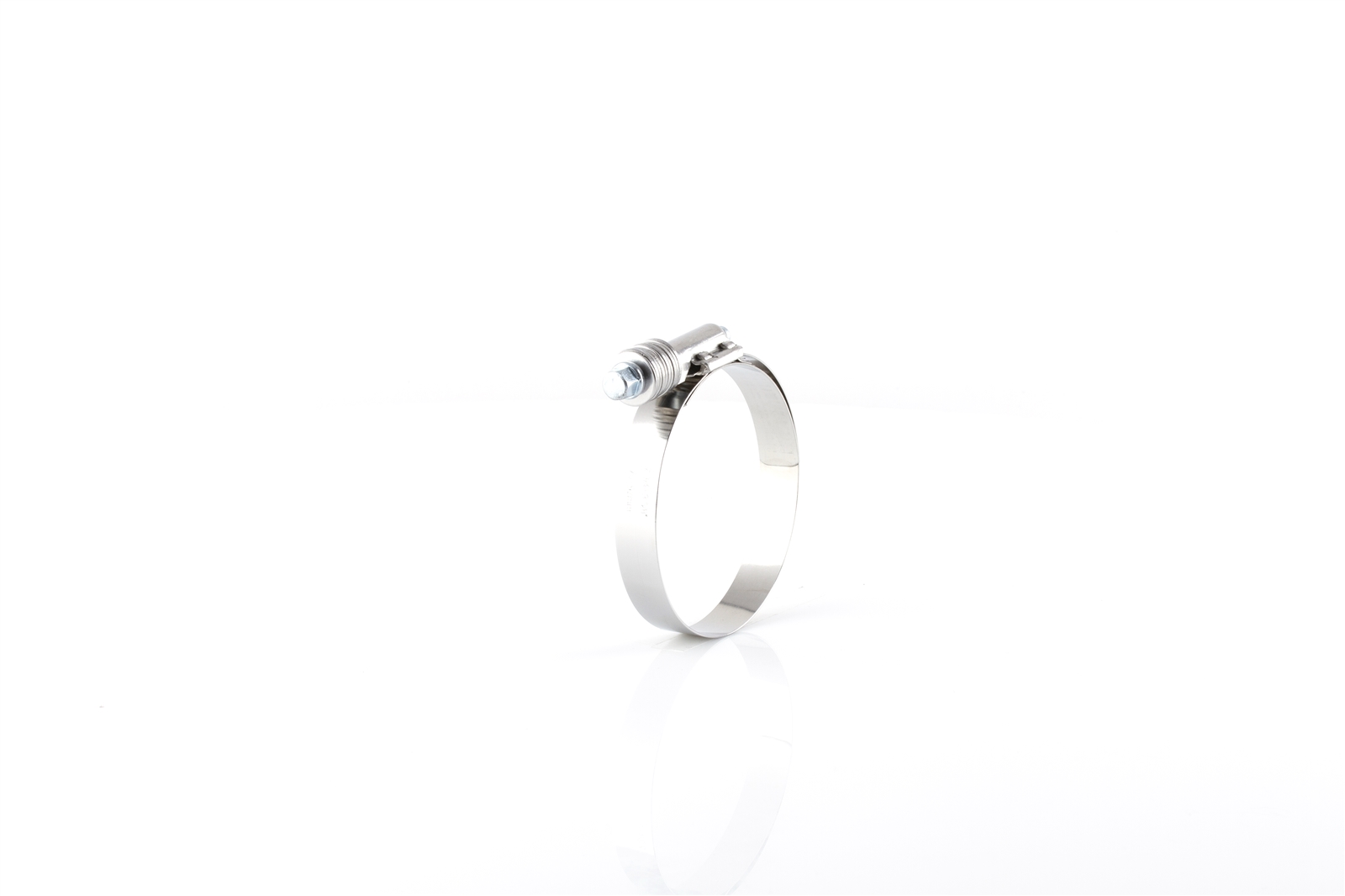

Tridon Heavy Duty Constant Tension Clamp 70-92mm – Pack of 25
Tridon Heavy Duty Constant Tension Clamp. 70-92mm. Pack of 25.
Product successfully added to the Quote List
- Band material: 304 stainless steel heavy duty band.
- Band width: 15.8mm.
- Clamping range 70-92mm
- Constant Tension Clamp - TCT HD Series - Constant Tension Clamps 15.8mm Band
- Housing material: 304 stainless steel.
- Manufactured by Tridon
- Screw material: carbon steel zinc plated hexagonal head screw 9.5mm.
- Spring washers: 410 stainless steel.
- Supplied as pack of 25
| Brand | Tridon |
|---|---|
| Product Type | Constant Tension Clamp |
| Series | TCT HD Series – Constant Tension Clamps 15.8mm Band |
| Clamping Range | 70-92mm |
| Minimum Diameter | 70mm |
| Maximum Diameter | 92mm |
| Fits Diameter | 70-92mm |
| Band Width | 15.8mm |
| Pack Quantity | 25 |
| Pack Type | Multi pack |
| Cross Reference | Tridon: TCT1035 | Part Number: TCT1035 | Barcode: 9312550225897 |
| Features & Benefits | Band material: 304 stainless steel heavy duty band. Band width: 15.8mm. Clamping range 70-92mm Constant Tension Clamp - TCT HD Series - Constant Tension Clamps 15.8mm Band Housing material: 304 stainless steel. Manufactured by Tridon Screw material: carbon steel zinc plated hexagonal head screw 9.5mm. Spring washers: 410 stainless steel. Supplied as pack of 25 |
Tridon Heavy Duty Constant Tension Clamp – 70-92mm from the TCT HD Series – Constant Tension Clamps 15.8mm Band – supplied as pack of 25.
Heavy duty constant tension spring loaded perforated band clamp. The spring loaded screw provides even pressure distribution, constant tension in fluctuating temperatures and high strength for reliable sealing. An extended band tang prevents damage to soft hoses.
Specifications
- Clamping range: 70-92mm
- Pack quantity: 25
- Pack type: Multi pack
- Part number: TCT1035
- Barcode: 9312550225897
Series detail
Band material: 304 stainless steel heavy duty band. Band width: 15.8mm. Housing material: 304 stainless steel. Screw material: carbon steel zinc plated hexagonal head screw, 9.5mm. Spring washers: 410 stainless steel.
Manufactured by Tridon Australia.
Related Products
-
TCT1035P
Tridon Heavy Duty Constant Tension Clamp 70-92mm – Pack of 10
Product successfully added to the Quote List
-

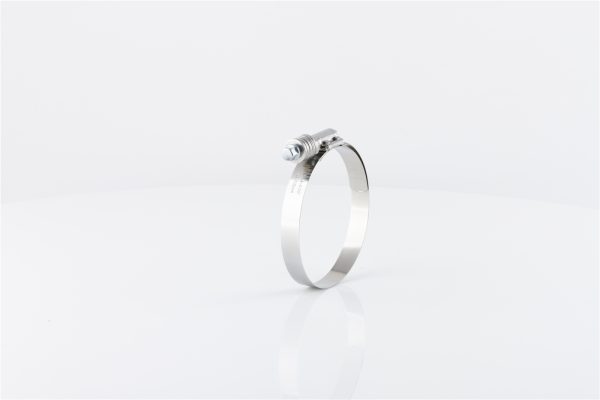

TCT1040P
Tridon Heavy Duty Constant Tension Clamp 83-105mm – Pack of 10
Product successfully added to the Quote List
-
TCT1040
Tridon Heavy Duty Constant Tension Clamp 83-105mm – Pack of 25
Product successfully added to the Quote List
-

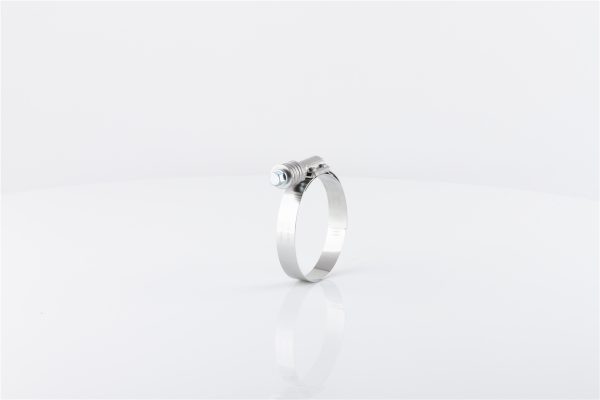

TCT1030P
Tridon Heavy Duty Constant Tension Clamp 57-79mm – Pack of 10
Product successfully added to the Quote List
-
TCT1030
Tridon Heavy Duty Constant Tension Clamp 57-79mm – Pack of 25
Product successfully added to the Quote List
-

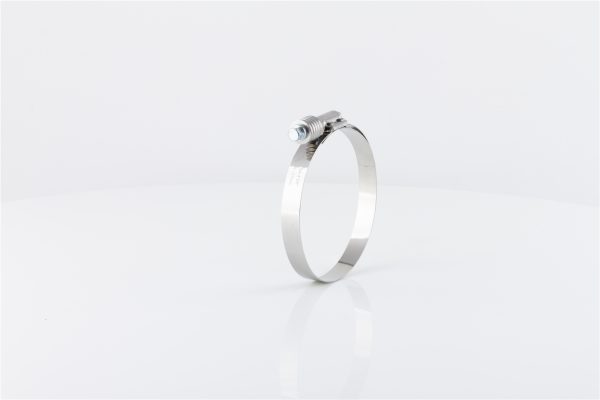

TCT1045P
Tridon Heavy Duty Constant Tension Clamp 95-118mm – Pack of 10
Product successfully added to the Quote List
-
TCT1045
Tridon Heavy Duty Constant Tension Clamp 95-118mm – Pack of 25
Product successfully added to the Quote List
-

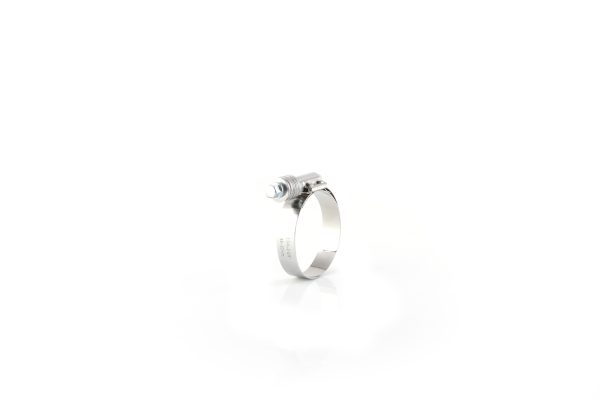

TCT1025P
