Images are for illustrative purposes only. Actual product may vary.
Tridon Micro Clamp 18-38mm – Box of 16
Tridon Micro Clamp. 18-38mm. Box of 16.
Product successfully added to the Quote List
- 316 stainless steel
- Band material: 316 stainless steel perforated band.
- Clamping range 18-38mm
- Manufactured by Tridon
- Perforated Band Clamp - 316 Series - Perforated Band 316 Stainless Steel
- Screw material housing material thread and temperature range are not stated...
- Standards: manufactured in Australia to SAE J1508.
- Supplied as box of 16
- Used for marine industrial agricultural chemical and general purpose...
| Brand | Tridon |
|---|---|
| Product Type | Perforated Band Clamp |
| Series | 316 Series – Perforated Band 316 Stainless Steel |
| Clamping Range | 18-38mm |
| Minimum Diameter | 18mm |
| Maximum Diameter | 38mm |
| Fits Diameter | 18-38mm |
| Band Width | 8mm |
| Material | 316 stainless steel |
| Pack Quantity | 016 |
| Pack Type | Bulk box |
| Cross Reference | Tridon: M316-016 | Part Number: M316-016 | Barcode: 9312550152261 |
| Features & Benefits | 316 stainless steel Band material: 316 stainless steel perforated band. Clamping range 18-38mm Manufactured by Tridon Perforated Band Clamp - 316 Series - Perforated Band 316 Stainless Steel Screw material housing material thread and temperature range are not stated... Standards: manufactured in Australia to SAE J1508. Supplied as box of 16 Used for marine industrial agricultural chemical and general purpose... |
Tridon Micro Clamp – 18-38mm from the 316 Series – Perforated Band 316 Stainless Steel – supplied as box of 16.
The Tridon 316 stainless perforated band clamp range provides superior design and proven reliability. For marine, industrial, agricultural, chemical and general purpose use. Manufactured in Australia to SAE J1508 standards. The flexible 316 stainless steel perforated band clamp design delivers low free torque for ease of installation and high strength for reliable high quality sealing.
Specifications
- Clamping range: 18-38mm
- Material: 316 stainless steel
- Pack quantity: 016
- Pack type: Bulk box
- Part number: M316-016
- Barcode: 9312550152261
Series detail
Band material: 316 stainless steel, perforated band. Standards: manufactured in Australia to SAE J1508. Used for marine, industrial, agricultural, chemical and general purpose applications. Screw material, housing material, thread and temperature range are not stated for this series.
Manufactured by Tridon Australia.
Related Products
-
M316-012
Tridon Micro Clamp 18-38mm – Box of 12
Product successfully added to the Quote List
-
M316-016P
Tridon Micro Clamp 18-38mm – Pack of 10
Product successfully added to the Quote List
-

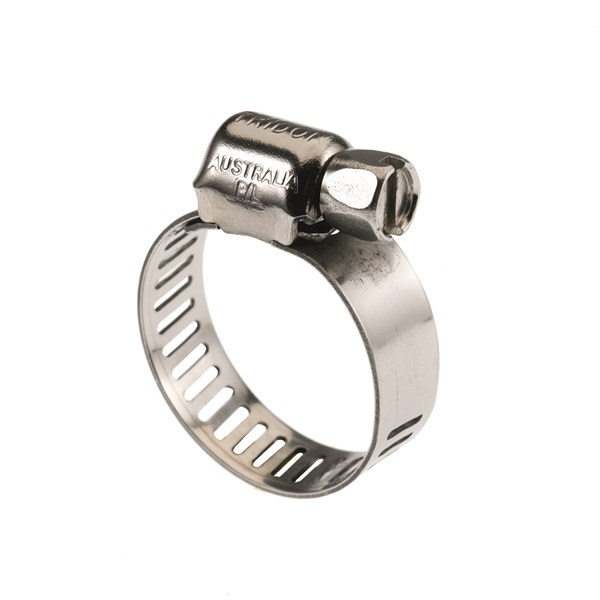

MAH016
Tridon Micro Clamp 18-38mm – Box of 500
Product successfully added to the Quote List
-

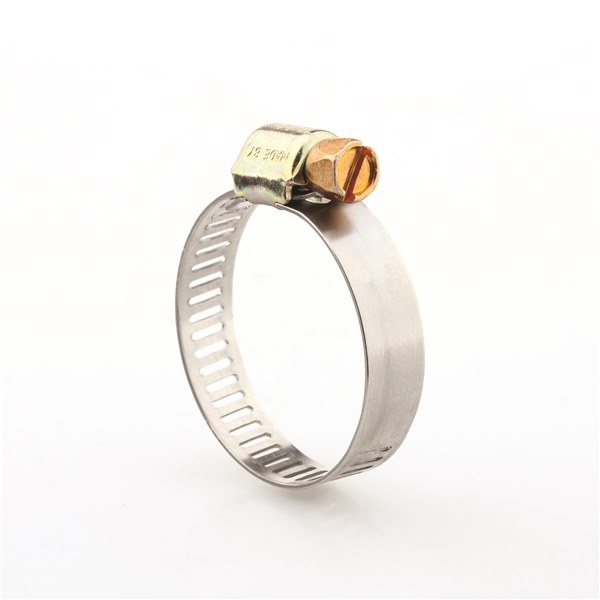

MH016
Tridon Micro Clamp 18-38mm – Box of 500
Product successfully added to the Quote List
-
MAH016P
Tridon Micro Clamp 18-38mm – Pack of 10
Product successfully added to the Quote List
-

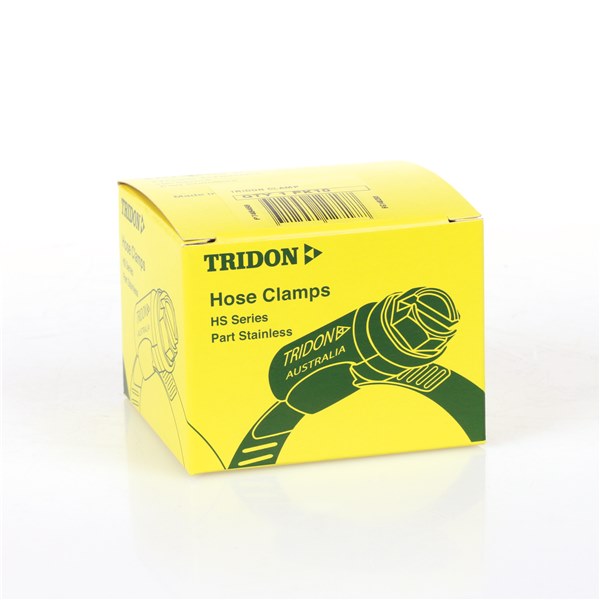

MH016P
