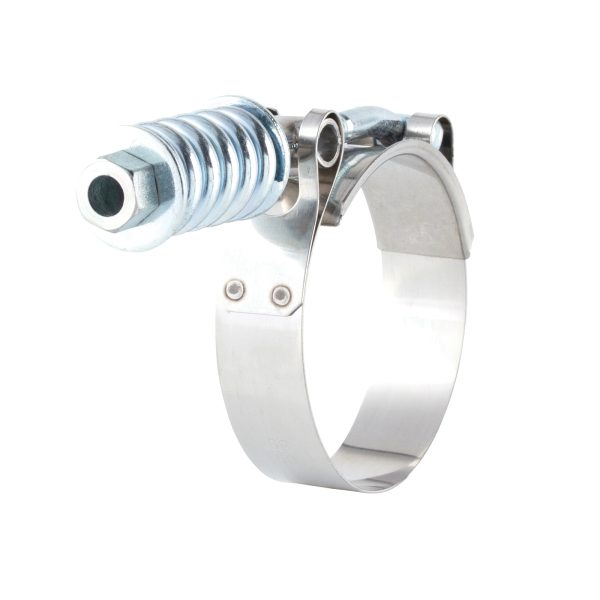

Tridon Spring T-Bolt Clamp - Part Stainless 159mm - 167mm
TTBX159-167P

Images are for illustrative purposes only. Actual product may vary.

Tridon

Tridon Spring T-Bolt Clamp – Part Stainless 159mm – 167mm

Part Number: TTBX159-167P

Tridon Spring T-Bolt Clamp – Part Stainless. 159mm – 167mm. Each.

Qty:
  • Band bridge and trunnions 304 stainless steel.
  • Bolt and nut assembly with collar and trunnion for even tensioning.
  • Bolt nut spring washers and collar carbon steel zinc plated.
  • Clamping range 159mm - 167mm
  • Manufactured by Tridon
  • Part stainless steel - stainless band with zinc plated screw
  • Sold individually
  • Spring T-Bolt Clamp - TTBX Series - Spring T-Bolt Part Stainless
  • Wide high strength band with smooth edges to prevent hose damage.
Brand

Tridon
Product Type

Spring T-Bolt Clamp
Series

TTBX Series – Spring T-Bolt Part Stainless
Clamping Range

159mm – 167mm
Minimum Diameter

159mm
Maximum Diameter

167mm
Fits Diameter

159mm – 167mm
Band Width

19mm
Material

Part stainless steel – stainless band with zinc plated screw
Pack Quantity

1
Pack Type

Multi pack
Cross Reference Tridon: TTBX159-167P | Part Number: TTBX159-167P | Barcode: 9312550227327
Features & Benefits Band bridge and trunnions 304 stainless steel.
Bolt and nut assembly with collar and trunnion for even tensioning.
Bolt nut spring washers and collar carbon steel zinc plated.
Clamping range 159mm - 167mm
Manufactured by Tridon
Part stainless steel - stainless band with zinc plated screw
Sold individually
Spring T-Bolt Clamp - TTBX Series - Spring T-Bolt Part Stainless
Wide high strength band with smooth edges to prevent hose damage.

Tridon Spring T-Bolt Clamp – Part Stainless – 159mm – 167mm from the TTBX Series – Spring T-Bolt Part Stainless – supplied as each.

The Tridon TTBX Series is engineered for applications demanding substantial clamping force. It features a spring loaded screw design for even pressure distribution and constant tension in fluctuating temperatures.

Specifications

  • Clamping range: 159mm – 167mm
  • Material: Part stainless steel – stainless band with zinc plated screw
  • Pack quantity: 1
  • Pack type: Multi pack
  • Part number: TTBX159-167P
  • Barcode: 9312550227327

Series detail

Band, bridge and trunnions 304 stainless steel. Bolt, nut, spring, washers and collar carbon steel zinc plated. Wide, high strength band with smooth edges to prevent hose damage. Bolt and nut assembly with collar and trunnion for even tensioning. Extra solid with four welds per band on larger sizes.

Manufactured by Tridon Australia.
